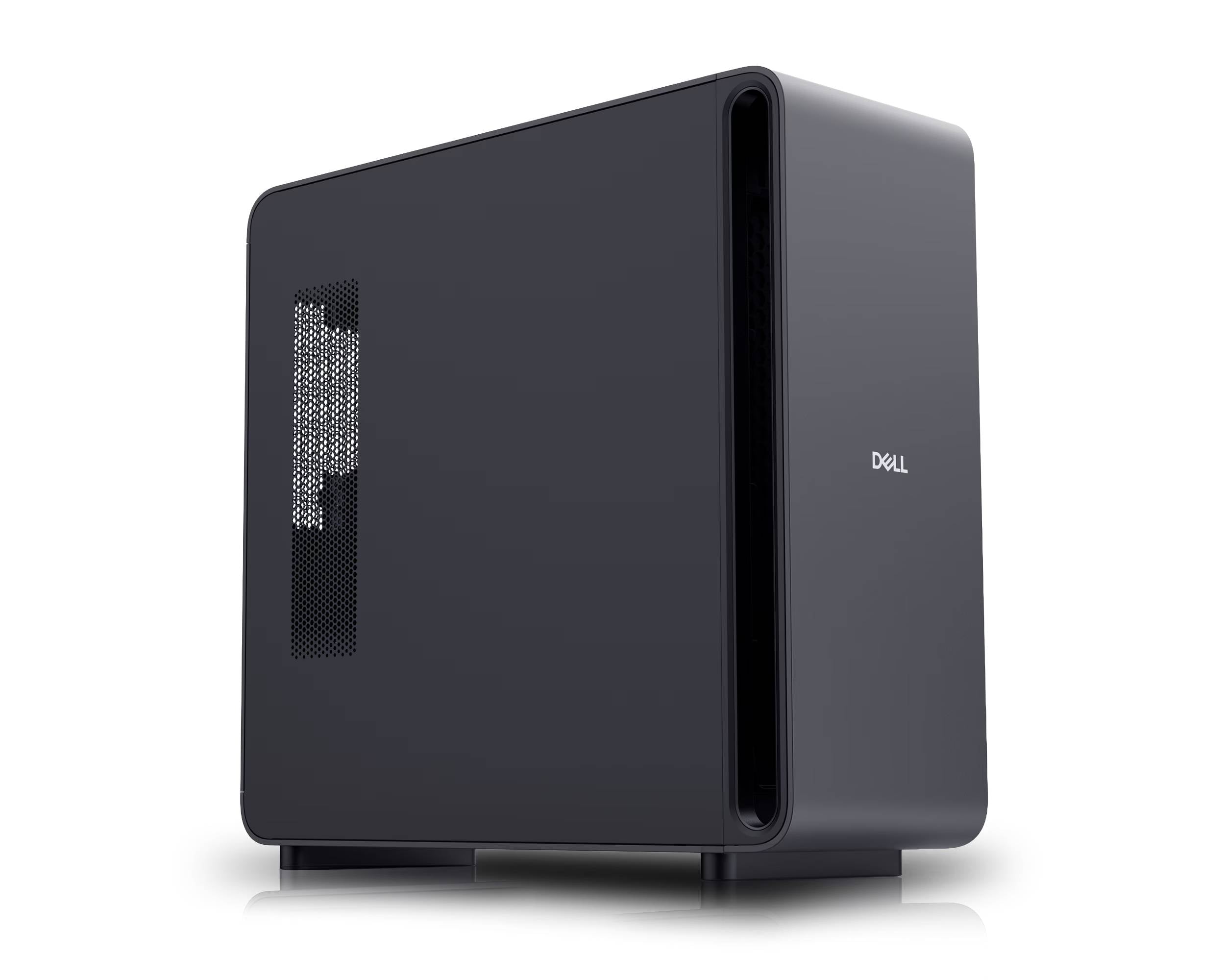

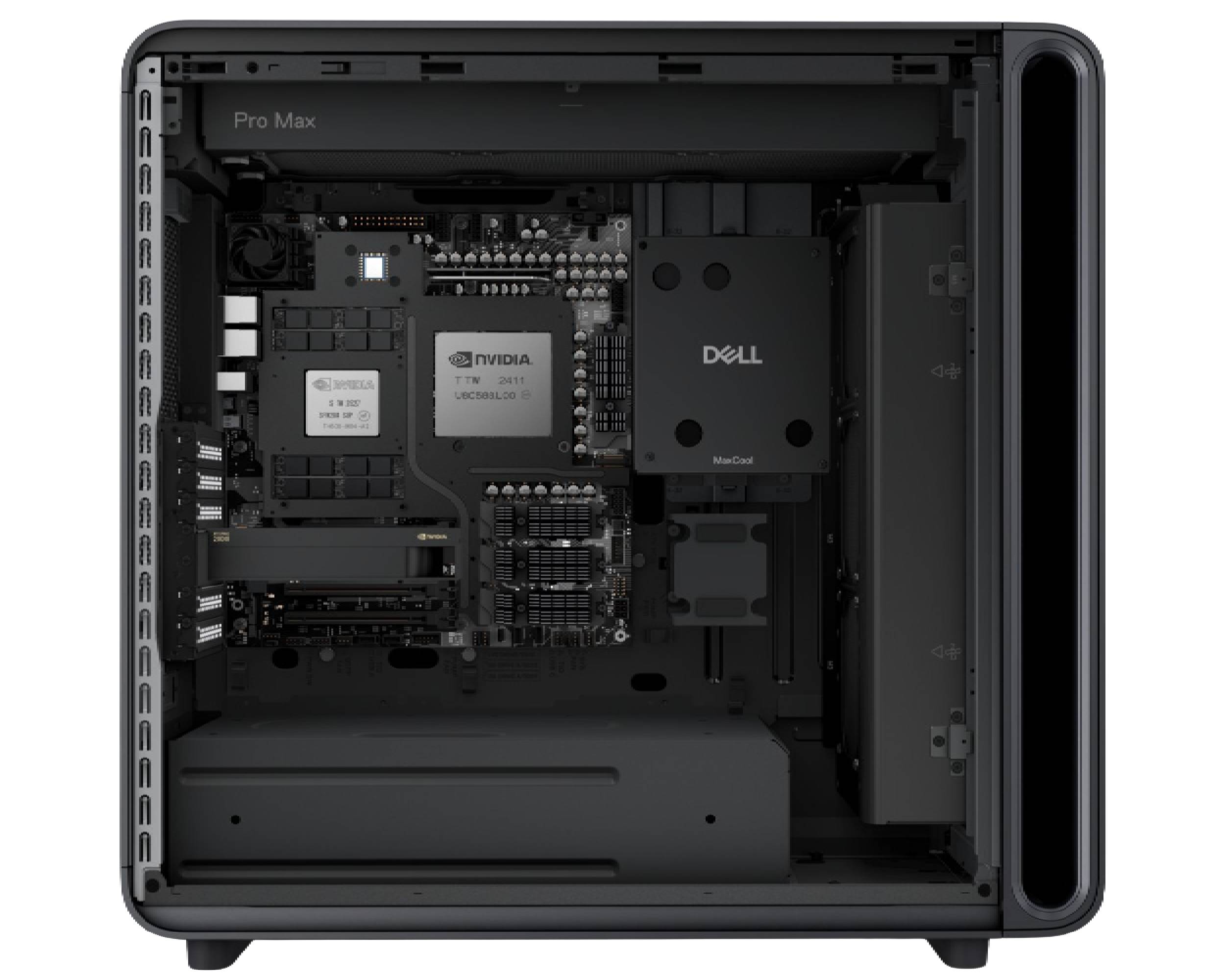

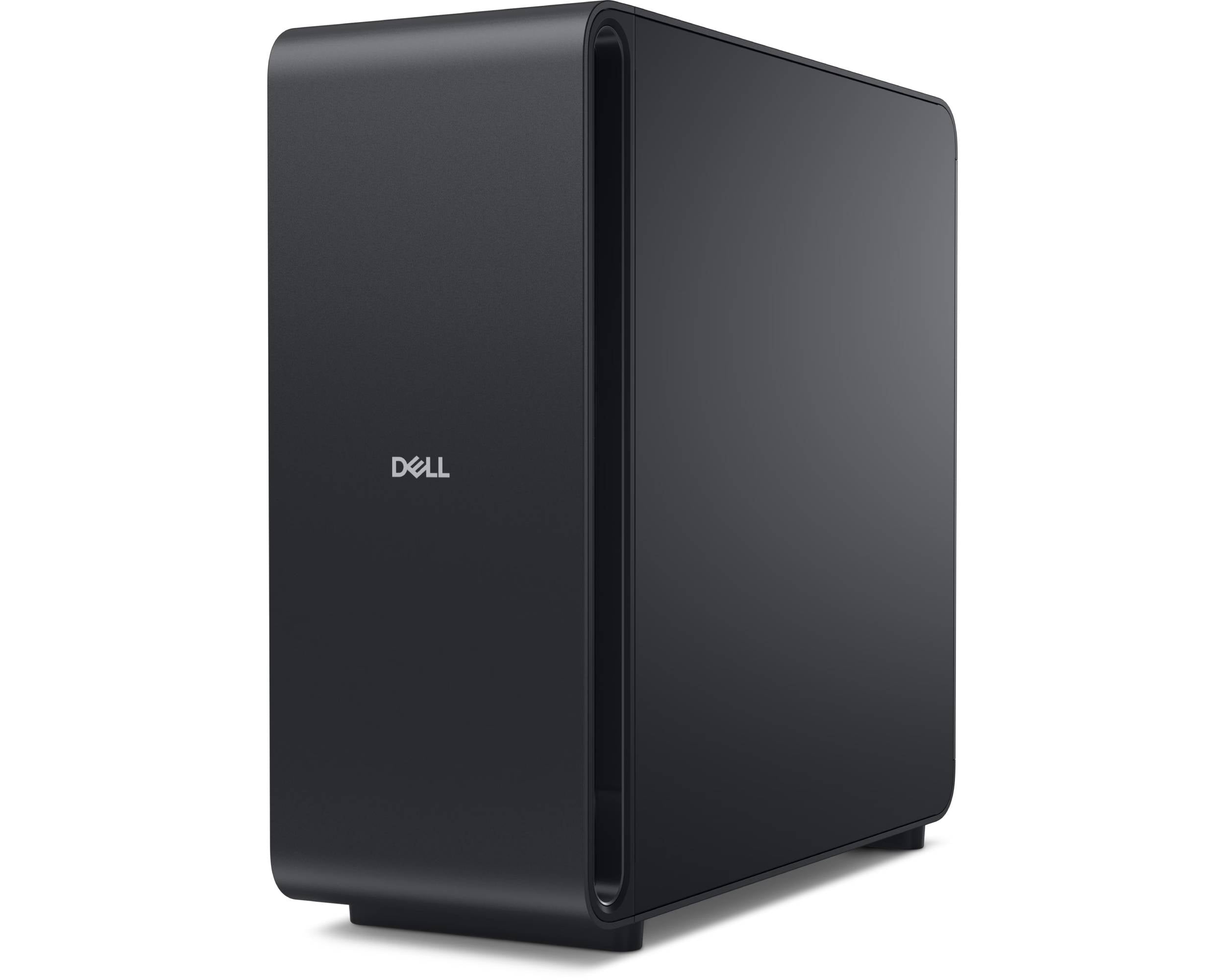

Dell Pro Max with GB300 FCT6263 (NVIDIA DGX Station GB300)

Product features

CPU & GPU

• Processor: 1x NVIDIA Grace ™ 72-core Neoverse V2 CPU (ARM-based) - 270W, up to 3 GHz
• GPU: 1x NVIDIA Blackwell Ultra GPU
• MIG: Multi-instance GPU for up to 7 MIGs

Dedicated GPU

• 1x NVIDIA RTX Pro 2000 Blackwell GPU for graphics rendering
• 4x mini DisplayPort outputs
• 16GB GDDR7
• PCIe 5
• 75W power consumption

RAM

• total coherent memory: 748GB, linked via NVLink ®-C2C, at 900 GB/s interconnect bandwidth
• CPU memory: 496GB ECC LPDDR5X, 396 GB/s memory bandwidth (SOCAMM, 6400 MT/s)
• GPU memory: 252GB ECC HBM3e, 7.1 TB/s memory bandwidth

Networking

• Dual-port QSFP112 400GbE LAN via NVIDIA ConnectX-8 SuperNIC (= 800 Gbit/s bandwidth total)
• 1x RJ45 1GbE Dedicated BMC LAN port
• 1x RJ45 10GbE LAN port

Storage

• 4x M.2 PCIe 4.0 x4 NVMe (M-key 2280), up to 64 Gbps
• populated with 4x 4TB Gen4 SSDs, SED ready - configurable (up to 4 TB each)

PCIe Slots

• 1x PCIe Gen 5 x16 FHFL double-width, for GPUs
• 2x PCIe Gen 5 x8 (in x16) FHHL
• 1x M.2 PCIe 2.0 x1 slot (E-Key 2230))

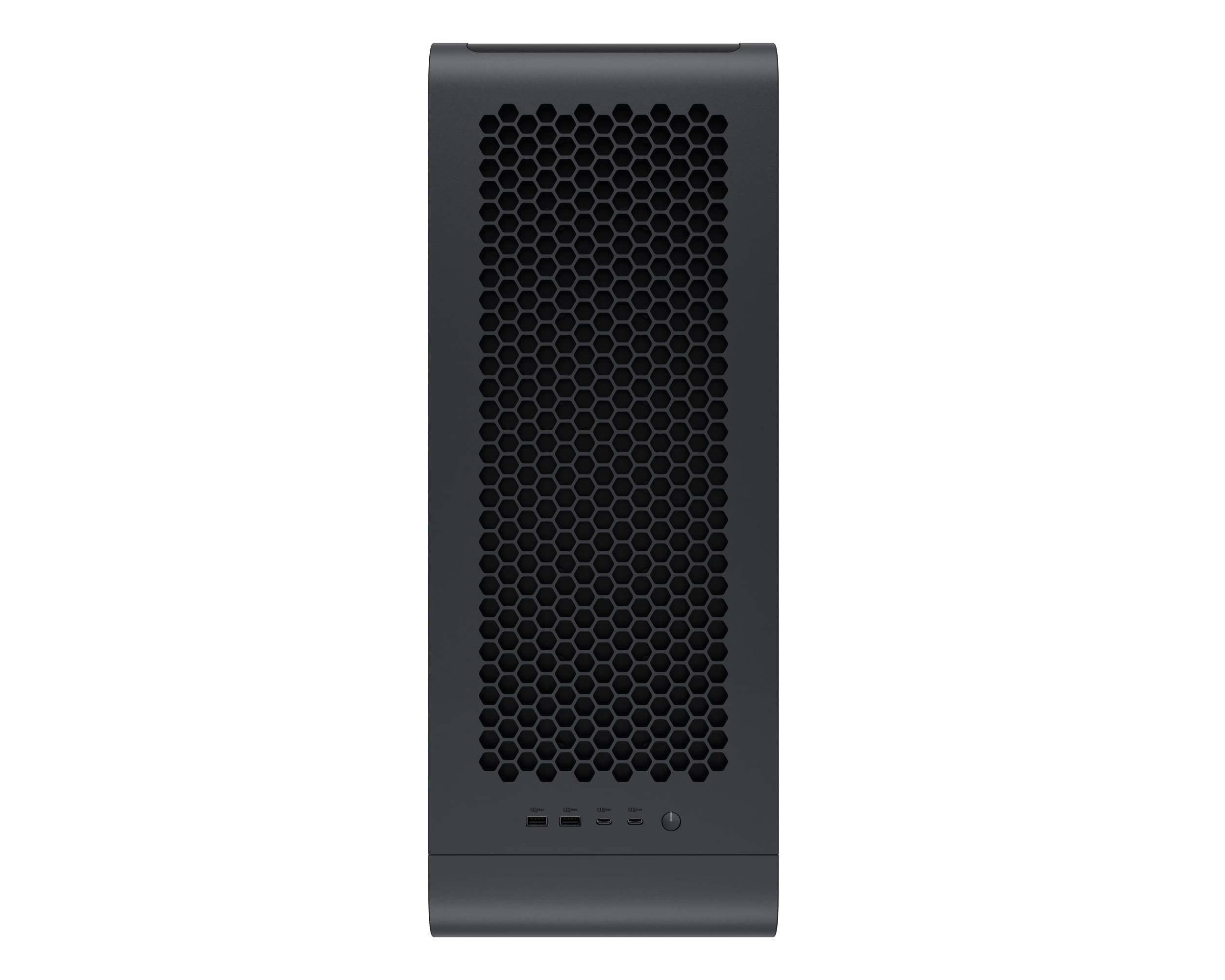

Top IO Ports and Connectors

• 2x USB 3.2 Gen2 port (Type-C, 10 Gbps)
• 2x USB 3.2 Gen1 ports (Type-A, 10 Gbps)
• 1x power button

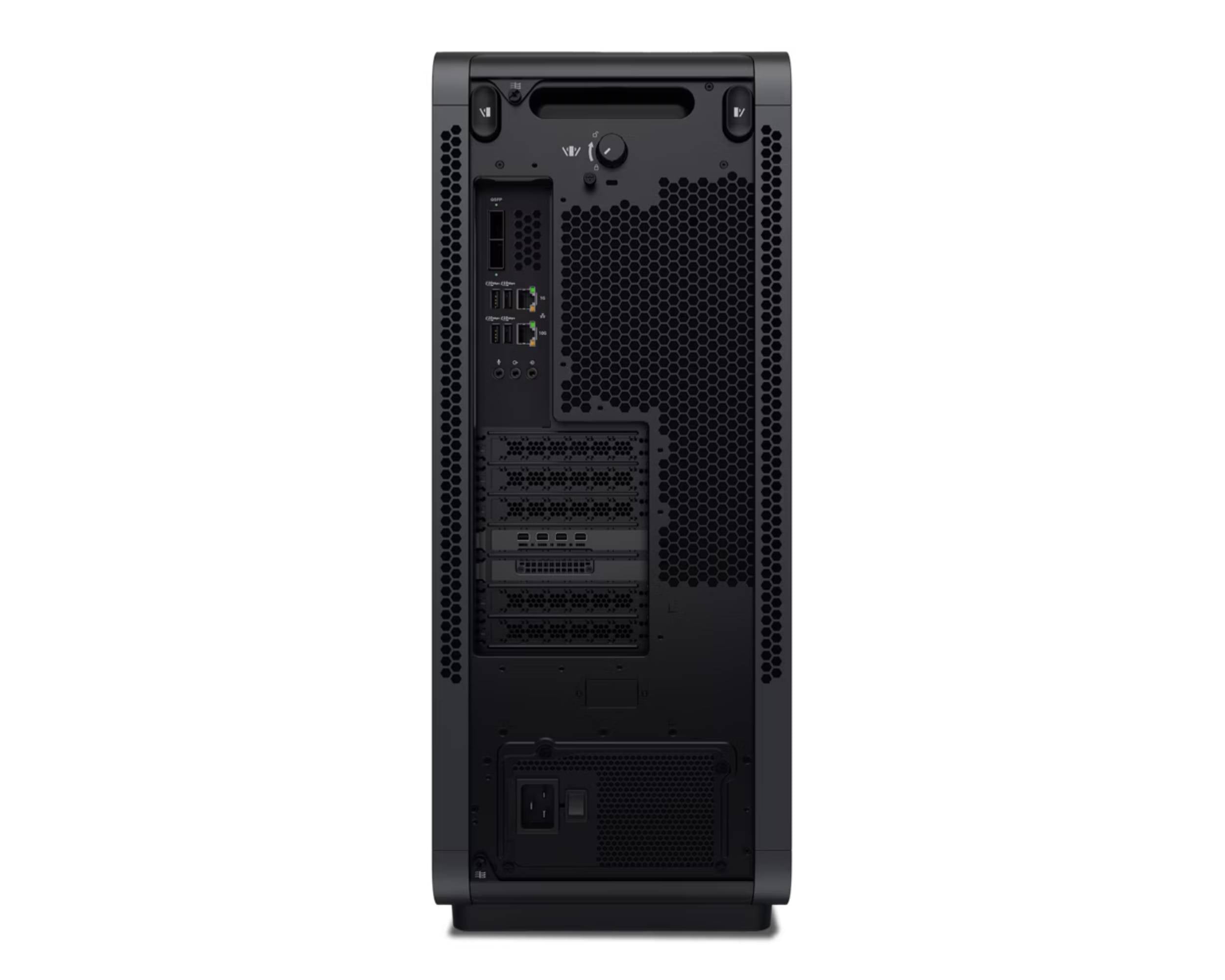

Rear IO Ports and Connectors

• 4x USB 3.2 Gen2 ports (Type-A, 10 Gbit/s)
• 4x mini-DP (supported through discrete GPU)
• 2x QSFP112 (400 Gbps) ports
• 1x RJ45 port 10 Gbit/s Ethernet (AQC113)
• 1x RJ45 management port 1 Gbit/s Ethernet (AQC113)
• 1 x audio input / microphone - 3.5 mm, 2 stack
• 1x line-in audio port - 3.5 mm, 2 stack
• 1x line-out audio port - 3.5 mm, 2 stack
• Kensington security-cable slot (Kensington Lock)

OS & security

• OS: Ubuntu 24.04 LTS with NVIDIA AI Developer Tools
• pre-installed with essential CUDA-X™ libraries
• Trusted Platform Module (TPM) 2.0 discrete
• FIPS 140-2 certification for TPM
• FIPS 140-3 certification for TPM
• TCG certification for TPM (Trusted Computing Group)
• 1x Kensington security-cable slot

IT manageability and enterprise features

• out-of-band telemetry via BMC
• Redfish API support
• NVIDIA Data Center GPU Manager
• visibility, monitoring, remote management capabilities
• hardware root of trust
• enterprise secure boot

Dimensions, weight, form factor

• Form factor: desktop tower
• height: 569 mm / 22.40 inch
• width: 231.6 mm / 9.12 inch
• depth: 610.50 mm / 24.04 inch
• weight: starting at 38,89 kg (85.75 lb), depends on configuration

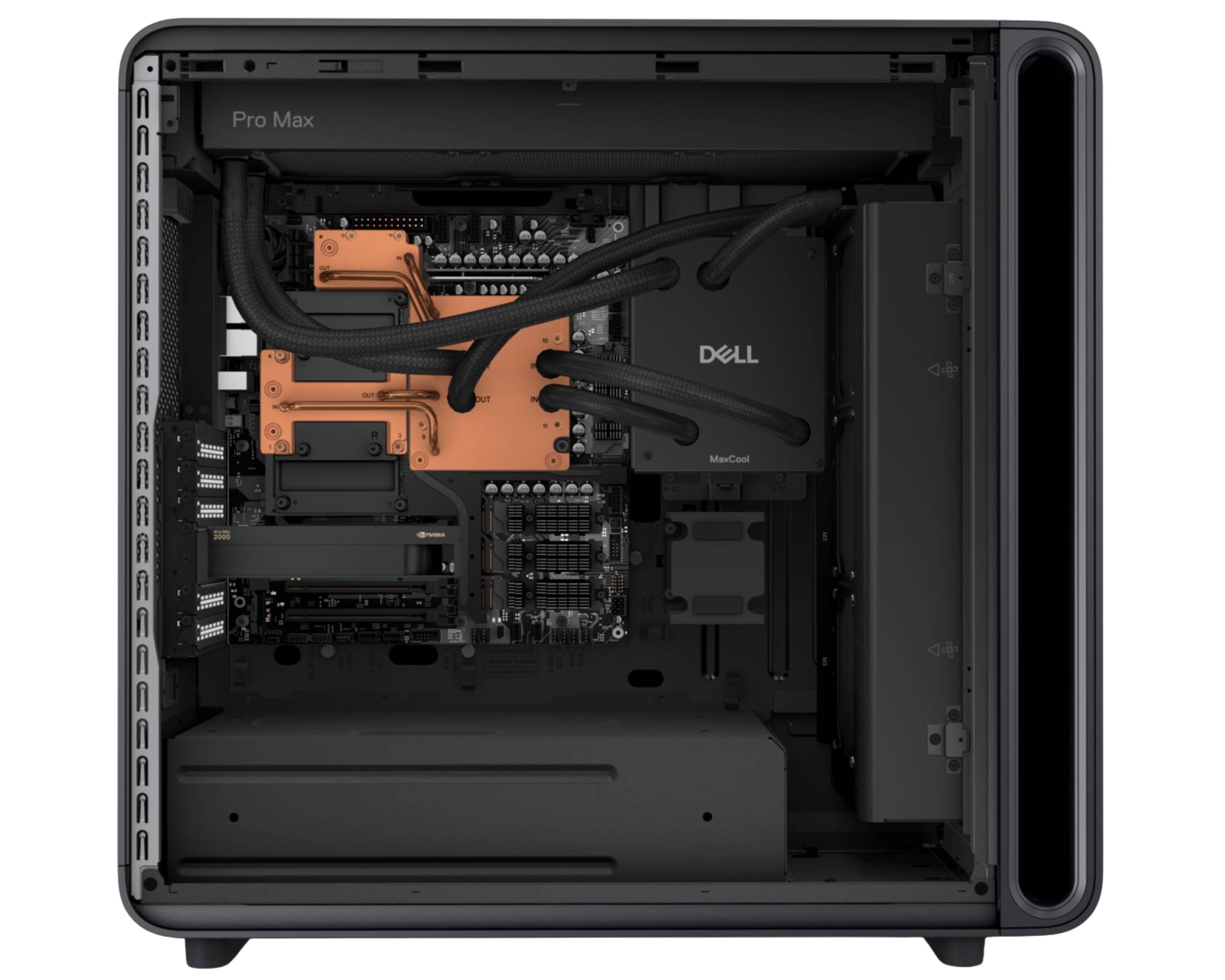

System cooling

• cooling system: closed-loop liquid cooling (suitable for office use)
• Dell MaxCool technology with smart cold plate design and dual heat exchangers
• redundant pump system
• quieter, more reliable performance to sustain peak power without thermal throttling

Power supply

• power supply: 1x 1600W Titanium power supply, 90 - 264VAC, 47Hz - 63Hz

• C19 inlet
• max input current
  • 15 A @ 100 VAC, 1300W
  • 16 A @ 115 VAC, 1600W
  • 8 A @ 240 VAC, 1600W
• 12V total output power: 1600W, 131.15A
• 5V/3.3V maximum combined power: 135W

Misc

• Audio: Realtek® ALC4080 Audio Codec
• main chassis: Dell standard black powder-coated metal
• Left and right door: Magnetite painted metal

• Top, front, and bottom cover: Magnetite painted resin
• no wireless connection
• operating temperature: 0°C to 50°C (32°F -122°F)
• storage temperature: -40°C to 70°C (-40°F to 158°F)
• operating relative humidity: 20% - 80% (non-condensing)
• storage relative humidity: 5% - 95% (non-condensing)
• Vibration (maximum): 0.52 GRMS operating 2.0 GRMS storage
• Shock (maximum) 40 G operating, 105 G storage
• altitude range operating: -15.2m - 3048 m (-49.87ft - 10.000 ft)
• altitude range storage: -15.2m - 10.668m (-49.87ft - 35.000 ft)

• ENV0424 compliant

• Airborne contaminant level: G1 as defined by ISA-S71.04-1985

packing content:

• 1 x Dell Pro Max with GB300 (FCT6263) AI Supercomputer (NVIDIA DGX Station GB300)


AI performance

• FP4 Tensor core: 20 PFLOPS / 15 PFLOPS without sparsity
• FP8 / FP6 Tensor core: 10 PFLOPS
• Int8 Tensor Core: 330 TOPS
• FP16/BF16 Tensor Core: 5 PFLOPS
• TF32 Tensor Core: 2.5 PFLOPS
• FP32: 80 TFLOPS
• FP64 / FP64 Tensor Core: 1.3 TFLOPS

Product description

The Dell Pro Max with GB300 (FCT6263) AI Supercomputer is an NVIDIA DGX Station based on the GB300 Grace™ Blackwell superchip. It can be used for running local AI applications for development and production purposes.

Example AI applications include LLM inference for frontier models of up to 1 Trillion parameters, scientific workloads (e.g. BioNeMo), finetuning models, hosting AI agents, and running RAGs for AI-enhanced document workflows. In particular it is well-suited to run MoE (mixture of experts) models.

Thanks to its MIG feature and its massive memory throughput it can be run headless to support several colleagues in a local workgroup.

Compared to server systems, or heavy multi-GPU systems, it runs cooler and quieter, and is uniquely suited for office use. Its server-grade management features, such as the integrated BMC, the Redfish API support, and enterprise secure boot allow to integrate it into a corporate IT management landscape.

Two Dell Pro Max with GB300 FCT6263 DGX Stations can be joined using the Dual-port QSFP112 400GbE LAN to serve even bigger models, increase precision, or general model performance.

A separately obtainable NVIDIA AI Enterprise software license provides a suite of software tools, libraries, and frameworks to fast-track your AI deployment on the Dell Pro Max with GB300.

Dell support service levels

Dell offers a variety of support service levels

• 1Y Basic Hardware Service with onsite service after remote diagnosis

• 2Y Basic Hardware Service with onsite service after remote diagnosis

• 3Y Basic Hardware Service with onsite service after remote diagnosis

• 1Y ProSupport with Next Business Day Onsite Service

• 2Y ProSupport with Next Business Day Onsite Service

• 3Y ProSupport with Next Business Day Onsite Service

• 1Y ProSupport Plus for Client with Next Business Day Onsite Service

• 2Y ProSupport Plus for Client with Next Business Day Onsite Service

• 3Y ProSupport Plus for Client with Next Business Day Onsite Service

• 1Y Keep Your Hard Drive

• 2Y Keep Your Hard Drive

• 3Y Keep Your Hard Drive

Datasheets, manuals and additional downloads

• Dell Pro Max with GB300 FCT6263 setup and specificatons (PDF)
• Dell Pro Max with GB300 FCT6263 Service Manual (PDF)
• DELL Pro Max with GB300 FCT6263 support page
• DELL Pro Max with GB300 Ubuntu 24.04 LTS with NVIDIA AI Developer Tools recovery ISO image (9.62 GB)

Lead time & purchase

This product is available on pre-order with a current lead time of about 4-12 weeks. Contact us to purchase it.

Additional SKUs and codes

• model number: FCT6263
