Description

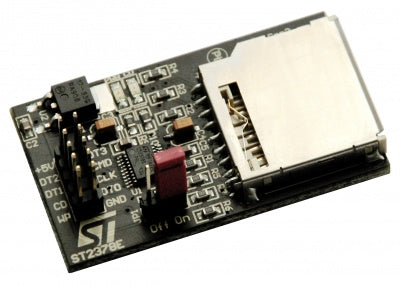

KAmodMMC Module allows easy and safe MMC and SD memory card connection to any digital system. It is equipped with bi-directional voltage level translation (3.3V 5V).
Technical Details
- SD and MMC card socket
- Supply voltage: 5V
- On-board 3.3V voltage regulator for SD/MMC cards supply
- On-board voltage level translator
- Maximum data rate: 13 Mbps
- Supply voltage LED indicator
- Card insertion LED indicator
- Jumper for signal lines disconnection
