Description

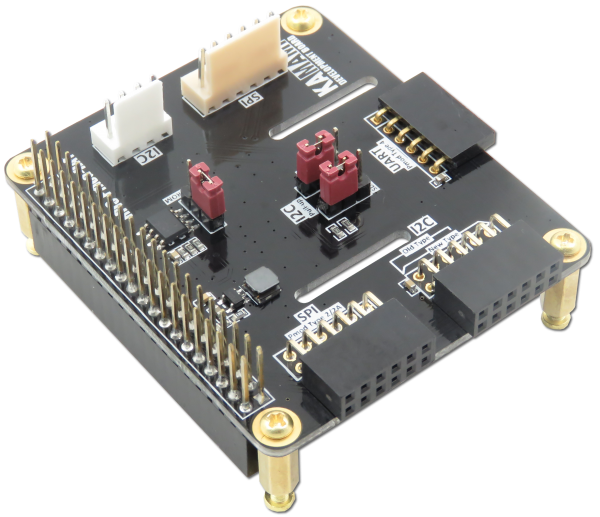

KAmodRPi-Pmod-HAT is a HAT for Raspberry Pi 4B/3B+/3B/2B/B+ minicomputers that allows use of the communication interfaces available on the 40-pin minicomputer connector. The overlay provides connectors in the Pmod standard and in the KAMAMI standard for I2C, SPI and UART interfaces. The expander has an ID EEPROM memory and jumpers enabling the I2C line to be pulled to a positive power line.
Technical Details
- Expansion module for Raspberry Pi 4B, 3B+ minicomputers
- Embedded ID-EEPROM memory
- Connectors for I2C, SPI and UART interfaces
- Pmod connectors
- KAMAMI connectors
- 40-pin through connector compatible with the Raspberry Pi standard
- Embedded jumpers enabling pull-up on I2C bus lines
- Mounting holes with a diameter of 2.5 mm
- Dimensions: 65 x 56 x 10 mm
Kit contains
- KAmodRPi-Pmod-HAT module
- Four spacers with a set of screws for mounting
