Dieses CM4IO Board ist ein Breakout Board um die Entwicklung von auf dem Compute Module 4 basierenden eigenen Hardware Carrierboards deutlich zu beschleunigen. In manchen Fällen kann es sogar als Lösung eingesetzt werden, um bestimmte Funktionen auf der Raspberry Pi Plattform zu ermöglichen, zum Beispiel direktes Einstecken einer PCI Express Karte.

Dieses Board verfügt über folgende Features:

• Standard 40 Pin GPIO Header
• 2 x HDMI Steckverbinder (normale Größe)
• 2 x MIPI DSI Display FPC Steckverbinder
• 2 x MIPI CSI-2 camera FPC Steckverbinder
• 2 x USB 2.0 Steckverbinder
• Gigabit Ethernet Buchse mit PoE Unterstützung (benötigt PoE HAT)
• PCI Gen 2 x1 Socket
• microSD Slot (zur Verwendung mit Compute Module 4 Lite Varianten)
• Batteriegestützte Echtzeituhr
• 12 V Eingangsspannung (erfordert separates Netzteil)
• 5 V Betrieb über Header möglich

Durch direkten Zugriff auf die PCI Express Schnittstelle hat dieses Board keine USB 3.0 Schnittstellen - diese könnten aber bspw. durch Stecken einer Erweiterungskarte in den PCI Express Port nachgerüstet werden.

English Description

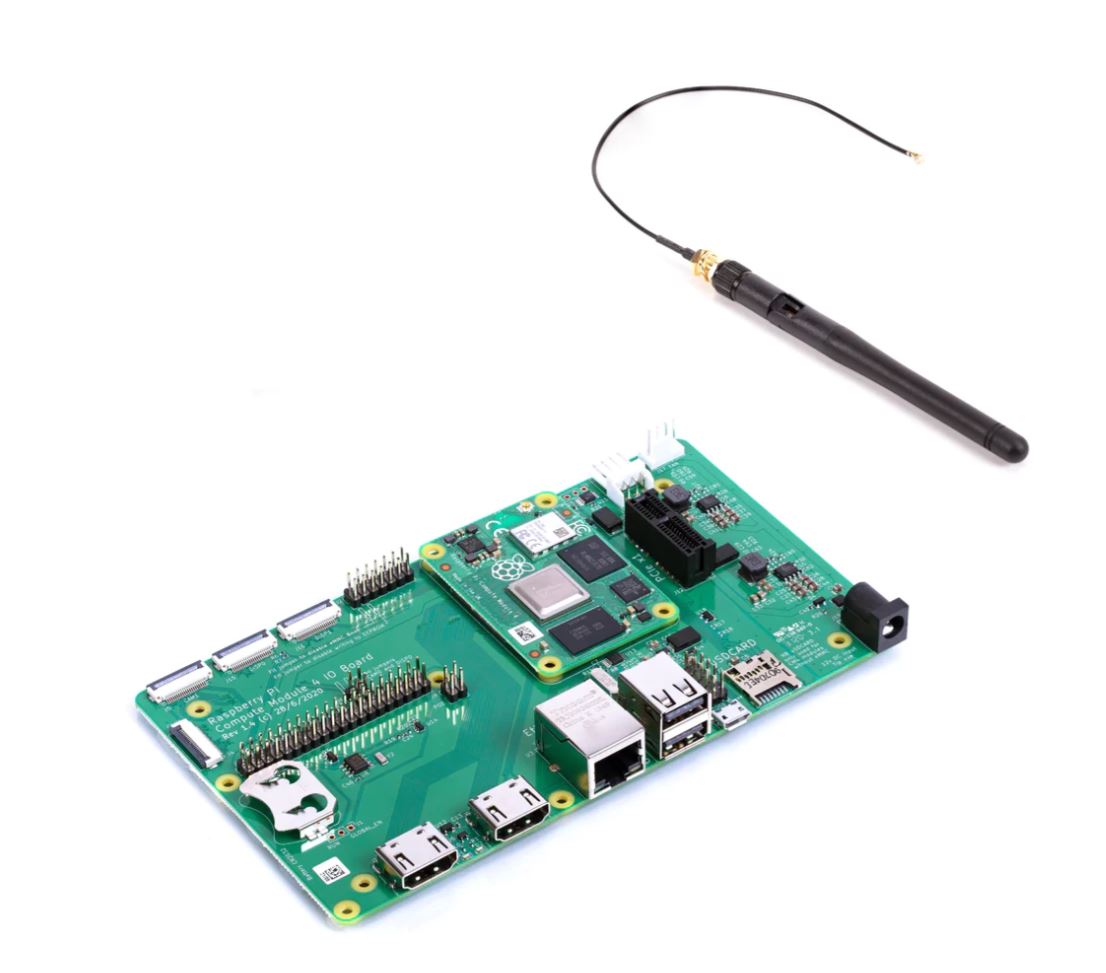

You can customize your Compute Module starter kit here. Need the board and antenna? No problem, just choose the set you need.

The CM4IO Board is a breakout board designed to significantly speed up the development of custom hardware carrier boards based on the Compute Module 4. In some cases, it can even be used as a direct solution for enabling specific functions on the Raspberry Pi platform, such as directly plugging in a PCI Express card.

This board offers the following features:

• Standard 40 Pin GPIO Header
• 2 x HDMI connectors (full-size)
• 2 x MIPI DSI display FPC connectors
• 2 x MIPI CSI-2 camera FPC connectors
• 2 x USB 2.0 connectors
• Gigabit Ethernet jack with PoE support (requires PoE HAT)
• PCI Gen 2 x1 socket
• microSD slot (for Compute Module 4 Lite variants)
• Battery-backed real-time clock
• 12 V input power (requires separate power supply)
• 5 V operation via header is possible

Due to direct access to the PCI Express interface, this board does not include USB 3.0 interfaces. However, these can be added by inserting an expansion card into the PCI Express port.

Raspberry Pi SKU: SC0326

Description Antenna Set

The Compute Module 4 has an onboard PCB antenna in the wireless variants, as well as a U.FL connector for optionally attaching an external antenna.

The antenna set offered by Raspberry Pi includes:

• An antenna pre-certified for use with the Compute Module CM4 (saves costs and speeds up time-to-market!)
• A bulkhead fixture
• An adapter cable to U.FL connector

Note: We also offer U.FL modifications for the Pi Zero W for our industrial customers. Contact us if interested!

Description Compute Module 4 - CM4108032

The CM4IO Board is a breakout board designed to significantly speed up the development of custom hardware carrier boards based on the Compute Module 4. In some cases, it can even be used as a direct solution for enabling specific functions on the Raspberry Pi platform, such as directly plugging in a PCI Express card.

This board offers the following features:

• Standard 40 Pin GPIO Header
• 2 x HDMI connectors (full-size)
• 2 x MIPI DSI display FPC connectors
• 2 x MIPI CSI-2 camera FPC connectors
• 2 x USB 2.0 connectors
• Gigabit Ethernet jack with PoE support (requires PoE HAT)
• PCI Gen 2 x1 socket
• microSD slot (for Compute Module 4 Lite variants)
• Battery-backed real-time clock
• 12 V input power (requires separate power supply)
• 5 V operation via header is possible

Due to direct access to the PCI Express interface, this board does not include USB 3.0 interfaces. However, these can be added by inserting an expansion card into the PCI Express port.
