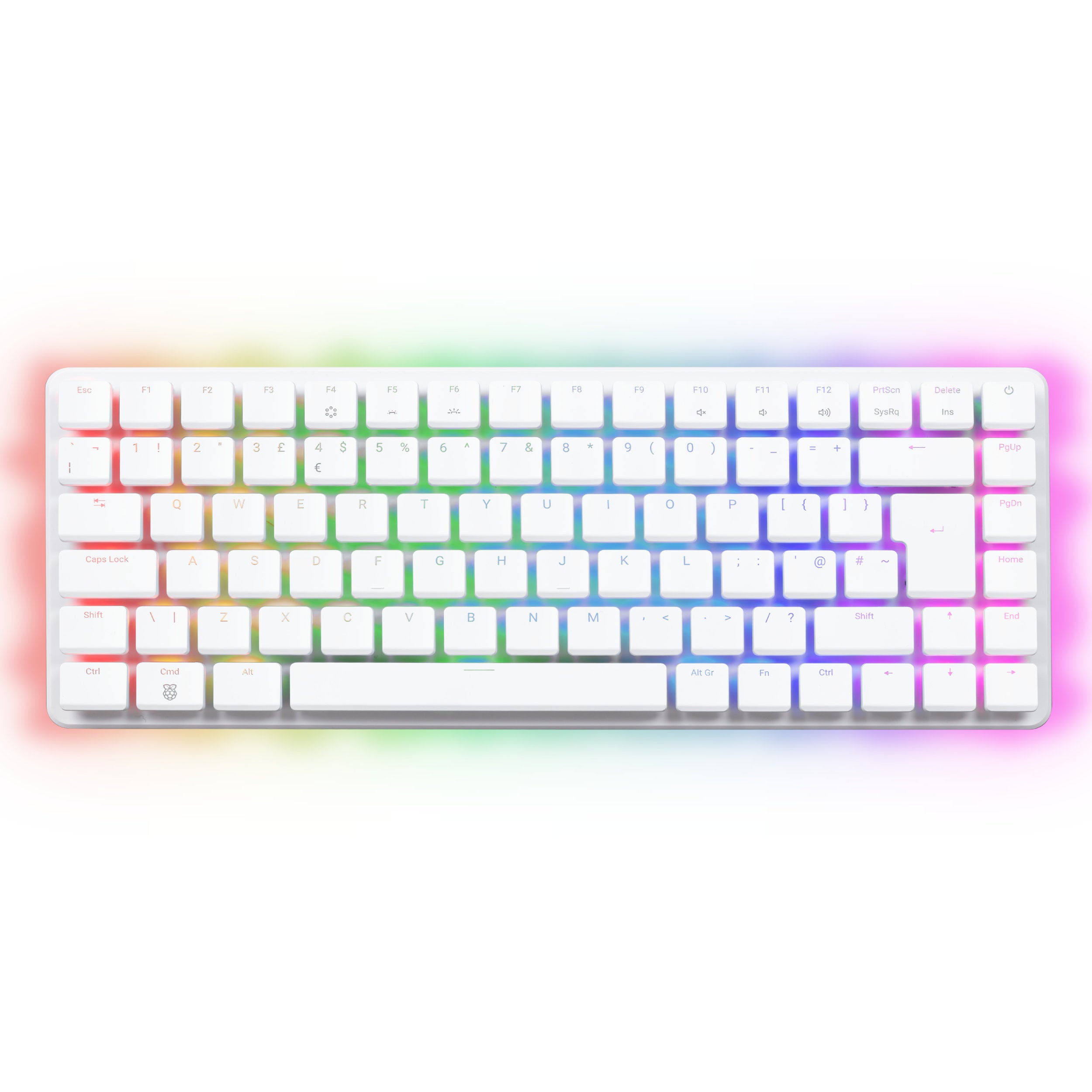

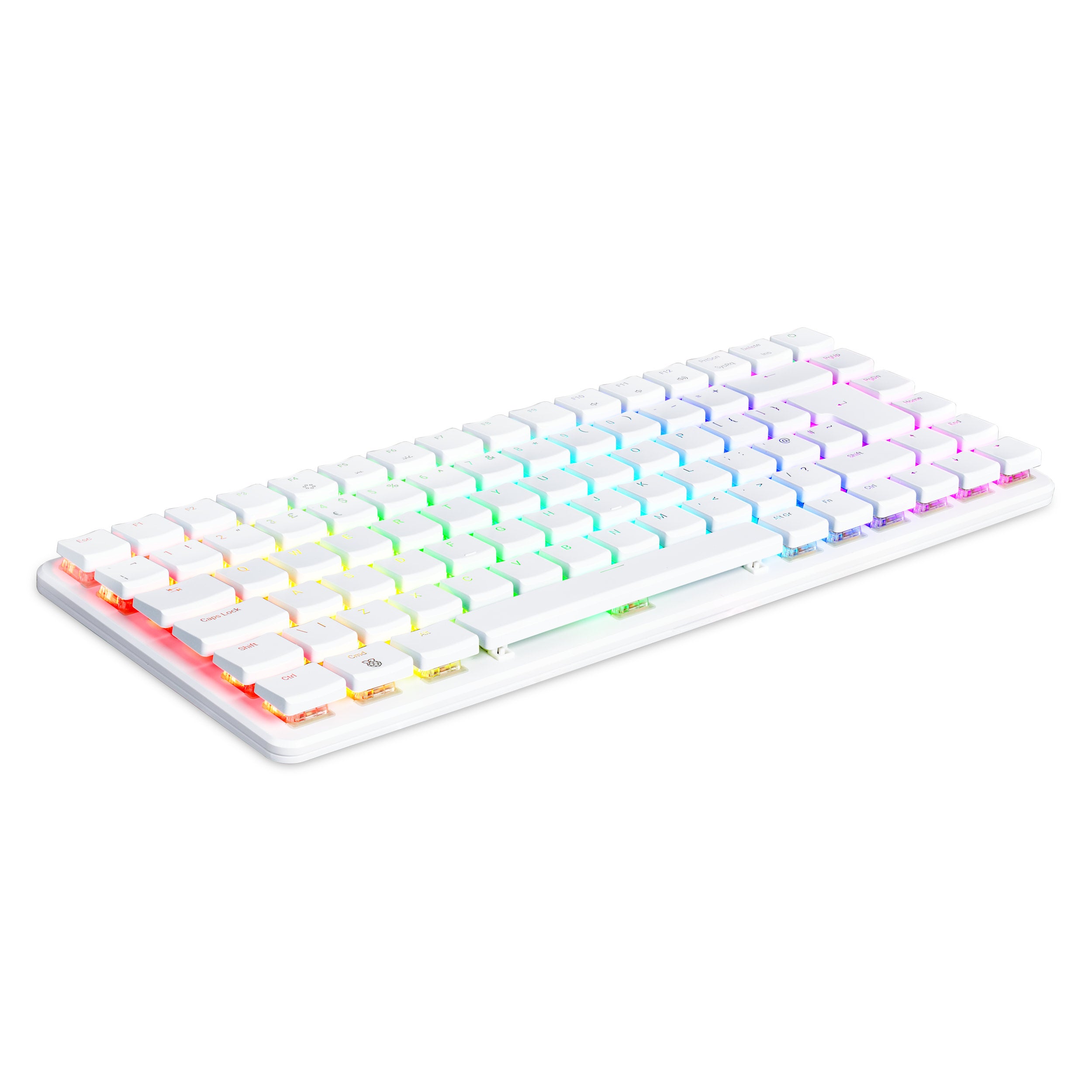

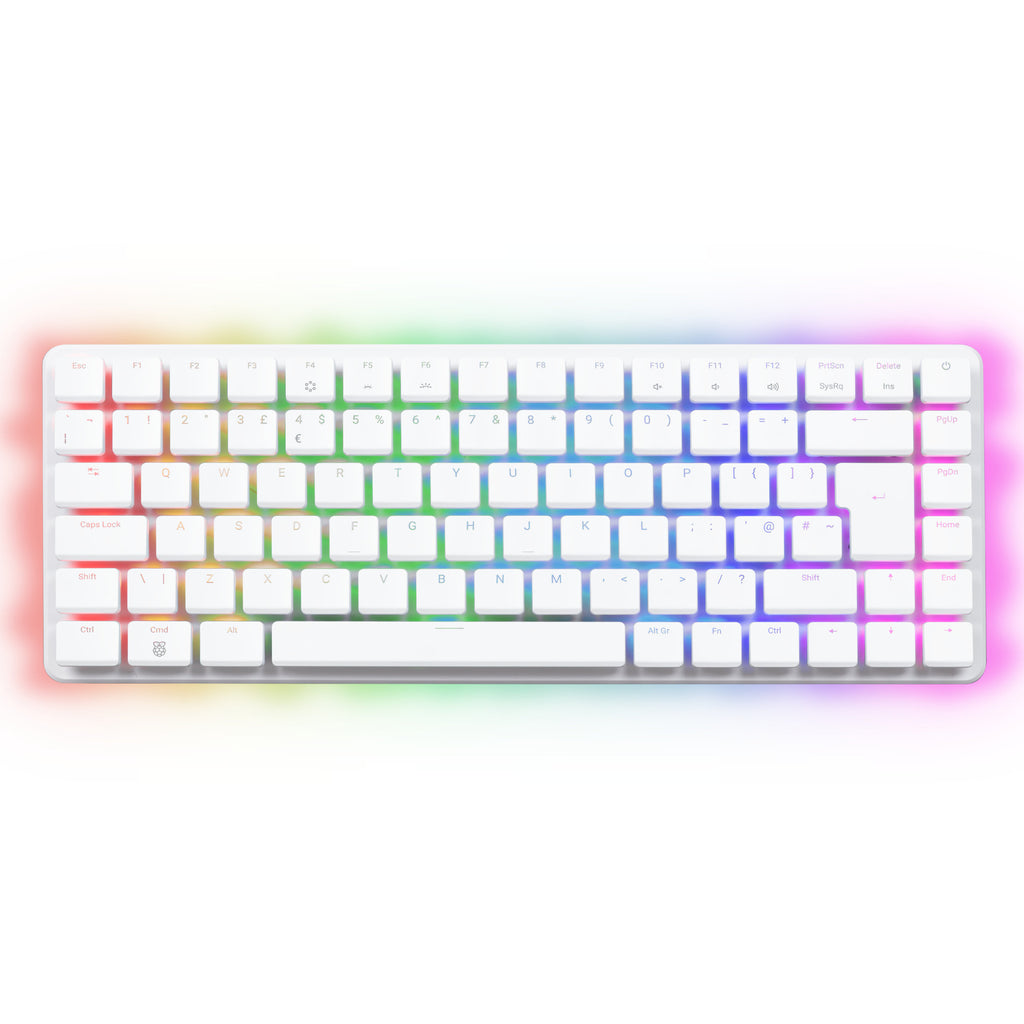

Raspberry Pi 500+ – powerful keyboard PC with mechanical RGB keyboard
The Raspberry Pi 500+ combines the compactness of a keyboard PC with modern performance and high-quality components. Based on the Raspberry Pi 5, it integrates a mechanical keyboard with individually addressable RGB lighting for the first time, combined with 16 GB of LPDDR4X RAM and a pre-installed 256 GB SSD. This makes the 500+ ideal as a ready-to-use desktop replacement, especially for educational institutions, office environments, or embedded applications where compact, powerful clients are required.
Compared to its predecessor, the Raspberry Pi 500, the Plus version offers significant improvements: more powerful hardware, interchangeable keycaps, and a full-size SSD slot with NVMe speed without the need to connect external components.
-
Individually addressable RGB LEDs
-
Interchangeable keycaps
-
16 GB RAM instead of 8 GB
-
A 256 GB SSD pre-installed with the latest version of Raspberry Pi OS
- The Raspberry Pi 500+ is expected to ship from the end of October.
Product variants
The Raspberry Pi 500+ is available in two main variants:
-
Unit-Only : Includes the device with a pre-installed 256GB SSD, but without a power adapter, mouse, or HDMI cable.
-
Desktop Kit : In addition to the main unit, it includes an EU USB-C power adapter, a USB mouse, a micro HDMI to standard HDMI cable, and a beginner's guide.
The difference lies in the scope of delivery – functionally, the core system remains identical.
Technical data
| feature | specification |
|---|---|
| processor | Quad-core ARM Cortex-A76 @ 2.4 GHz (64-bit) |
| GPU | VideoCore VII |
| RAM | 16 GB LPDDR4X-4267 |
| memory | 256 GB NVMe SSD (M.2), pre-installed |
| Micro SD slot | Yes, compatible with SDR104 & Command Queuing |
| network | Gigabit Ethernet |
| Wireless | Dual band WiFi (802.11ac), Bluetooth 5.0 / BLE |

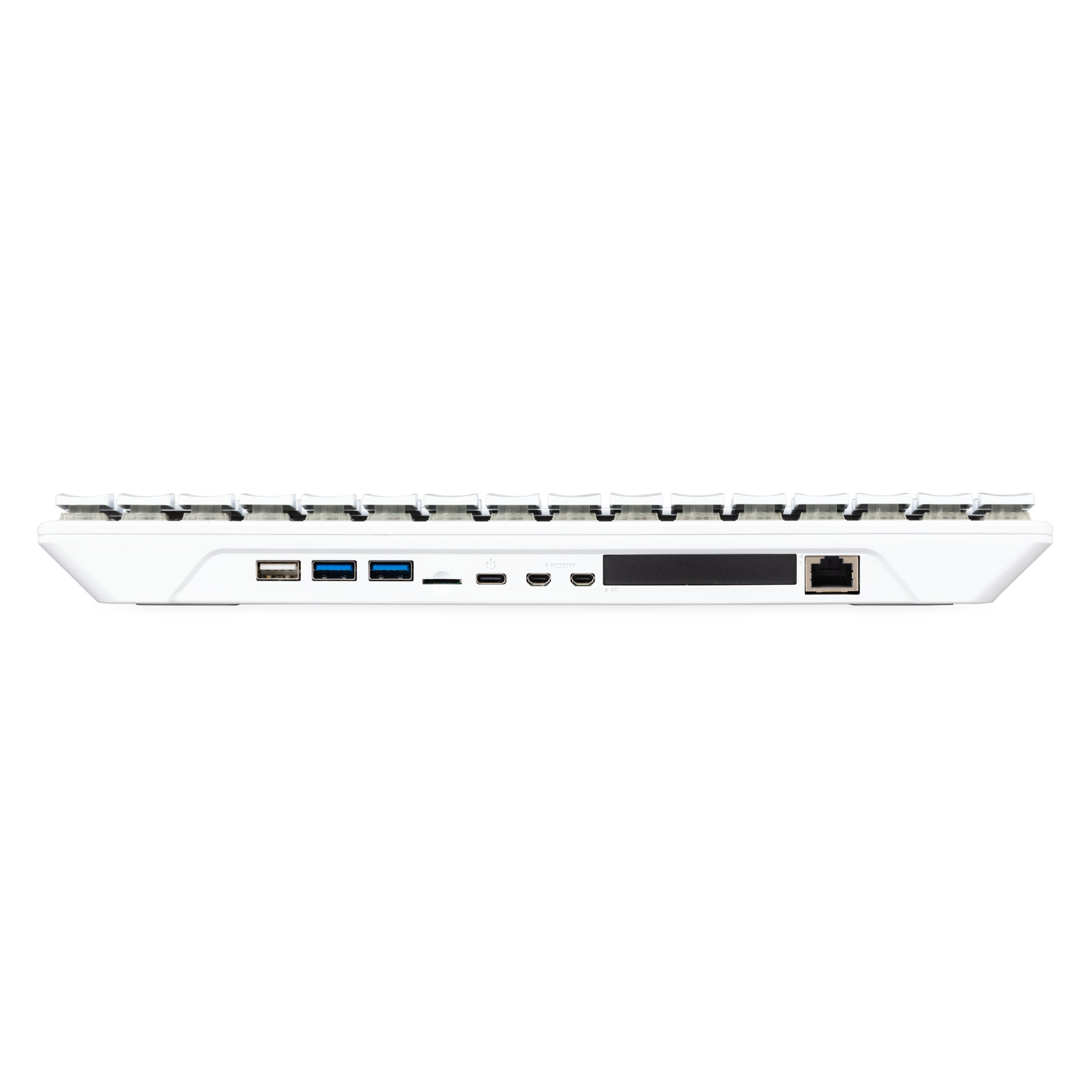

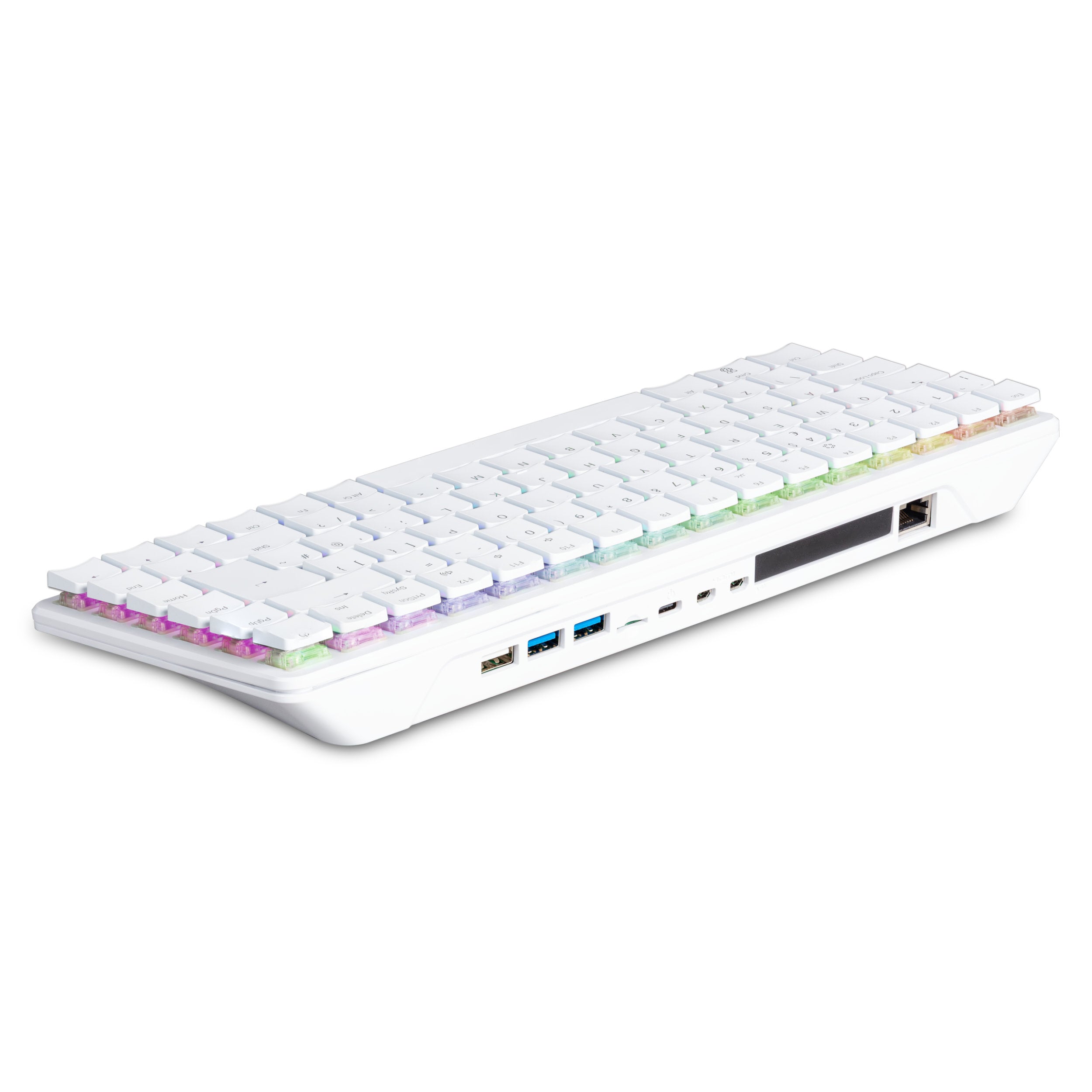

| Connections | 2 × USB 3.0, 1 × USB 2.0 |
| Video output | 2 × Micro HDMI (up to 4Kp60) |
| GPIO header | Horizontal 40-pin GPIO |
| Keyboard | Mechanical low-profile keys, RGB with addressable LEDs |
| Dimensions / Weight | approx. 312 × 123 × 35.8 mm, weight approx. 600 g |
| cooling | Passive, integrated aluminum heatsink |
| Power supply | 5 V / 5 A via USB-C |
Scope of delivery
Depending on the variant you will receive:
-
Unit-Only
• Raspberry Pi 500+ main unit (with German keyboard layout)
• Pre-installed 256 GB SSD (with Raspberry Pi OS) -
Desktop Kit (additional)
• EU USB-C power adapter
• USB mouse
• Micro HDMI → HDMI cable (2 m)
• User Manual / Beginner's Guide
Areas of application
The Raspberry Pi 500+ is versatile and particularly interesting for B2B and industrial scenarios:
-
Thin client / desktop replacement in the office : Office applications, browsers, remote desktop and cloud apps run smoothly.
-
Educational and school computers : easy to maintain and ready to use.
-
Digital Signage / Kiosk Systems : Compact, passively cooled and reliable.
-
IoT or embedded client : Expandable via GPIO for sensors or controls.
-
Development and prototyping environments : Strong performance for code compilation and testing.
Safety information
- Please read the instruction manual carefully before using the product.
- Ensure that all manufacturer's assembly and installation instructions are carefully followed.
- Use the product only for its intended purpose.
- Improper use of this product may result in serious injury or property damage.
- Not suitable for children under 10 years.
- Improper use may result in injury.
- This product complies with the applicable safety requirements of the European Union.
- This product has been tested in accordance with the GPSR, which ensures that all relevant safety requirements for consumer products are met.
Traceability information
Each product has one or more of the following features:
- A CE marking indicating compliance with the safety, health and environmental protection requirements of the European Union.
- A unique serial or batch number to ensure traceability and support recalls if necessary.
- Manufacturer and importer information for customer support and safety inquiries.
Monitoring and reporting of incidents
In the unlikely event of a product issue, we have implemented procedures to:
- Handle customer complaints promptly.
- Report serious incidents via the EU Safety Gate/RAPEX system.
- Cooperate with market surveillance authorities to ensure public safety.
Contact:
- Email: support [@] pi3g.com
- Phone: 0341 / 392 858 40
This product is fully compliant with all applicable EU regulations to ensure the safety of our valued customers.
