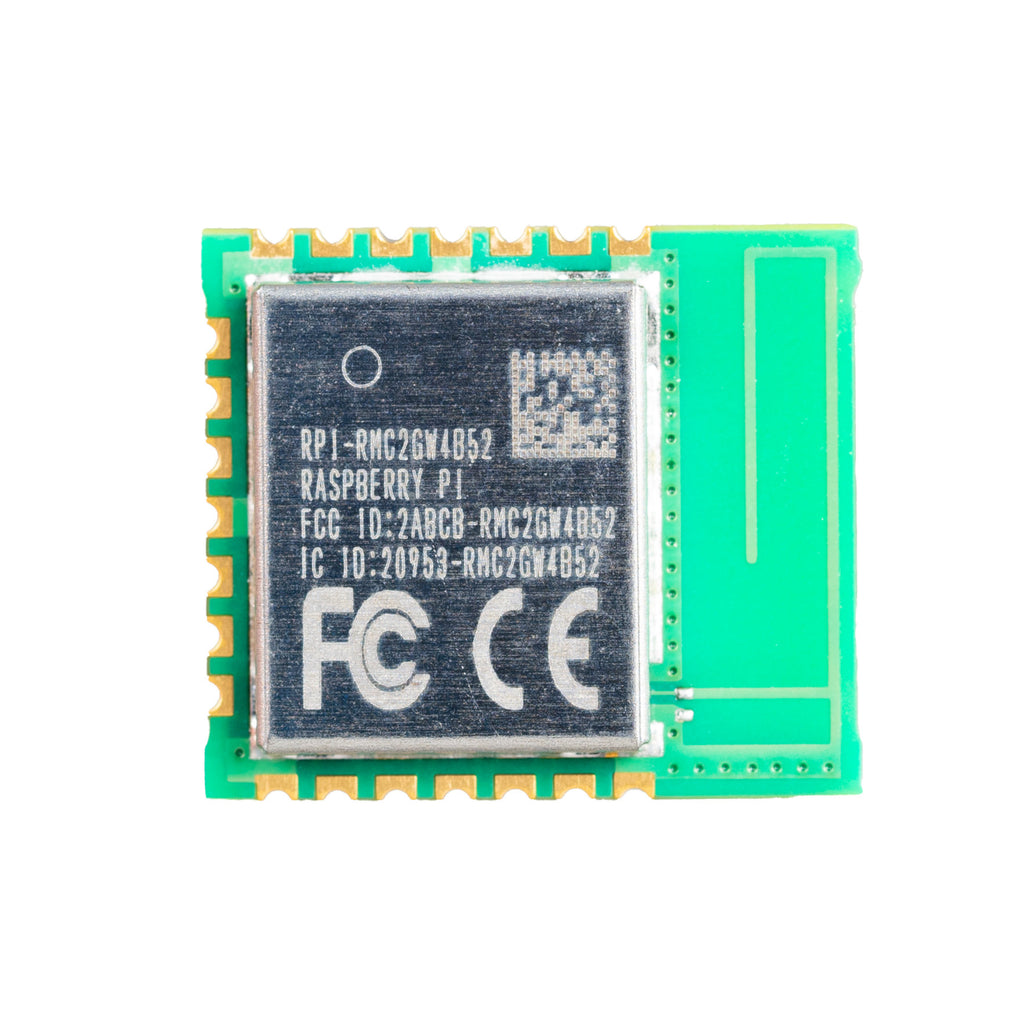

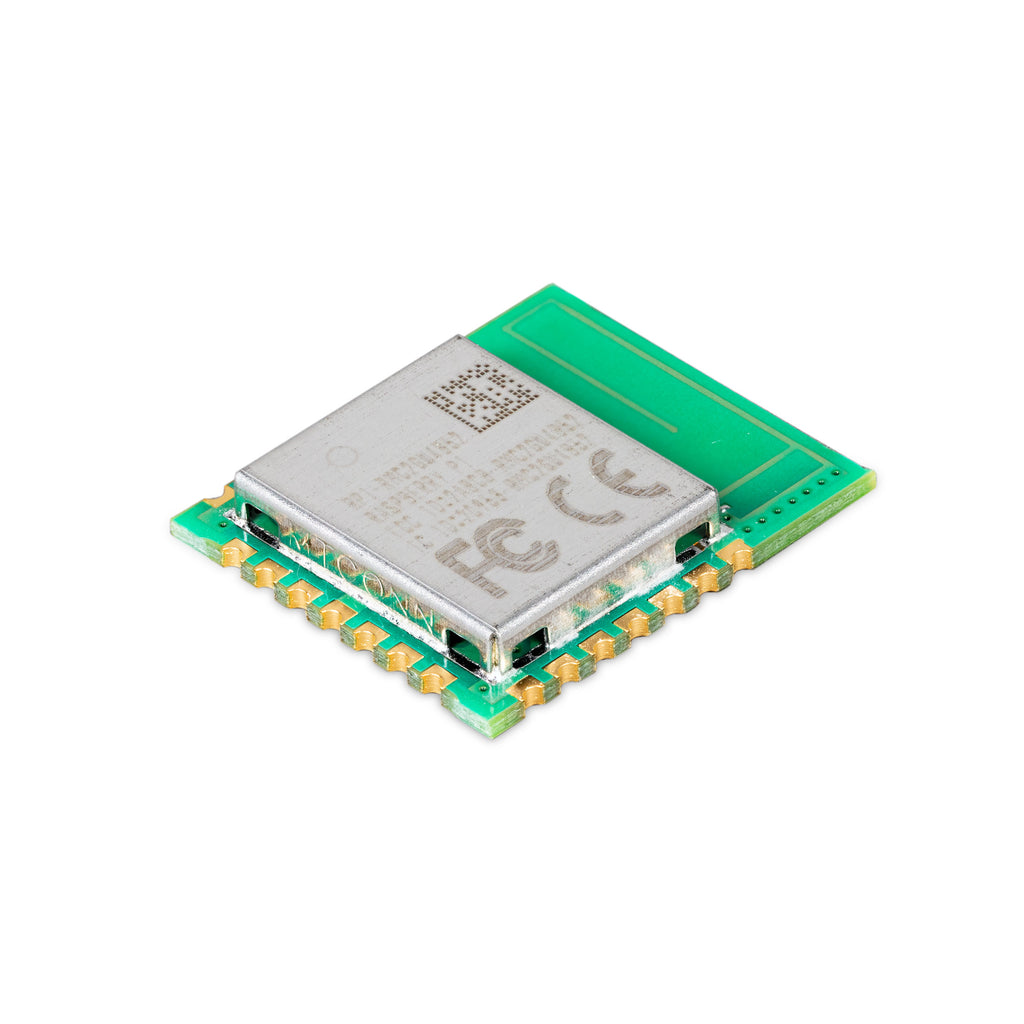

Raspberry Pi Radio Module 2

Raspberry PiSKU: RP-SC1169-RM2 | EAN / Barcode: 5056561805894
Delivery time: Read the description about pre-order
No reviews

Price:
Sale price4,90 €

Shipping calculated at checkout

Raspberry Pi Radio Module 2:
Wireless Wi-Fi 4 & Bluetooth 5.2 in mini format

The Raspberry Pi Radio Module 2 is a compact, modular, certified radio module that combines Wi-Fi 4 (802.11n, 2.4 GHz) and Bluetooth 5.2 (Classic & LE) in a single component—ideal for cost-effective IoT, industrial, and B2B applications. With integrated PA, LNA, and a common 2.4 GHz PCB antenna, the module saves space and significantly simplifies hardware design.

The module uses the same Infineon CYW43439 radio chip as the Raspberry Pi Pico W and Pico 2 W, including full software compatibility with their SDK. Thanks to its compact form factor (approx. 16.5 × 14.5 mm) and the low-pin-count SPI (gSPI) interface, it is extremely efficient in integration—particularly suitable for use in industrial embedded systems or in series production, as additional components are virtually eliminated.

Full modular certification facilitates market launch, especially for manufacturers who want to avoid complex radio approvals. This radio module combines the following key advantages: Raspberry Pi Radio Module 2 enables fast, stable connections via Wi-Fi 4 and Bluetooth 5.2 , high feature density in a compact footprint, low production costs, and direct scalability for professional applications.

Key benefits at a glance:

  • New: Compact integration of Wi-Fi 4 and Bluetooth 5.2 in the same module

  • Modular certified – simplifies regulatory approval for mass production

  • Efficient operation through integrated PA/LNA and shared antenna

  • Fully compatible with Pico W / Pico 2 W SDK, rapid development possible

  • Robust specifications: −30 °C to +70 °C, SPI-gSPI host interface

Technical data

specification

Details

Radio technology

Wi-Fi 4 (802.11 b/g/n, 2.4 GHz), Bluetooth 5.2 (Classic & LE)

chip

Infineon CYW43439 (PA & LNA integrated)

Software support

Compatible with Pico W / Pico 2 W SDK

interface

gSPI (PIO-based), 3 additional GPIO lines

antenna

On-board 2.4 GHz PCB antenna (shared, SISO)

Power consumption

1.19 mA (power save), 43 mA receive, 271 mA transmit

Data rate

Up to 96 Mbps over 20 MHz channels

Temperature range

−30 °C to +70 °C (operation), −40 °C to +125 °C (storage)

Housing & Dimensions

FR4 with 21 castellated pads, 14.5 × 16.5 × 2.55 mm

Certifications

CE, FCC, IC, UKCA (modular certification)

Scope of delivery

The scope of delivery includes only the Raspberry Pi Radio Module 2 (RMC20452T) as a single module with castellated edge pads. No other components are included.

Areas of application

  • Industrial control systems and embedded controllers with wireless connectivity

  • IoT edge devices for smart factory applications or sensor networks

  • Series production of networked devices without additional radio certification

  • Prototyping of wireless solutions based on RP2040 or RP2350 microcontrollers

  • Automation solutions with robust communication requirements

FAQ

Q:Is the module compatible with Pico W and Pico 2 W?
A:Yes, full software compatibility with Pico W and Pico 2 W SDK.

Q:Do I have to do radio certifications myself?
A:No, the module is modularly certified – no separate approval is required.

Q:Which interface does the module use
A:A low-pin-count SPI (gSPI), operated via the PIO core of the microcontroller.

Raspberry_Pi_Radio_Module_2_Product Description

Raspberry_Pi_Radio_Module_2_Datasheet

Notes

  • Not suitable for high-risk applications such as aviation, medical technology or life-saving systems
  • Protect from moisture and avoid mechanical damage
  • Consider the exact footprint from the datasheet when designing the PCB

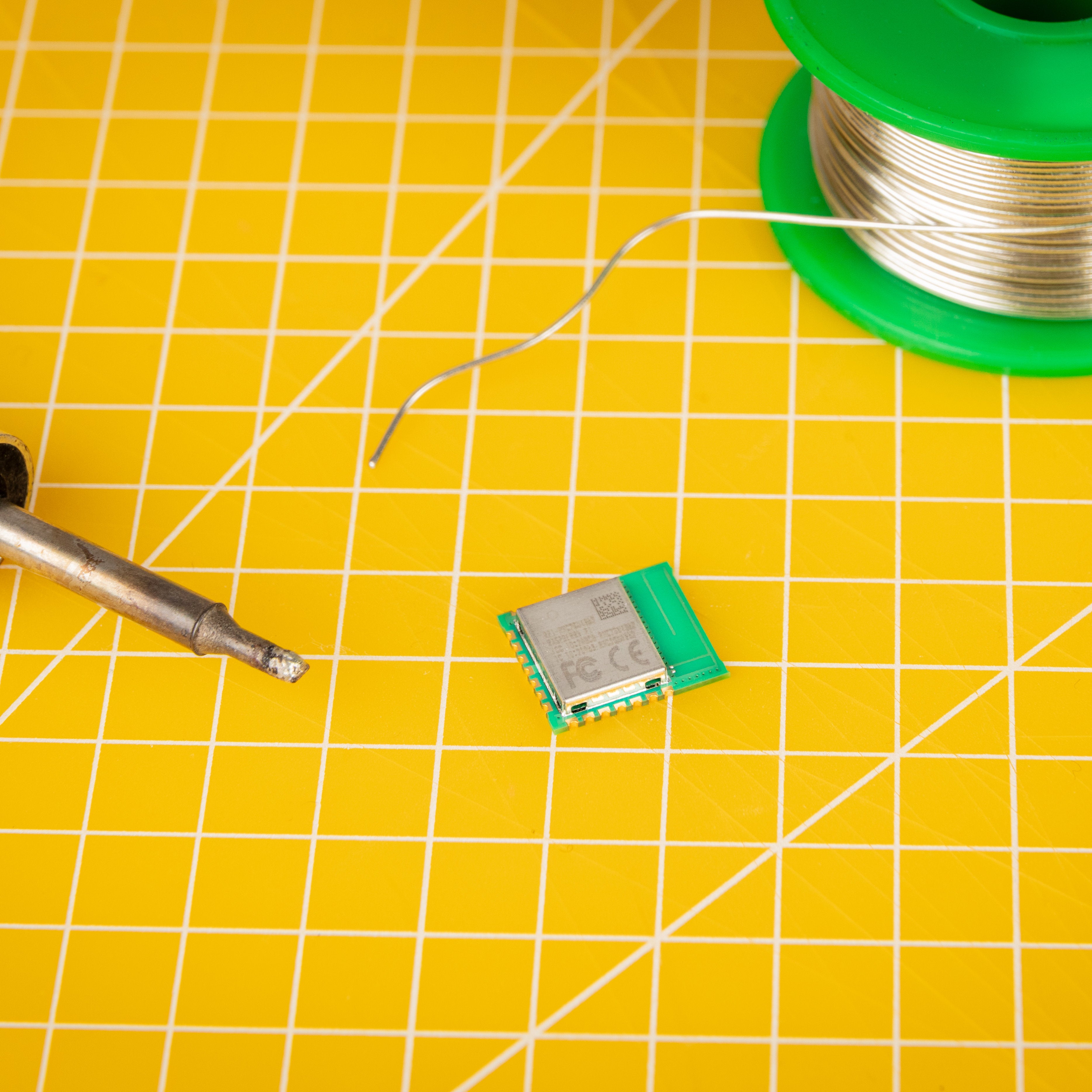

Assembly instructions

  1. Thecastellated edge padsenable SMT soldering directly onto your board; the ENIG coating ensures reliability.
  2. Pay attention to afree area around the antenna(“keep-out zone”) to ensure optimal radio performance.
  3. Use the appropriateSolder reflow processwith a maximum peak temperature of 260 °C (260 °C ±2 °C at “dead-bug”).
  4. For stable wireless connections, asolid ground planecrucial (low inductance).
  5. Use thegSPI interface via PIO, according to Pico-SDK manual – note correct configuration of clock and reset.
  6. The firmware for Wi-Fi and Bluetooth is loaded automatically via the Pico SDK – no customization required.
