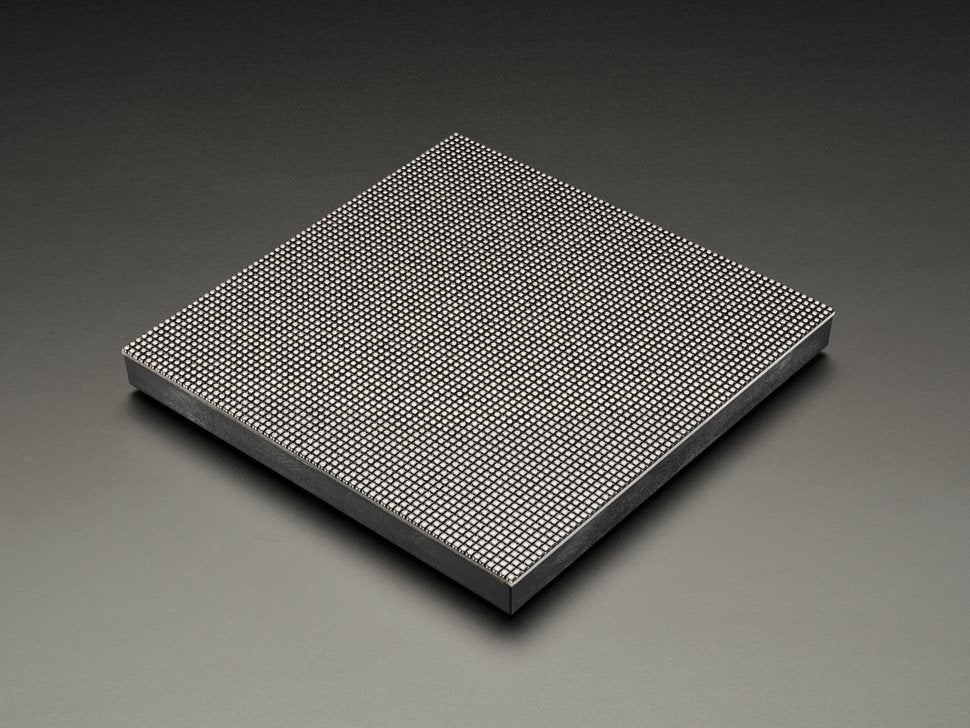

64x64 RGB LED Matrix - 2.5mm Pitch - 1/32 Scan

SKU: ada-3649
EAN / Barcode:
Lieferfrist: Sofort versandfertig, Lieferfrist 1-2 Tage

Preis:
Angebotspreis84,99 €

Inkl. Steuern Versand wird an der Kasse berechnet

Lager:
Auf Lager

Beschreibung

BESCHREIBUNG

Die Winterzeit kann in der Stadt hart sein. Der Himmel ist grau. Das Wetter ist unberechenbar. Also vertreiben Sie sich die trübe Jahreszeit mit ein wenig Glanz am Times Square mit dieser süßen, ultra-hochdichten 64x64 RGB-LED-Matrix. Diese Panels werden normalerweise für Videowände verwendet. Hier in New York sieht man sie an den Seiten von Bussen und auf dem Dach von Taxis, wo sie Animationen oder Videowerbung zeigen. Adafruit fand, dass sie wirklich cool aussahen, also hat er ein paar Kisten davon bei einer Fabrik abgeholt. Sie haben 4.096 helle RGB-LEDs, die in einem 64x64-Raster mit einem Abstand von 2,5 mm angeordnet sind.


WARNUNG! Diese 64 Pixel hohen Matrizen verwenden ein nicht standardisiertes 5-Adressen-Multiplexing-System! WARNUNG!

Viele Add-ons oder Treiber verwenden nur ein 4-Adressen (ABCD) Setup. Sie können diese Matrizen mit unserem RGB Matrix Bonnet für Raspberry Pi, RGB Matrix HAT (und Sie müssen einen Lötjumper anschließen) oder verwenden. Andere Bibliotheken wie unser Arduino Shield mit Adafruit-Bibliothek oder unsere HDMI-Treiber-Boards unterstützen kein 5-Adressen-Multiplexing!

Das SmartLED Shield in Kombination mit dem Teensy 3.5/3.6 hat die Hardware, um diese 5-Adress-Panels anzusteuern, und genug RAM, um die 4096 Pixel zu aktualisieren, allerdings muss der Netzstecker manuell angelötet/angepasst werden, da das Shield ihn überlappt.

Vollständiger Kit-Inhalt:

  • 64x64 RGB-Panel
  • IDC-Flachbandkabel (~200mm)
  • Stromkabel (~480mm)
  • 4 Befestigungsschrauben und Mini-Magnete

TECHNISCHE EINZELHEITEN

  • Helligkeit: 2800cd/Quadratmeter
  • Größe: 160x160mm
  • Abstand: 2.5M
  • 5 adressierbare Pins
  • Kompatibel mit M3 Montageschrauben
  • Abtastung: 1/32
  • Bildwiederholfrequenz: >=400HZ
  • Wasserdichte Klasse: IP43
  • Gewicht: 204,8 g (nur Matrix-Panel). 255g (mit Komponenten)

DESCRIPTION

Winter time can be rough in the city. The sky is gray. The weather is unpredictable. So slough off those seasonal blues with some Times Square razzle dazzle from this sweet, ultra-high-density 64x64 RGB LED Matrix. These panels are typically used to make video walls. Here in New York we see them on the sides of buses and on top of taxi cabs displaying animations or video advertisements. Adafruit thought they looked really cool, so he picked up a few boxes of them from a factory. They have 4,096 bright RGB LEDs arranged in a 64x64 grid at a 2.5mm pitch.

WARNING! These 64-pixel tall matrices use a non-standard 5-address multiplexing system! WARNING!

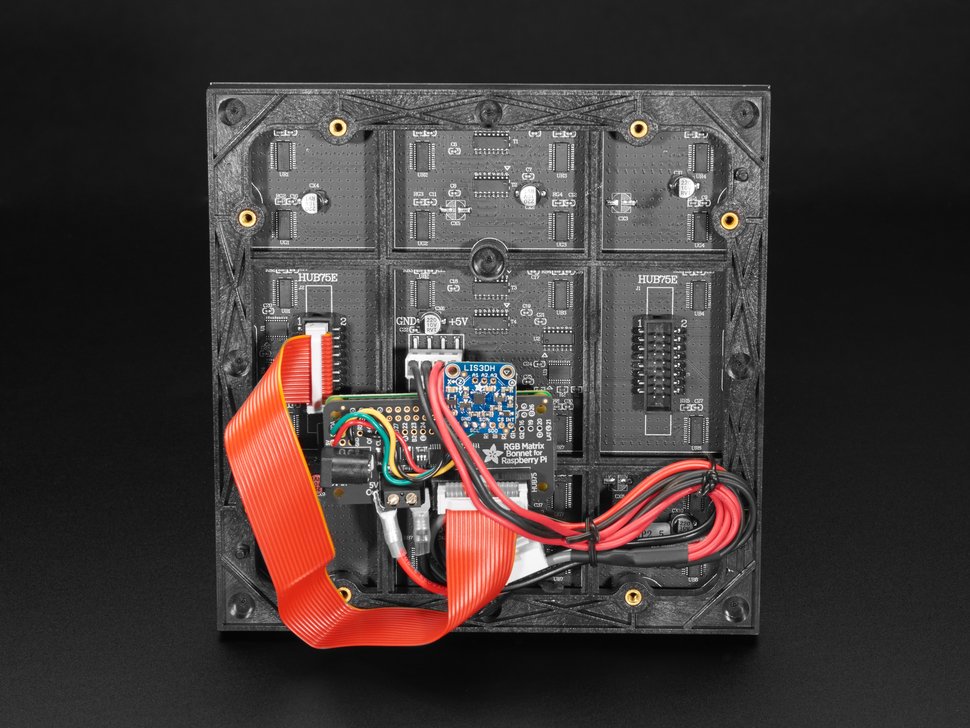

Many add-ons or drivers use only a 4-address (ABCD) setup. You can use these matricies with our RGB Matrix Bonnet for Raspberry Pi, RGB Matrix HAT (and you'll need to connect a solder jumper) or . Other libraries such as our Arduino shield with Adafruit library, or our HDMI driver boards don't support 5-address multiplexing!

The SmartLED Shield in combination with the Teensy 3.5/3.6 has the hardware for driving these 5-address panels, and enough RAM to refresh the 4096 pixels, however the power plug must be manually soldered/adapted because the shield overlaps it.

Full Kit Contents:

  • 64x64 RGB panel
  • IDC ribbon cable (~200mm)
  • power cable (~480mm)
  • 4 mounting screws and mini-magnets

TECHNICAL DETAILS

  • Brightness: 2800cd/square meter
  • Size: 160x160mm
  • Pitch: 2.5M
  • 5 Addressable Pins
  • Compatible with M3 mounting screws
  • Scan: 1/32
  • Refresh Frequency: >=400HZ
  • Waterproof Class: IP43
  • Weight: 204.8g (only matrix panel). 255g (w/ components)
