This kit is perfect for professional users. Use the Compute Blade as a 19'' rack solution. Includes a 19'' case!
We are currently out of stock on the 19'' cases due to the high demand. We estimate to be able to ship this kit around March.
Kit contents:
- 5 x Uptime Industries Compute Blade Dev (maximum features version, can be used to flash the compute module)
- 15 x Uptime Industries Compute Blade TPM (includes TPM module for hardware cryptography)
- 10 x Compute Blade FAN (SMART)
- 5 x CM4 Compute Blade Heatsink (red)
- 15 x CM4 Compute Blade Heatsink (blue)

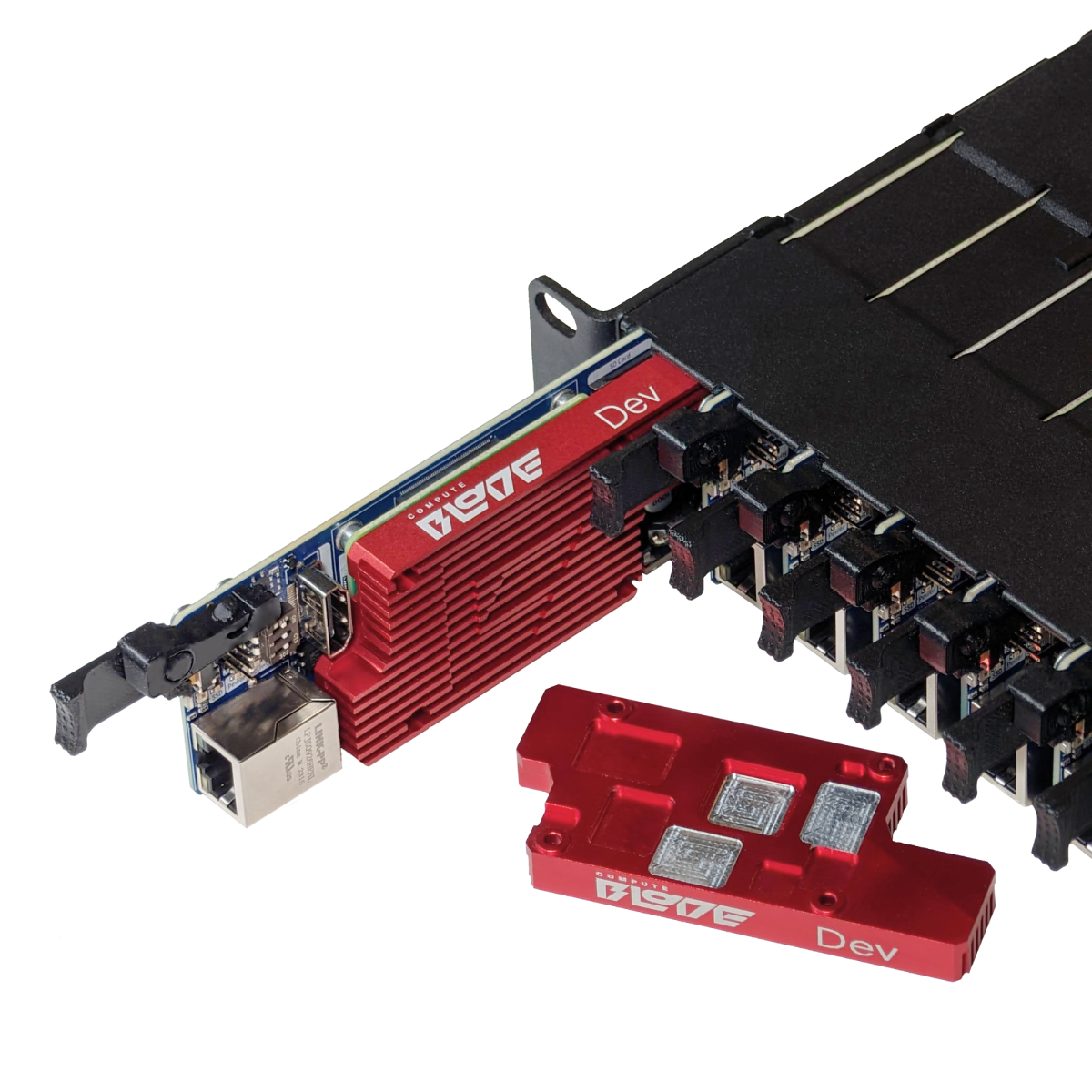

- 1 x BladeRunner 19'' rack case for Compute Blades
Notes:
- CM4 or CM5 are not included in this Starter Kit, and need to be purchased separately - we offer a variety of choices
- The Compute Blade Heatsinks are NOT compatible with CM5, as it has a different height profile
Rack-mountable, PoE-powered carrier board for Raspberry Pi Compute Module 4 (CM4) & CM5 and compatible modules with all the necessary interfaces
The Compute Blade, an Uptime Industries product, is a enterprise grade rack-mountable, PoE-powered carrier board for Raspberry Pi Compute Module 4 / Compute Module 5 with all the necessary interfaces. With Compute Blade, you can create a high-density, low-power-consuming, plug-and-play blade server for home or data-center use. The Compute Blades were designed to work 24/7.
Create your high-density server with Compute Blade: You can fit up to 20 Compute Blades into a 1U 19-inch rack space, which can add up to 80 ARM cores, 160GB RAM, and 10TB of NVMe flash storage depending on your configuration.
Key Features
- Raspberry Pi CM4 & CM5 support
- support for fan using PWM fan connector
- supports NVMe SSDs up to 22110 (2230, 2242, 2260, 2280)
- Power over Ethernet IEEE 802.3at (PoE+)
Interfaces
- Gigabit Ethernet
-
HDMI (up to 4k60) (Compute Blade TPM and Compute Blade Dev)
- UART0 on the front
- Uptime high speed module support
- USB-A, USB-C switchable USB input
Additional features:
- TPM 2.0 secure boot (Compute Blade TPM and Compute Blade Dev)
- WiFi, BT and EEPROM write-protection (WiFi + BT require CM4 with WiFi / BT support, only on Compute Blade Dev)
- Controllable RGB LEDs
Specifications
| Compatibility |
Raspberry Pi Compute Module 5 / 5 Lite Raspberry Pi Compute Module 4 / 4 Lite |
|---|---|
| Storage | M.2 NVMe up to 22110 Micro SD |
| Networking | Gigabit Ethernet (Wi-Fi on some CM4 & CM5 models, not recommended in rack usage) |
| GPIO | 2 x UART 7 x User Controllable GPIO including I2C Fan Unit Connector Programmable Button 2 x Controllable RGB LEDs |
| Operating Voltage | 5V - USB C 5.1V - Power over Ethernet IEEE 802.3at (PoE+) up to 30W @5.1V |
| Input Power (Normal Operation) | 2 - 8W |
| Ports | HDMI (4K60) USB A USB C |
| Security | TPM 2.0 Hardware switchable Wi-Fi, Bluetooth and EEPROM write-protection Support for ZYMKEY 4i, Security Keys |
| Dimensions | 42.5 x 250 x 17.5 mm |
Accessories for the Compute Blade platform
The Compute Blade platform is a product family, consisting of products optimized to work with each other:
- Compute Blade, compatible with Raspberry Pi Compute Module CM4

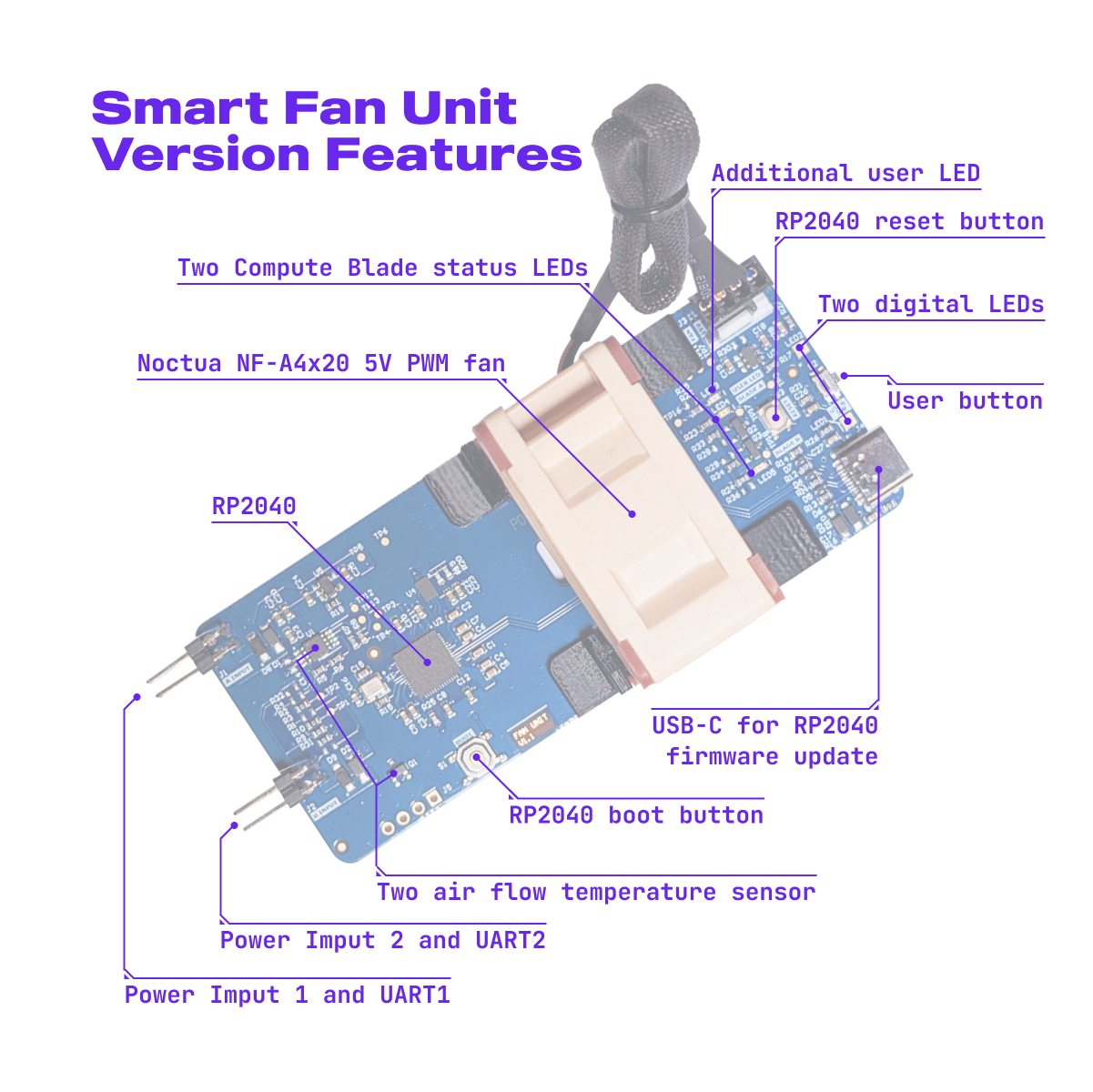

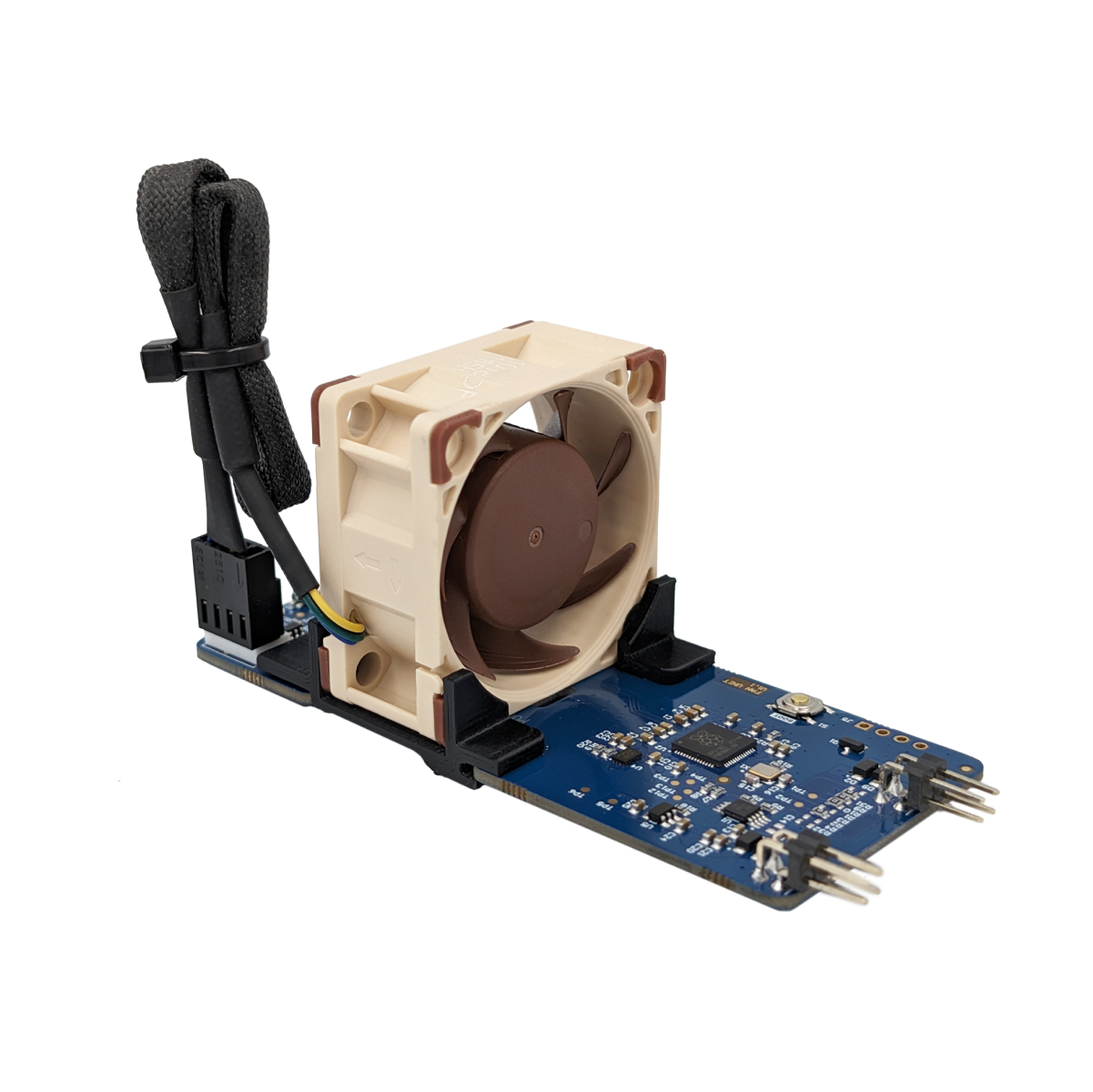

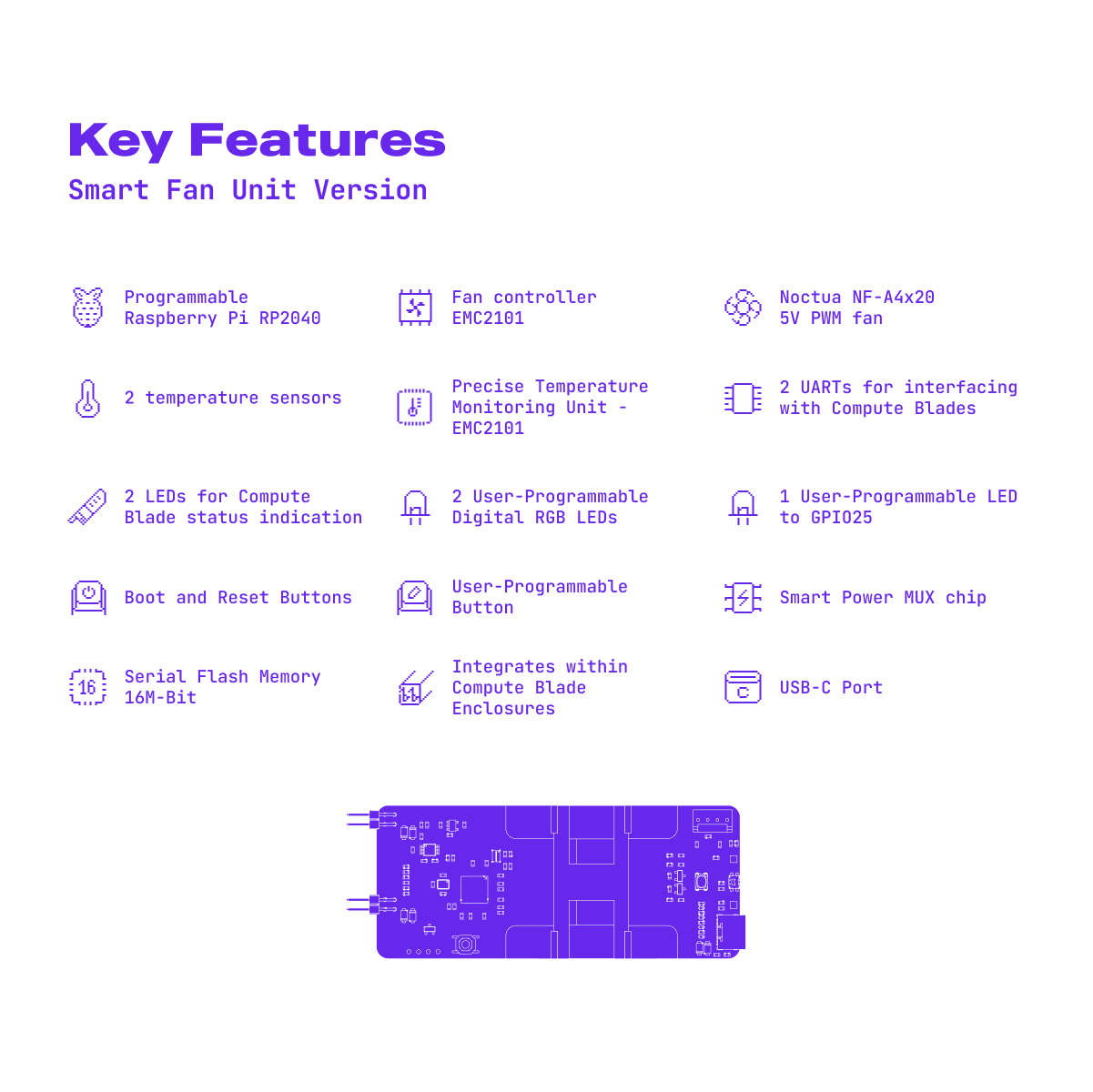

- Compute Blade Fan Unit (Basic Fan Unit & Smart Fan Unit versions) - one fan unit cools two compute blades.

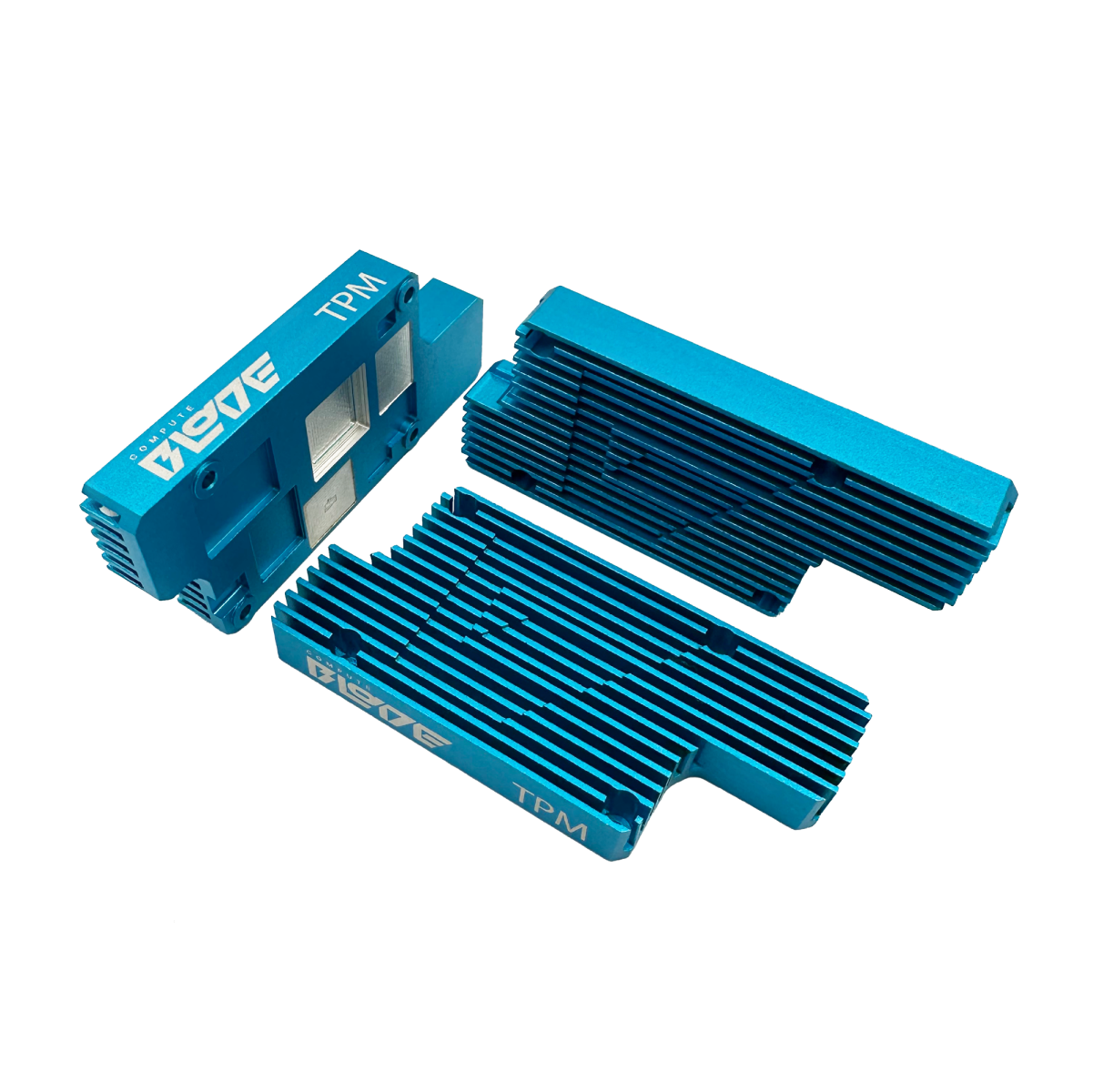

- Compute Blade Heatsink - available in black, red, blue - not compatible with CM5!

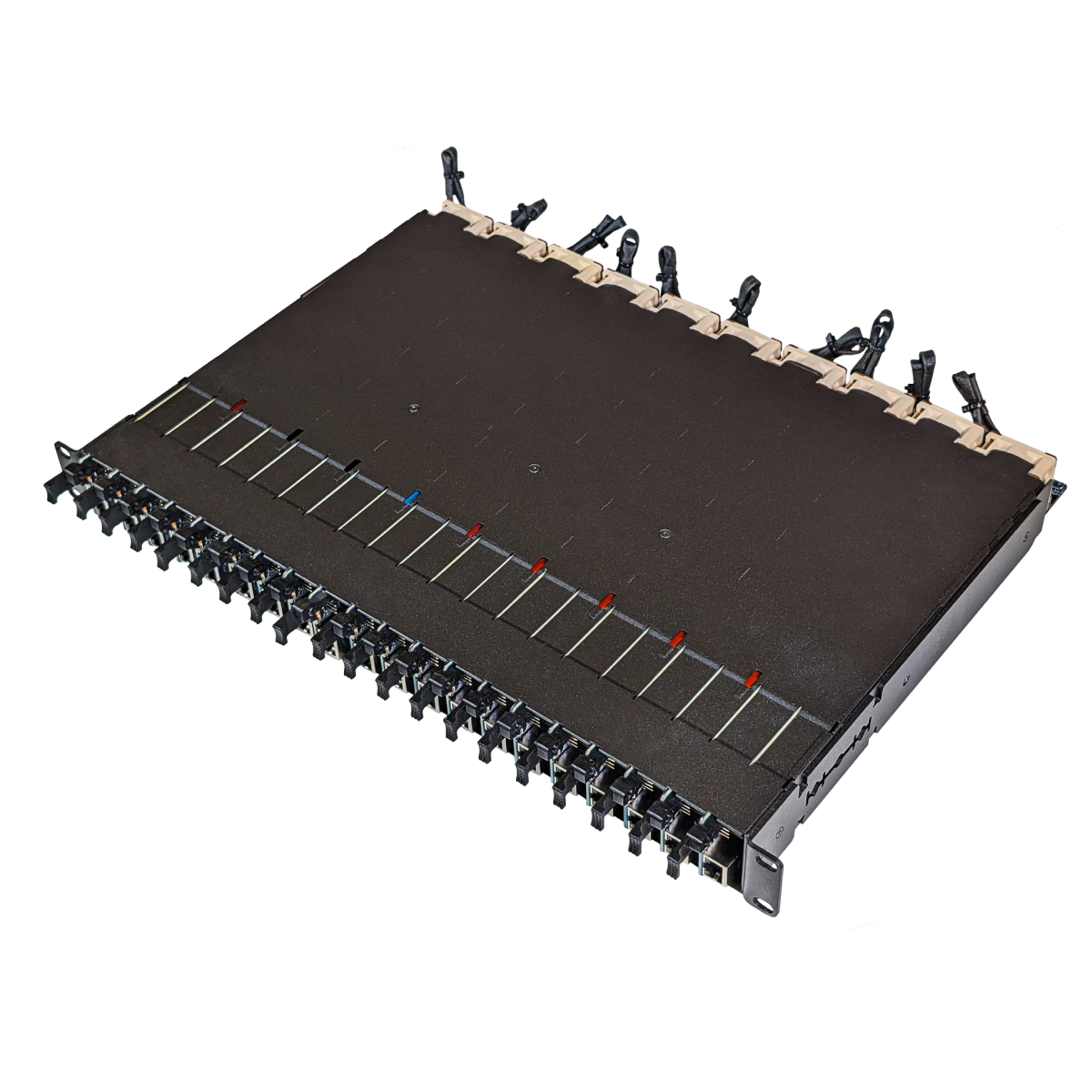

- BladeRunner Compute Blade Enclosures - available in a 19''-rack mountable version, and a 4-unit housing version
- (coming soon): AI accelerator module, adds two Coral TPUs to the compute blade
- (coming soon): BladeCluster Pro and BladeCluster ProSW - fully assembled 19'' 1U metal racks, including compute modules and software (ProSW only)
Advantages of the Compute Blade platform
Unlike conventional blade servers, the Compute Blade system eliminates a single point of failure as it doesn't rely on a server platform. While it still uses a PoE network switch (also necessary for blade servers), switches are simpler to replace or keep as spares compared to entire server platforms. Network equipment typically boasts high reliability.
Individual blades can be rebooted or power-cycled by momentarily disabling their switch port power. Thanks to the CM4's network boot feature, reprovisioning and system rescue are straightforward. Each blade is compact and devoid of moving parts.
Note: the optional fans which are recommended for high loads of course include moving parts
The image above shows the different options and extensions which the Compute Blade will support, amongst others, opening up a world of possibilities for your application.
Applications
Edge servers
Reduce latency and extend compute power to make your processes leaner, more efficient, and more cost-effective.
CI/CD systems and Automated tests
Perform performance tests on dedicated hardware for far more stable results than running tests on virtual machines.
Stateless Computing
Seamlessly deploy specialized stateless computing platforms, such as OpenFaaS, onto the blades to enhance functionality and performance.
High Availability Computing
Deploy robust, high-availability computing to maintain critical operations and services with minimal downtime.
Education
Enhance educational experiences with practical, hands-on tech learning, facilitating innovation and computing skills.
Private Cloud
Create your own secure, scalable private cloud for efficient data management and tailored
IT services.
Home Labs
An enterprise-level homelab experience that you can use
to build, play with, and explore new technologies
Hosting provider
Provide dedicated resources and isolate customer machines
on a physical layer, to protect against modern CPU/hypervisor exploits.
Smart Homes
Make your home server highly available and increase the possibilities e.g by adding more modules like the Uptime AI-Module.
