Die ED-HMI2002 Serie ist ein Industrie-Panel-PC, der auf dem Raspberry Pi 4 basiert.
Das HMI wird nicht mit einem Raspberry Pi 4 geliefert.
Ein Raspberry Pi 4 muss separat erworben werden.
Beschreibung:
| Merkmal | Details |
|---|---|
| Beschreibung | Industrie-Panel-PC basierend auf Raspberry Pi 4 |
| CPU | Broadcom BCM2711, Quad-Core Arm Cortex-A72 (ARM v8) 64-Bit SoC @ 1,5 GHz |
| RAM | Bis zu 8 GB LPDDR4 RAM, 32 GB oder 64 GB SD-Karten-Speicher |
| Speicher | 32 GB und 64 GB SD-Karte sind optional |
| Netzwerk | 1 x Gigabit Ethernet-Port, 2 x USB 3.0, 2 x USB 2.0 |
| HDMI | Duale 4Kp60 HDMI-Anzeigeausgabe |
| Stromversorgung | 5V DC Stromversorgung über USB-C |
| Kamera | 8-Megapixel-Frontkamera (optional) |
| Gehäuse | Aluminium-CNC + Blechgehäuse, lüfterloses Design, bietet hervorragende Kühlleistung |
| Installation | Eingebettete Installation, kompatibel mit VESA-Standardhalterung |
ED-HMI2002 Serie Auswahlleitfaden
| Modell-Nr. | LCD-Größe | Auflösung | Seitenverhältnis | Farben | Helligkeit (cd/m²) | Sichtwinkel (H/V) | Multi-Touch (# Punkte) | Abmessungen (mm) | Gewicht (g) |
|---|---|---|---|---|---|---|---|---|---|
| ED-HMI2002-101C | 10.1" | 1280x800 | 16:10 | 16.7M | 250 | 160°/160° | 10 | 258mm x 172mm x 38.5mm | Ca. 900g |
Spezifikationen
System
| Komponente | Details |
|---|---|
| CPU | Broadcom BCM2711, Quad-Core Arm Cortex-A72 (ARM v8) 64-Bit SoC @ 1,5 GHz |
| VPU | H.265 (HEVC), bis zu 4Kp60 Dekodierung, H.264, bis zu 1080p60 Dekodierung, 1080p30 Kodierung |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| RAM | Optionen für 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM |
| Speicher | 32 GB und 64 GB SD-Karte sind optional |
Software
| Betriebssystem | Details |
|---|---|
| Betriebssysteme | - Raspberry Pi OS (Desktop) 32-Bit - Raspberry Pi OS (Lite) 32-Bit - Raspberry Pi OS (Desktop) 64-Bit - Raspberry Pi OS (Lite) 64-Bit |
Front I/O
| Komponente | Details |
|---|---|
| Kamera | Eingebaute 8-Megapixel-Frontkamera (optional). |
Seiten I/O
| Port | Details |
|---|---|

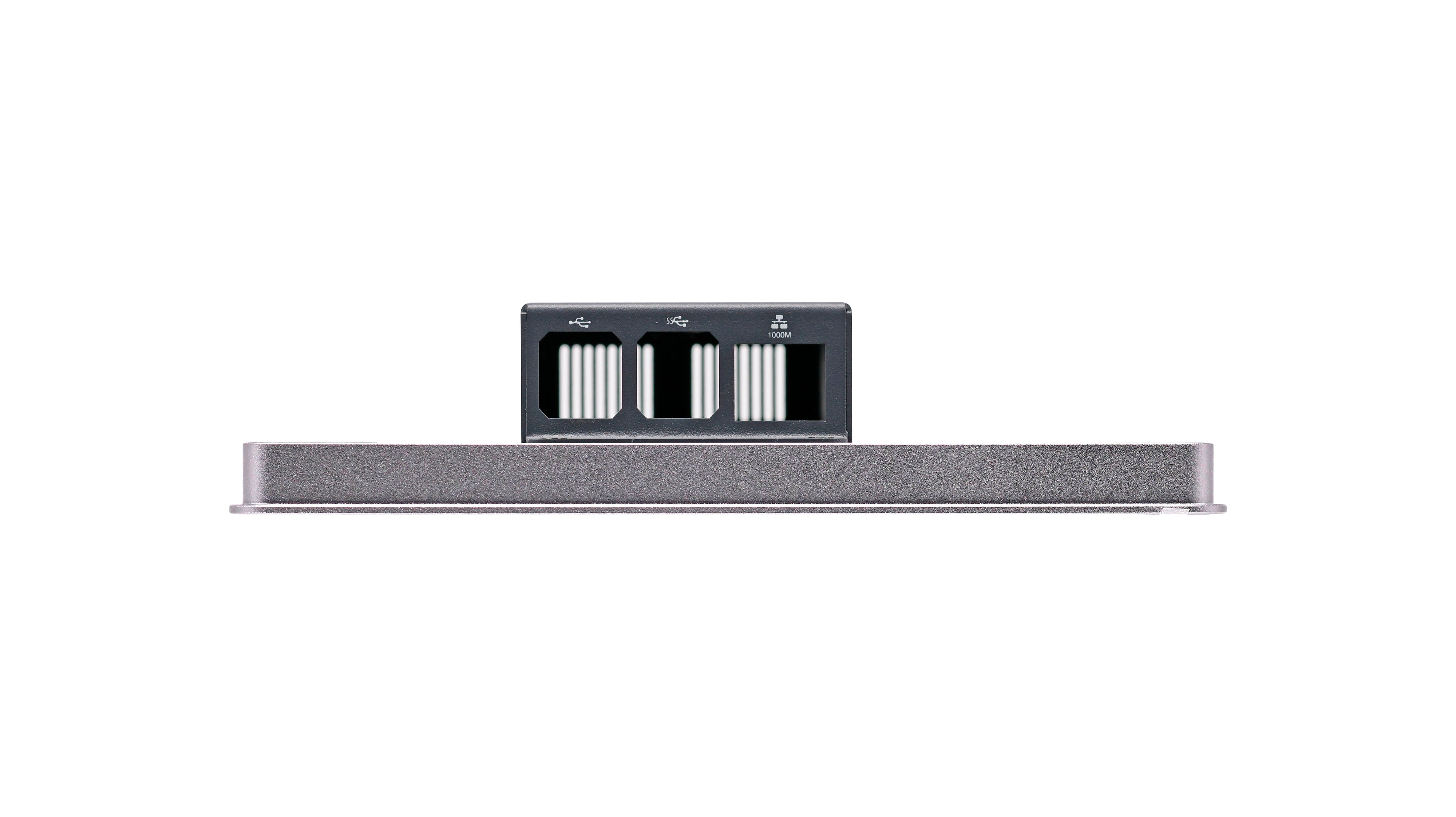

| USB 2.0 | 2 x USB 2.0-Ports, Dual-Layer Typ A Connector, jeder Kanal unterstützt bis zu 480Mbps. |
| USB 3.0 | 2 x USB 3.0-Ports, Dual-Layer Typ A Connector, jeder Kanal unterstützt bis zu 5Gbps. |
| 1000M Ethernet | 1 x adaptiver 10/100/1000M Ethernet-Port, RJ45-Anschluss. Kann zum Zugriff auf das Netzwerk verwendet werden. |
| SD-Karten-Slot | 1 x Micro SD-Karten-Slot, der zur Installation der SD-Karte verwendet wird. Unterstützt das Booten des OS von der SD-Karte. |
| Audio | 1 x Audio-Port, 3,5 mm Audio-Klinkenstecker, 4-poliger Stereo-Audio. |

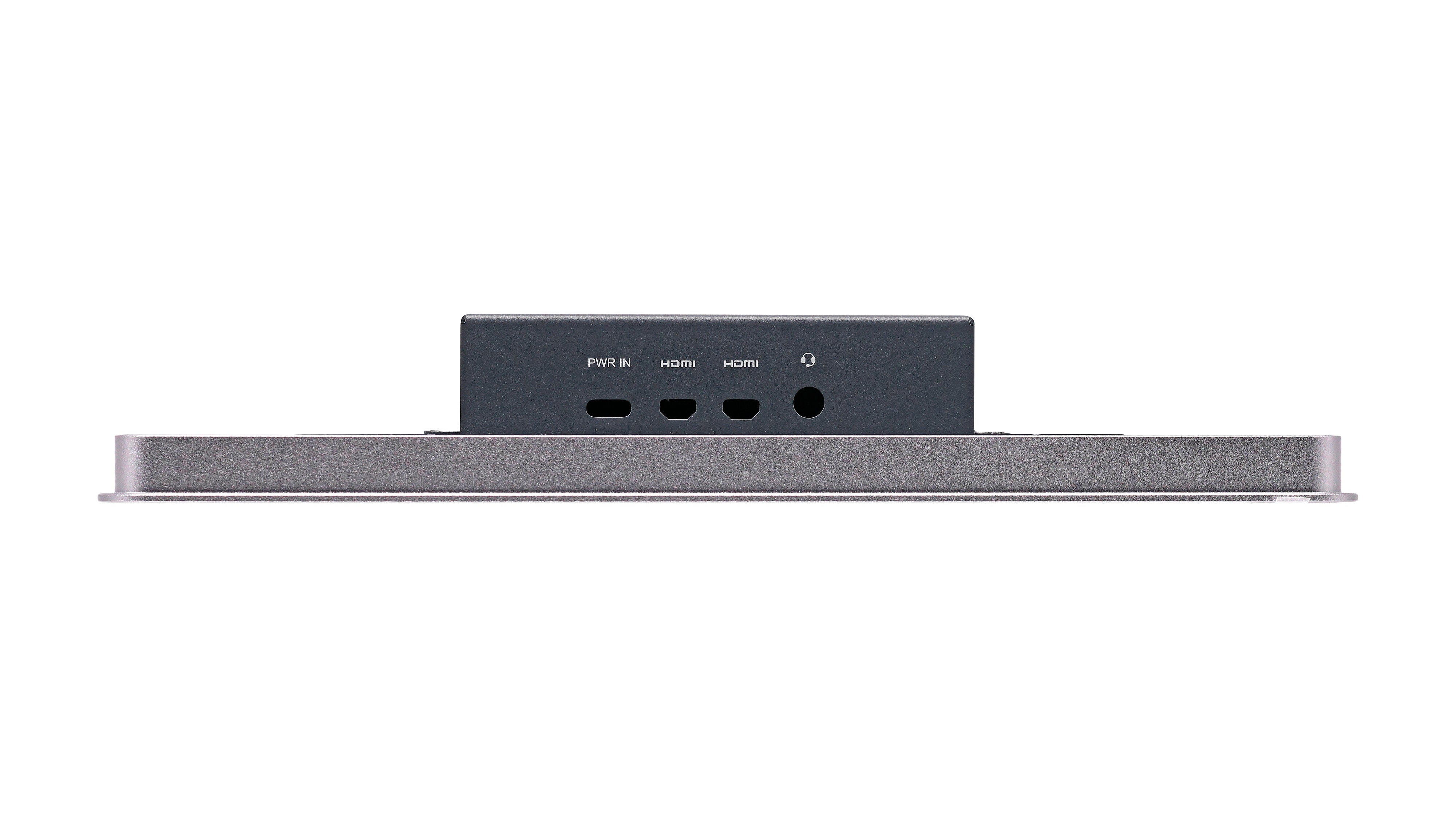

| HDMI | 2 x HDMI-Ports, Micro-HDMI-Anschluss, unterstützt 4K 60Hz. |
| Stromversorgung | 1 x Stromanschluss, USB Typ-C-Anschluss, unterstützt 5V/3A DC-Stromversorgung. |
Interne I/O
| Port | Details |
|---|---|
| PoE | 1 x PoE-Port, reserviert für den Anschluss eines PoE-Moduls. |
LCD
| Merkmal | Details |
|---|---|
| LCD Größe | 10.1" TFT |
| Auflösung | 1280x800 |
| Farben | 16.7M |
| Aktive Fläche | 216.576mm (H) x 135.36mm (V) |
| Hintergrundbeleuchtung | LED |
| MTBF | >30.000h |
| Helligkeit | 250cd/m² |
| Kontrastverhältnis | 1000:1 |
| Reaktionszeit | 30ms |
| Sichtwinkel (CR≥10) | 80° (L)/80° (R)/80° (U)/80° (D) |
Touchscreen
| Merkmal | Details |
|---|---|
| Typ | Mehrpunkt-Kapazitiver Touchscreen |
| Transparenz | ≥85% |
| Verbindungsmethode | COF |
| Controller-Schnittstelle | I2C |
| Treiber-Unterstützung | Linux |
| Multi-Touch | 10 Punkte |
| Oberflächenhärte | 6H |
Elektrische Eigenschaften
| Merkmal | Details |
|---|---|
| Eingangsspannung | 5V DC |
| Maximale Leistungsaufnahme | 15W (Max) |

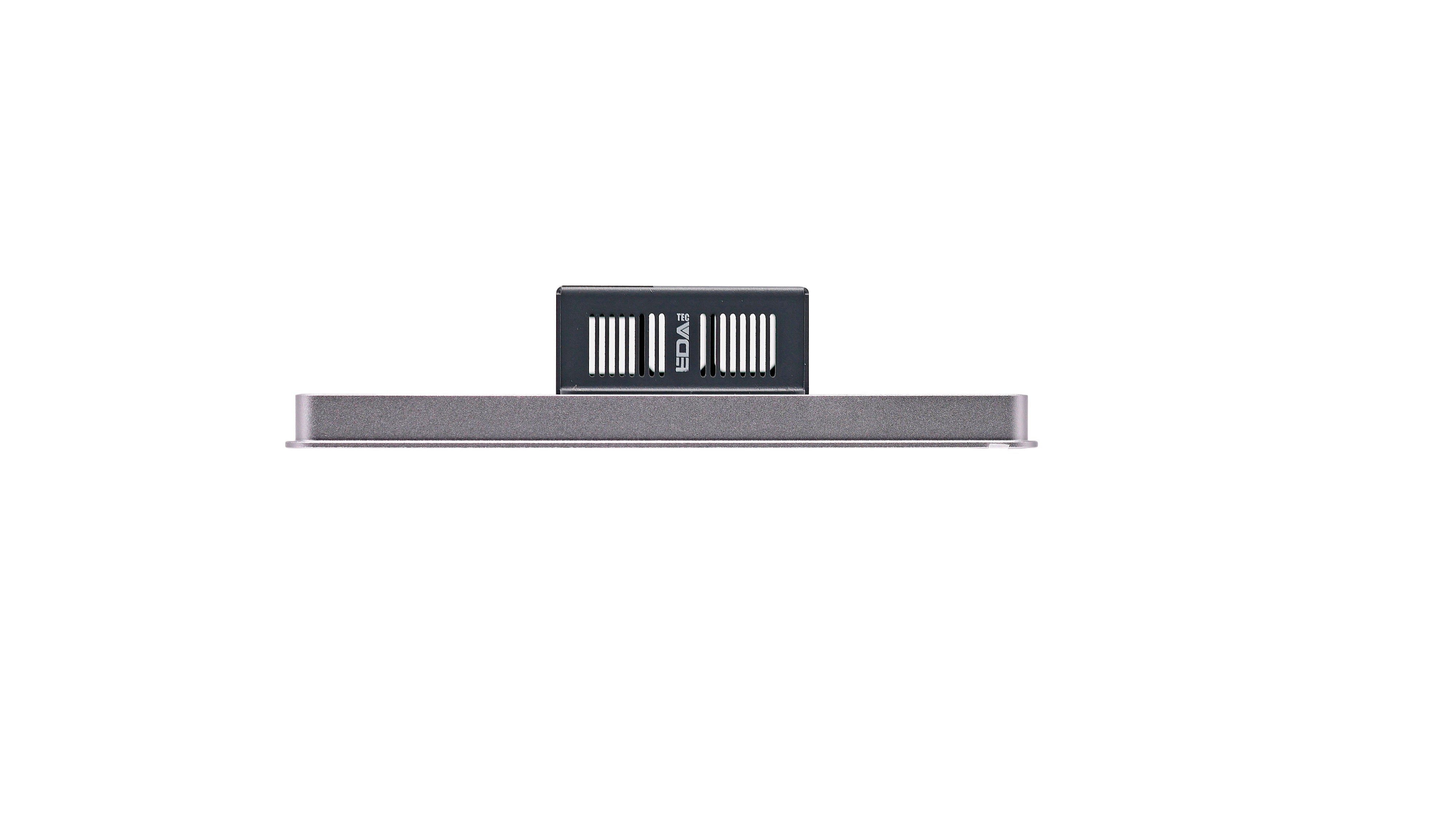

Mechanische Eigenschaften
| Merkmal | Details |
|---|---|

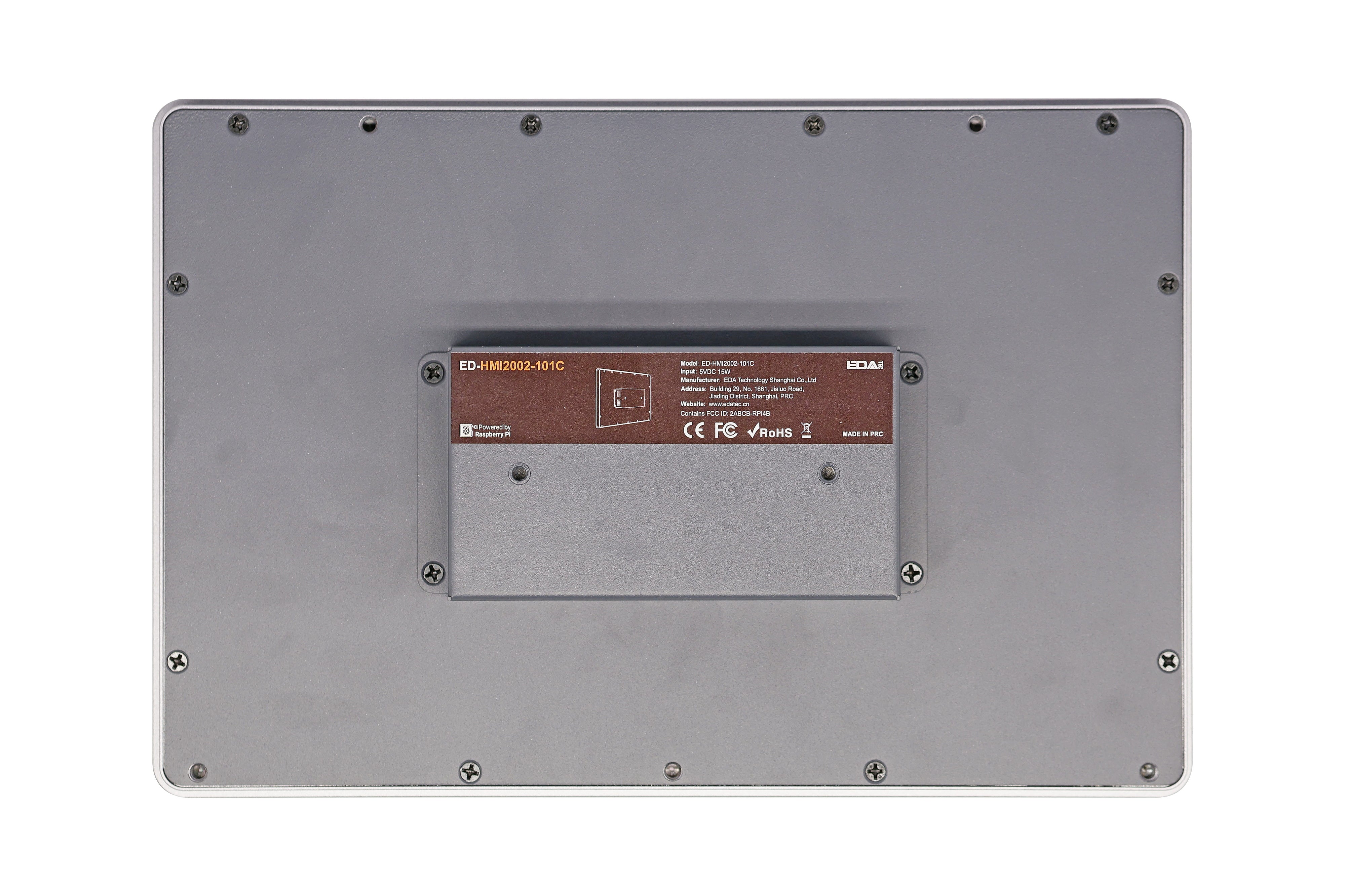

| Abmessungen | 258mm x 172mm x 38.5mm (BxTxH) |
| Gewicht | Ca. 900g |
| Installation | Eingebettete Frontinstallation |
Drahtlos
| Merkmal | Details |
|---|---|
| Wi-Fi | Dualband 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / BLE |
Umwelt- & Vorschriften
| Merkmal | Details |
|---|---|
| Betriebstemperatur | -20℃~60℃ |
| Lagertemperatur | -25℃~60℃ |
| Umgebungsfeuchtigkeit | 5% ~ 95% (nicht kondensierend) |
| Zertifizierungen | FCC: FCC 47 CFR Part 15 Subpart B CE: EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035/ EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |
English Description
The ED-HMI2002 Series is an industrial panel PC based on Raspberry Pi 4. The HMI does not come with a Raspberry Pi 4. A Raspberry Pi 4 must be purchased separately.
Description:
| Feature | Details |
|---|---|
| Description | Industrial Panel PC based on Raspberry Pi 4 |
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| RAM | Up to 8GB LPDDR4 RAM, 32GB or 64GB SD Card storage |
| Storage | 32GB and 64GB SD Card are optional |
| Network | 1 x Gigabit Ethernet port, 2 x USB 3.0, 2 x USB 2.0 |
| HDMI | Dual 4Kp60 HDMI display output |
| Power Supply | 5V DC power input via USB-C |
| Camera | 8-megapixel front camera (optional) |
| Case | Aluminum CNC + sheet metal case, fanless design, providing excellent cooling performance |
| Installation | Embedded installation, compatible with VESA standard bracket installation |
ED-HMI2002 Series Selection Guide
| Model No. | LCD Size | Resolution | Aspect Ratio | # of Colors | Luminance (cd/m²) | Viewing Angle (H/V) | Multi-touch (# of points) | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| ED-HMI2002-101C | 10.1" | 1280x800 | 16:10 | 16.7M | 250 | 160°/160° | 10 | 258mm x 172mm x 38.5mm | About 900g |
Specifications
System
| Component | Details |
|---|---|
| CPU | Broadcom BCM2711, quad-core Arm Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| VPU | H.265 (HEVC), up to 4Kp60 decode, H.264, up to 1080p60 decode, 1080p30 encode |
| GPU | OpenGL ES 3.1 & Vulkan 1.0 |
| RAM | Options for 1GB, 2GB, 4GB, 8GB LPDDR4-3200 SDRAM |
| Storage | 32GB and 64GB SD Card are optional |
Software
| Operating System | Details |
|---|---|
| Operating Systems | - Raspberry Pi OS (Desktop) 32-bit - Raspberry Pi OS (Lite) 32-bit - Raspberry Pi OS (Desktop) 64-bit - Raspberry Pi OS (Lite) 64-bit |
Front I/O
| Component | Details |
|---|---|
| Camera | Built-in 8-megapixel front camera (optional). |
Side I/O
| Port | Details |
|---|---|
| USB 2.0 | 2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps. |
| USB 3.0 | 2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps. |
| 1000M Ethernet | 1 x adaptive 10/100/1000M Ethernet port, RJ45 connector. Can be used to access the network. |
| SD Card Slot | 1 x SD card slot, used for SD card installation. Supports booting the OS from the SD card. |
| Audio | 1 x Audio port, 3.5mm audio jack connector, 4-pole stereo audio. |
| HDMI | 2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz. |
| Power | 1 x power in port, USB Type-C connector, supporting 5V/3A DC power input. |
Internal I/O
| Port | Details |
|---|---|
| PoE | 1 x PoE port, reserved to connect PoE module. |
LCD
| Feature | Details |
|---|---|
| LCD Size | 10.1" TFT |
| Resolution | 1280x800 |
| Colors | 16.7M |
| Active Area | 216.576mm (H) x 135.36mm (V) |
| Backlight | LED |
| MTBF | >30,000h |
| Luminance | 250cd/m² |
| Contrast Ratio | 1000:1 |
| Response Time | 30ms |
| Viewing Angle (CR≥10) | 80° (L)/80° (R)/80° (U)/80° (D) |
Touchscreen
| Feature | Details |
|---|---|
| Type | Multi-point Capacitive Touch Screen |
| Transmittance | ≥85% |
| Connection Method | COF |
| Controller Interface | I2C |
| Driver Support | Linux |
| Multi-touch | 10 points |
| Surface Hardness | 6H |
Electrical Characteristics
| Feature | Details |
|---|---|
| Input Voltage | 5V DC |
| Maximum Power Consumption | 15W (Max) |
Mechanical Characteristics
| Feature | Details |
|---|---|
| Dimensions | 258mm x 172mm x 38.5mm (WxDxH) |
| Weight | About 900g |
| Installation | Embedded front installation |
Wireless
| Feature | Details |
|---|---|
| Wi-Fi | Dual-band 802.11ac Wi-Fi |
| Bluetooth | Bluetooth 5.0 / BLE |
Environmental & Regulatory
| Feature | Details |
|---|---|
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -25℃~60℃ |
| Ambient Humidity | 5% ~ 95% (non-condensing) |
| Certifications | FCC: FCC 47 CFR Part 15 Subpart B CE: EN IEC 62368-1/EN IEC 62311/EN IEC 61000-3-2/EN IEC 61000-3-3 EN 55032/EN 55035/ EN 301 489-1/EN 301 489-3/EN 301 489-17/EN 301 489-52 EN 301 328/EN 301 440/EN 301 511/EN 301 908-1/EN 301 908-2 |
