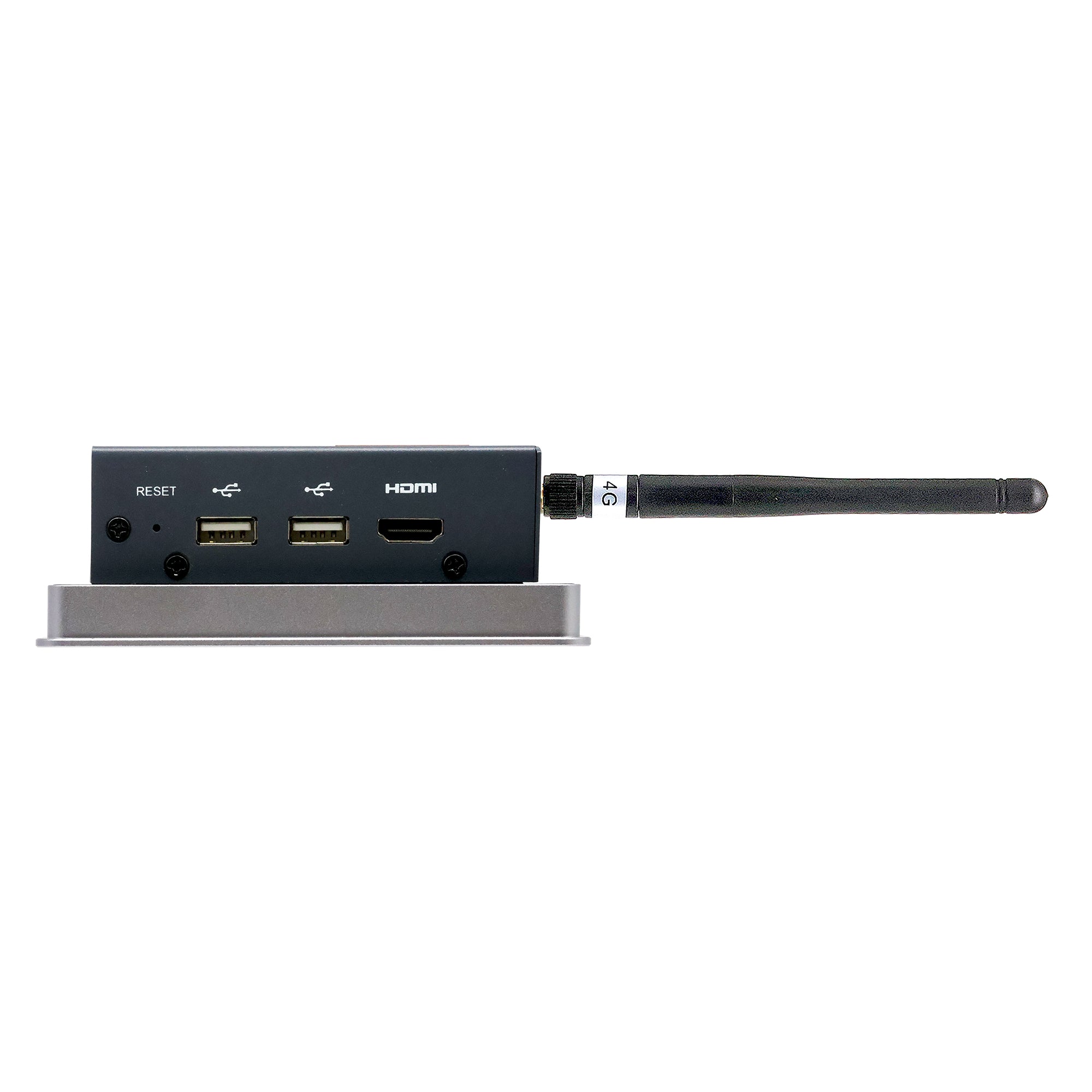

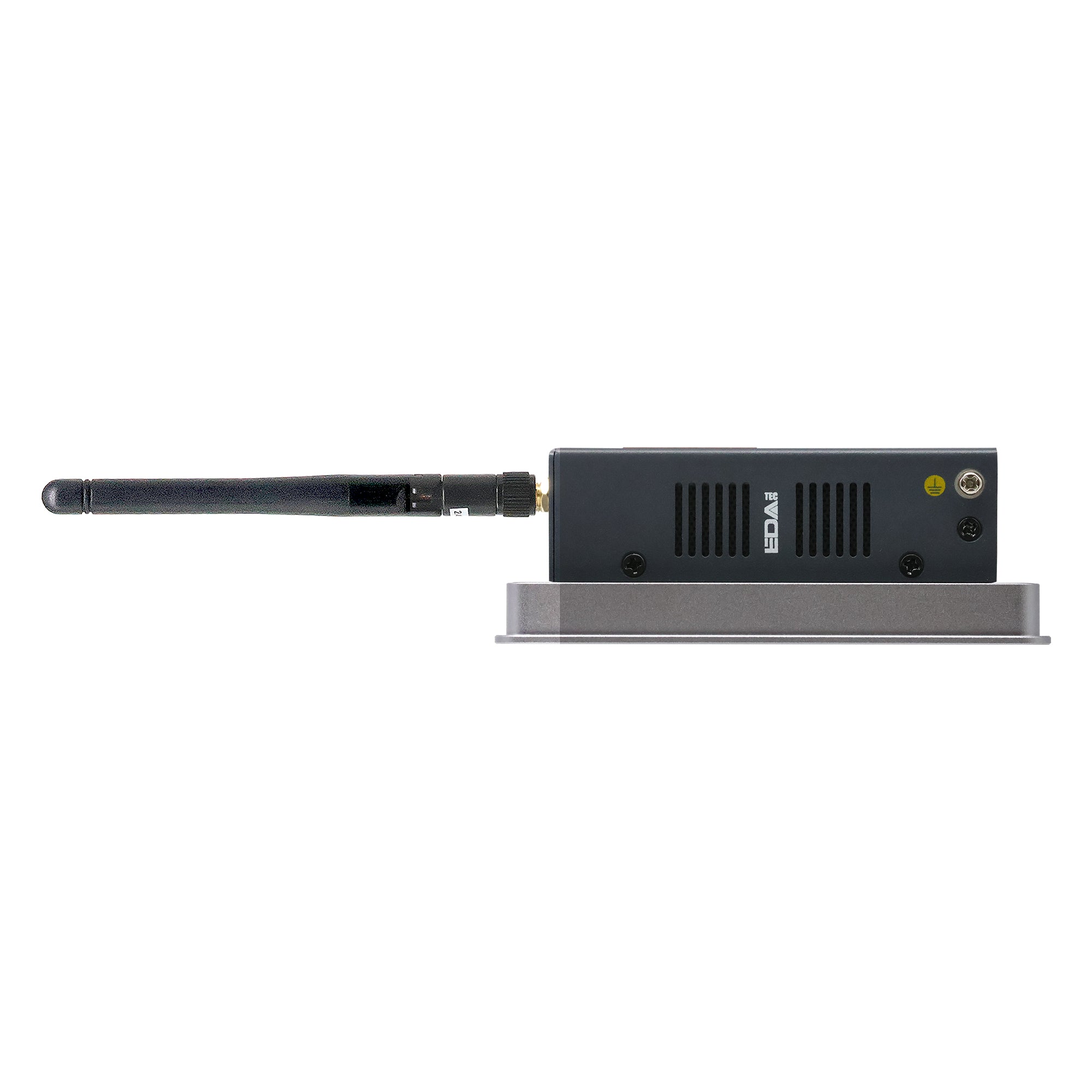

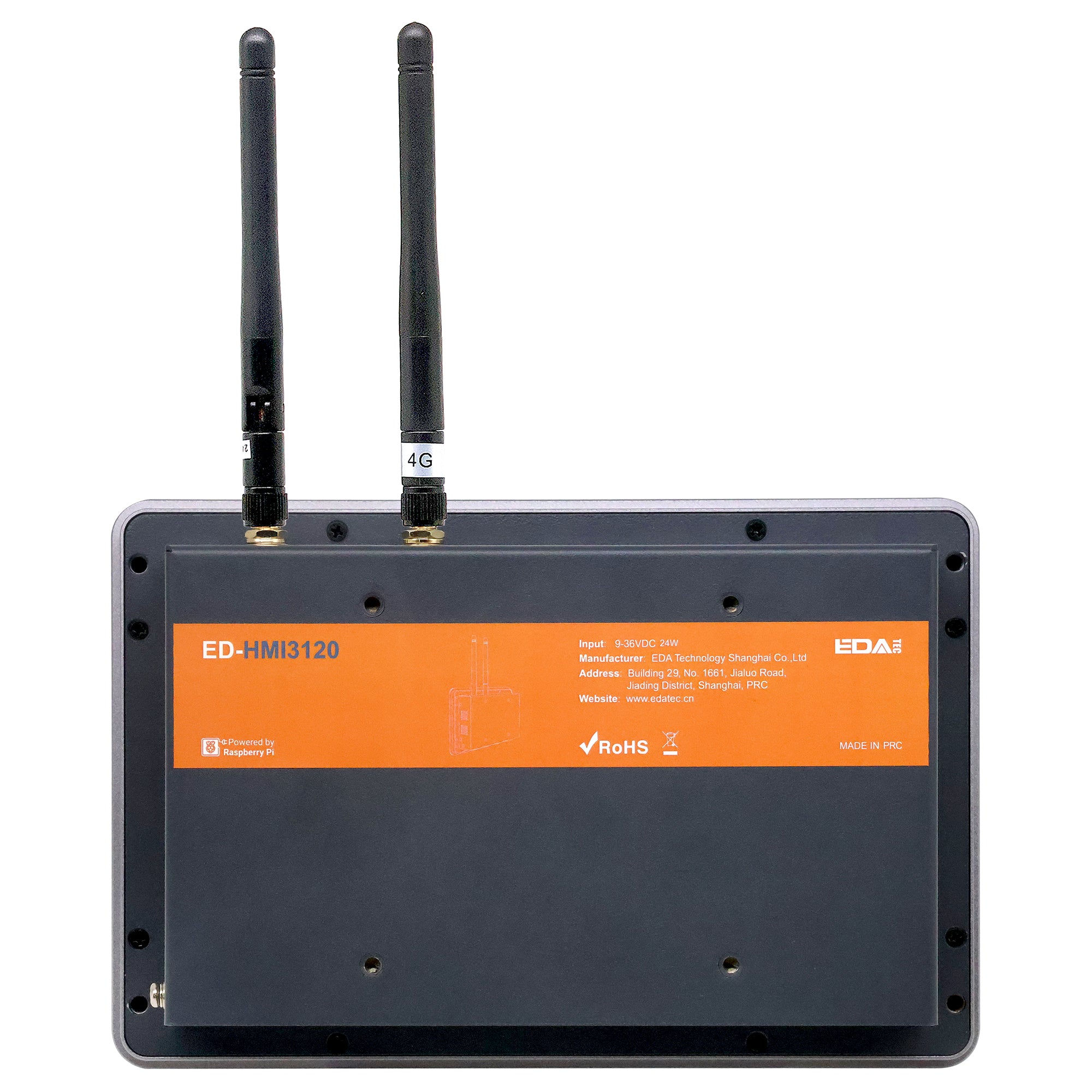

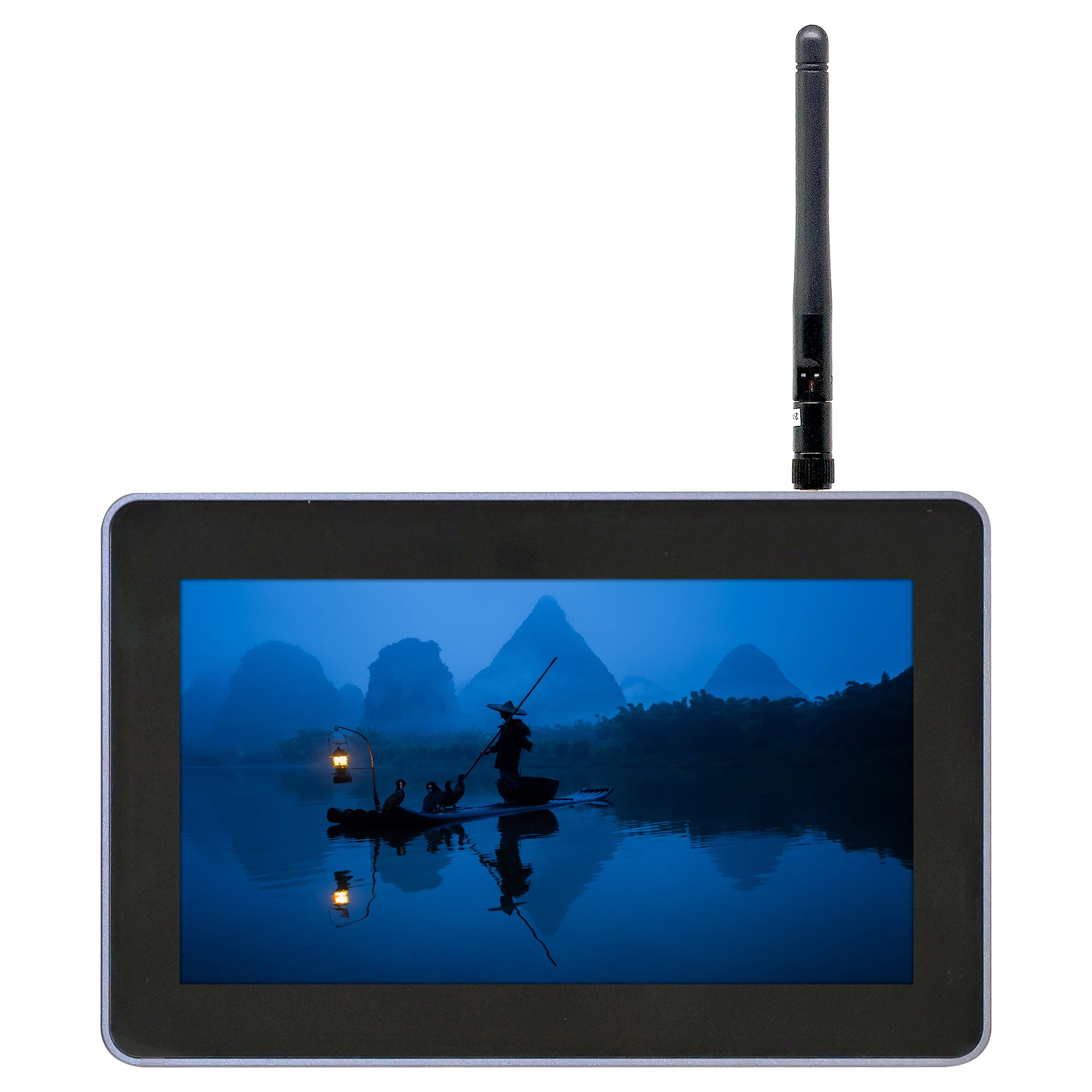

ED-HMI3120-070CC – 7" Industrial HMI with CM5 & optional camera

The ED-HMI3120-070CC is a modern, compact 7-inch industrial HMI based on the powerful Raspberry Pi Compute Module 5 (CM5). With its capacitive multi-touch display, robust metal housing, and wide operating temperature range, the device excels in a variety of industrial applications – from machine control and process visualization to IoT edge solutions. The powerful CM5 platform offers significantly increased performance, high energy efficiency, and reliable long-term availability for professional B2B environments.

The HMI can be flexibly configured: RAM and eMMC are available in several sizes, WiFi/Bluetooth can be added as an option, and the "070CC" model also offers the option of an integrated camera. Thanks to its fanless metal housing and VESA and panel mount support, the ED-HMI3120-070CC can be easily integrated into machines, control cabinets, or control panels.

The modular EDATEC Ordering Code allows for individual configuration according to project requirements – ideal for customized industrial applications where performance, connectivity and expandability are crucial.

Product variants

The ED-HMI3120-070C series offers several configurable versions for various industrial applications:

• ED-HMI3120-070CC – Version with optional integrated camera

• ED-HMI3120-101CC

A notice:
All variants of the HMI3120 series are available upon request.

Technical data

Individual configuration (Ordering Code) - Your custom-made ED-HMI3120-070C

The EDATEC Ordering Code enables flexible, project-specific configuration of the ED-HMI3120-070C. Customers can tailor the device precisely to their industrial requirements.

• RAM: 2 GB / 4 GB / 8 GB / 16 GB

• eMMC storage: 16 GB / 32 GB / 64 GB

• Camera option: Marking “C” for models with camera (e.g. “070CC”)

• Wireless: Device optionally with or without WiFi & Bluetooth

• 4G/LTE: Codes like "4EU" stand for versions with an integrated mobile communication module.

• Supercapacitor module (optional):

  • Short-term emergency power supply

  • Protection against voltage dips

  • Protection against data loss

  • Ideal for industrial environments with potentially unstable power supplies

• Accessories: Power supplies, mounting kits, cables, expansion modules, etc.

We configure each variant individually – perfect for industrial applications that require maximum reliability and flexibility.

Scope of delivery

• 1× ED-HMI3120-070CC

• 1× Quick Start Guide

• Power supply not included (available separately)

• Optional accessories depending on the selected configuration

Areas of application

Perfect for professional industrial and B2B applications:

• Machine and plant controls

• Building Automation & Smart Building

• Edge computing & IoT gateway solutions

• Process visualization & SCADA

• Manufacturing and production monitoring

• Logistics and warehouse terminals

• Workshop and test bench displays

Notes

• Camera, wireless and 4G are optional features.

• Supercapacitor module also optional

• Power supply not included

• All variants of the HMI3120 series are available upon request.
