EDATEC ED‑Pi5CASE-EXT – Expandable metal case with integrated heatsink for the Raspberry Pi 5

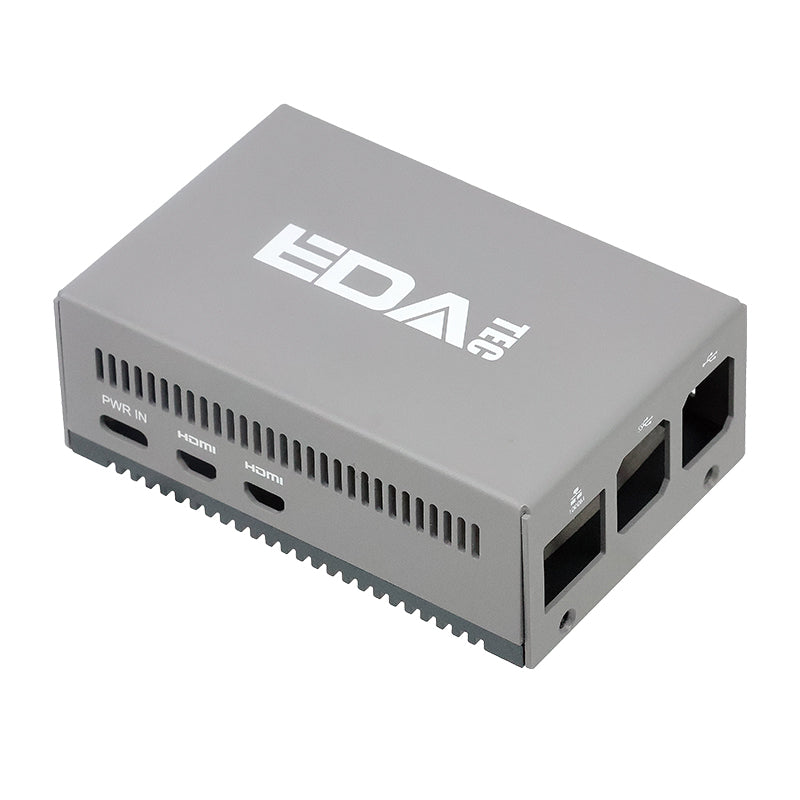

The EDATEC ED-Pi5CASE-EXT is a custom-designed metal case for the Raspberry Pi 5 with an integrated passive heat sink . It combines optimal protection, effective heat dissipation, and full interface accessibility in a high-quality design.

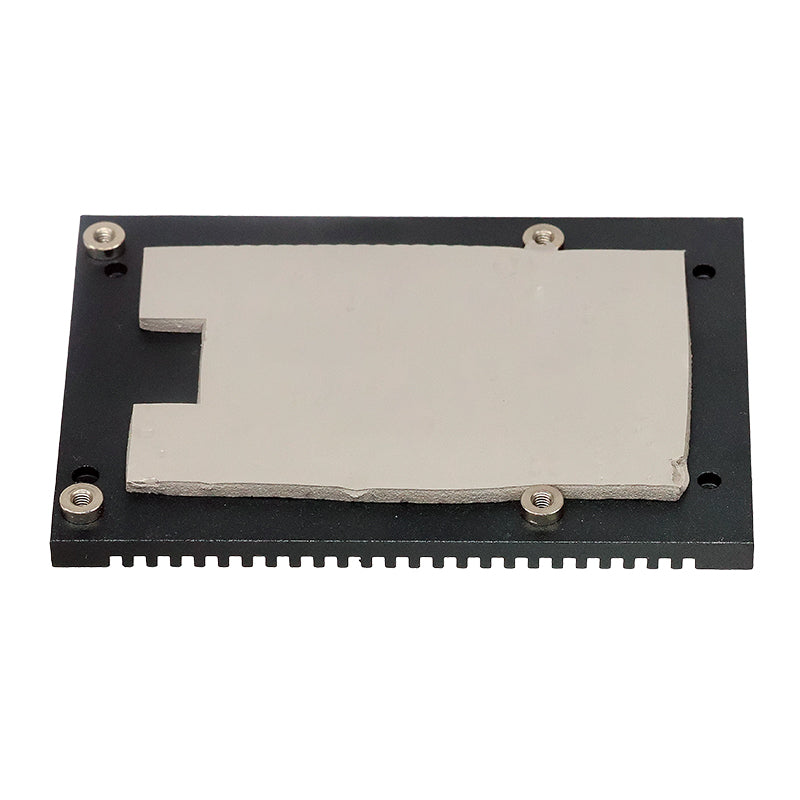

Constructed from robust sheet steel and CNC-machined aluminum, it ensures durability even in industrial or harsh environments . The passive cooling fins reliably dissipate heat from the CPU, RAM, and PMIC, supported by prefabricated thermal pads. This allows the Raspberry Pi 5 to operate stably even under high continuous load – without fan noise or thermal throttling.

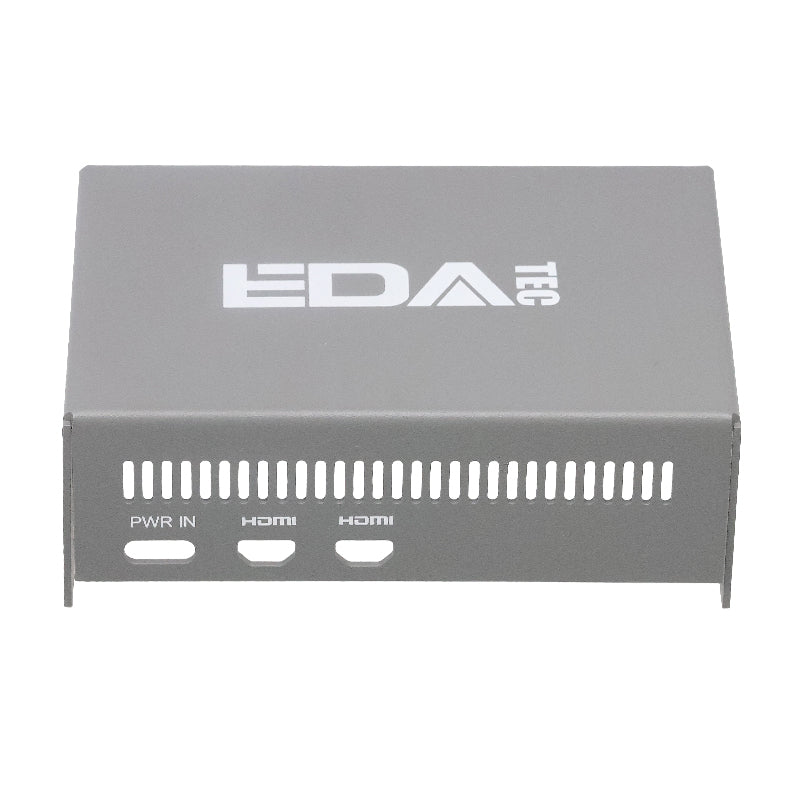

Thanks to the open design, all ports – including GPIO, CSI/DSI, USB, HDMI, and Ethernet – remain fully usable. The removable cover facilitates access to the GPIO pins and makes the case particularly attractive for developers, prototyping, and B2B applications such as edge computing, automation, or embedded solutions .
With a VESA-compatible back, compact size, and matte black finish, the ED-Pi5CASE-EXT fits seamlessly into labs, workshops, or control cabinets.
Technical data
| Characteristic | Value |
|---|---|
| material | Sheet steel + CNC aluminum (anodized) |
| Color | matte black |
| compatibility | Raspberry Pi 5 |
| cooling | Passive heatsink + thermal pads (CPU, PMIC, RAM) |
| Dimensions | 92.1 × 72.0 × 29.3 mm |
| Weight | approx. 177 g |
| Special features | Full interface accessibility, VESA mounting |
Scope of delivery
-
1× ED‑Pi5CASE-EXT aluminum case (top and bottom)
-
3× thermal pads (pre-cut for CPU, PMIC, RAM)
-
1× mounting set (screws, spacers, rubber feet)
Note: Raspberry Pi 5 is not included.
Product variants
The ED-Pi5CASE-EXT is designed for the Raspberry Pi 5 in combination with PCIe expansions such as the official EDATEC M.2 HAT+. Its modular design allows for easy integration of additional expansions without compromising cooling performance or port accessibility.
Areas of application
-
Industrial control systems and automation
-
Edge computing solutions in the B2B sector
-
Embedded systems and IoT projects
-
Prototyping, development and test environments
-
Secure integration in control cabinets and VESA mounts
