EDATEC Pi4Case-OB Passive Heatsink for Raspberry Pi 4 Open

EDATECSKU: ED-Pi4Case-OB
Delivery time: Currently not in stock, will be reordered for you
No reviews

Price:
Sale price3,95 €

Shipping calculated at checkout

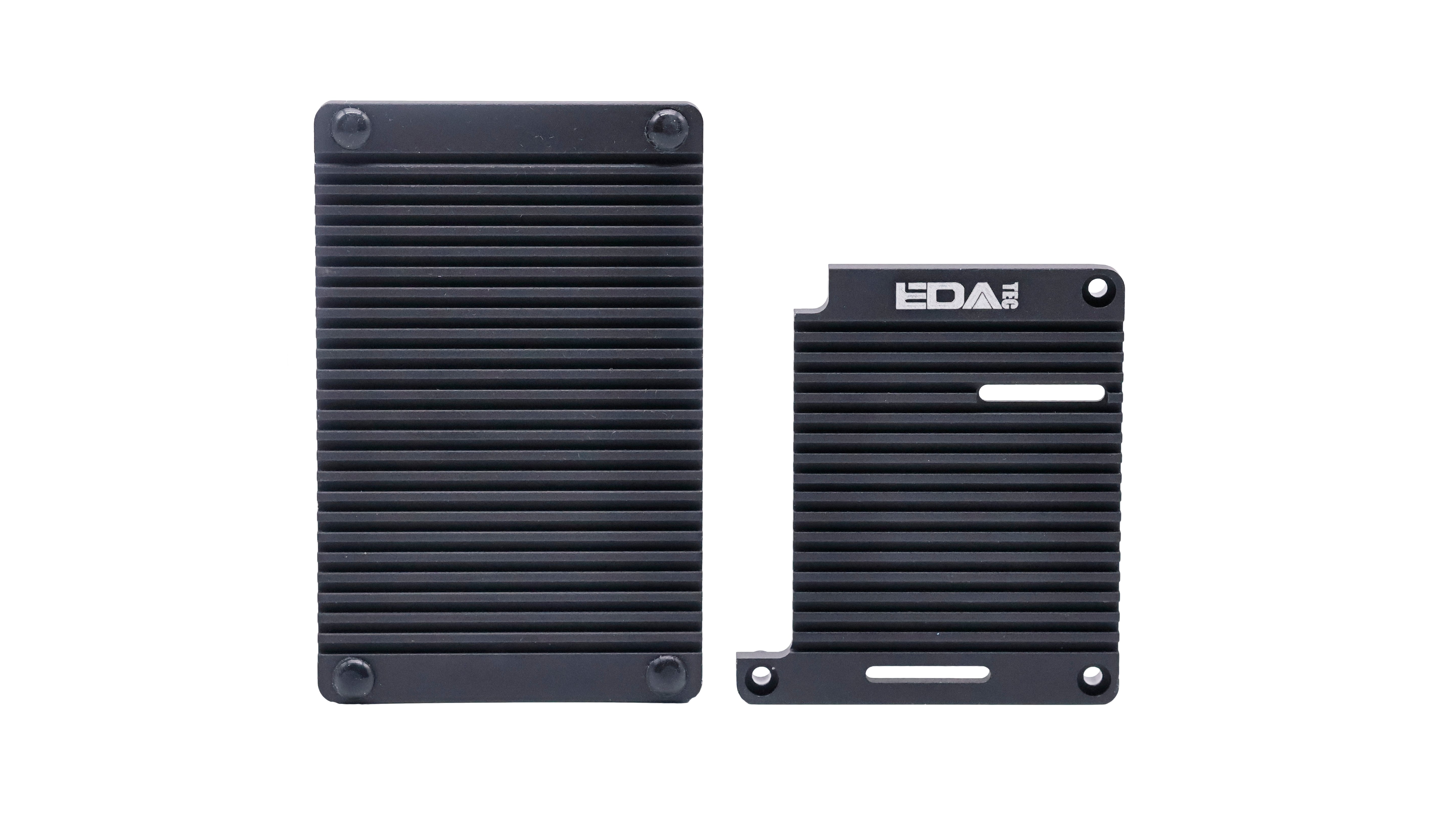

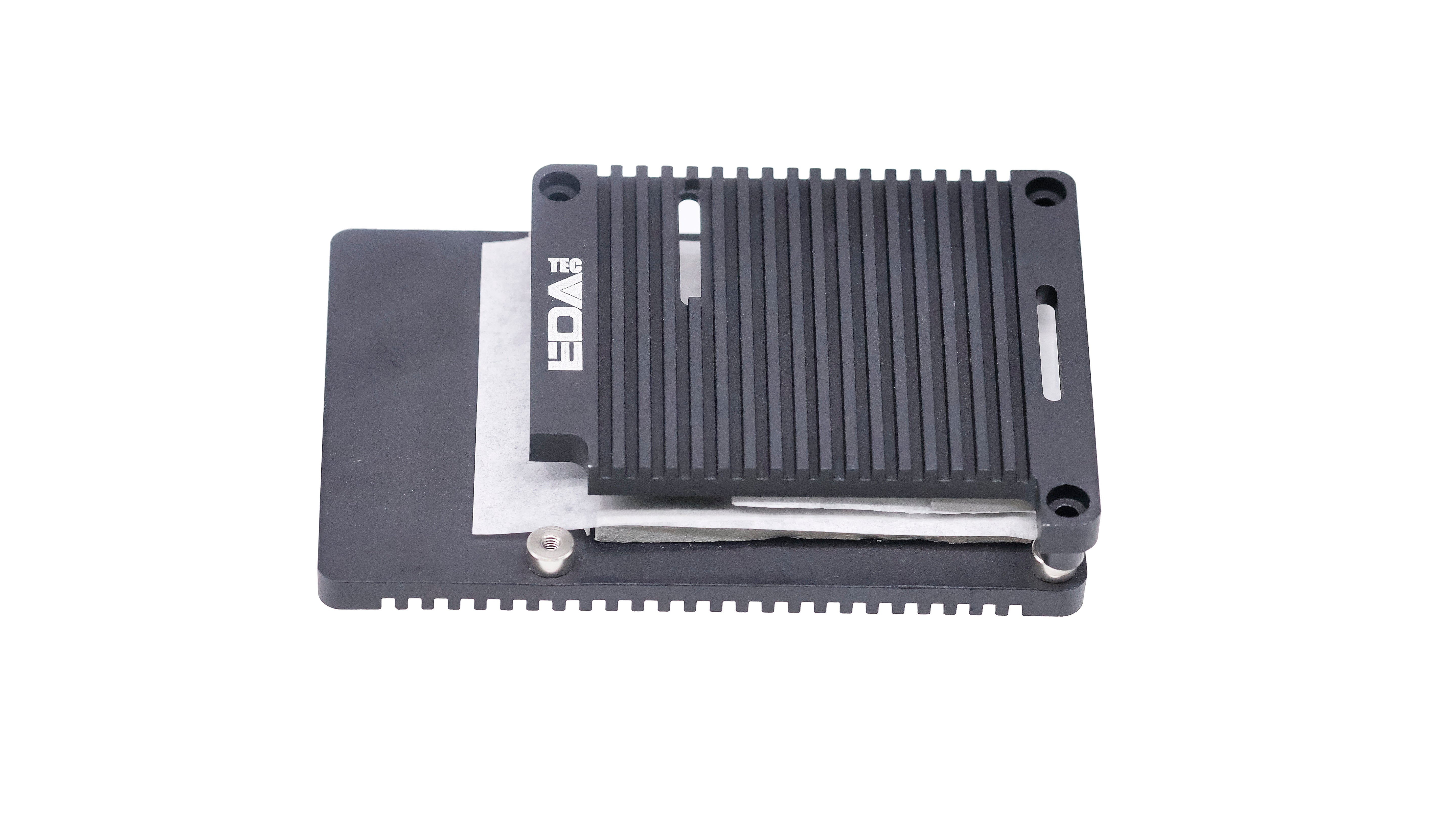

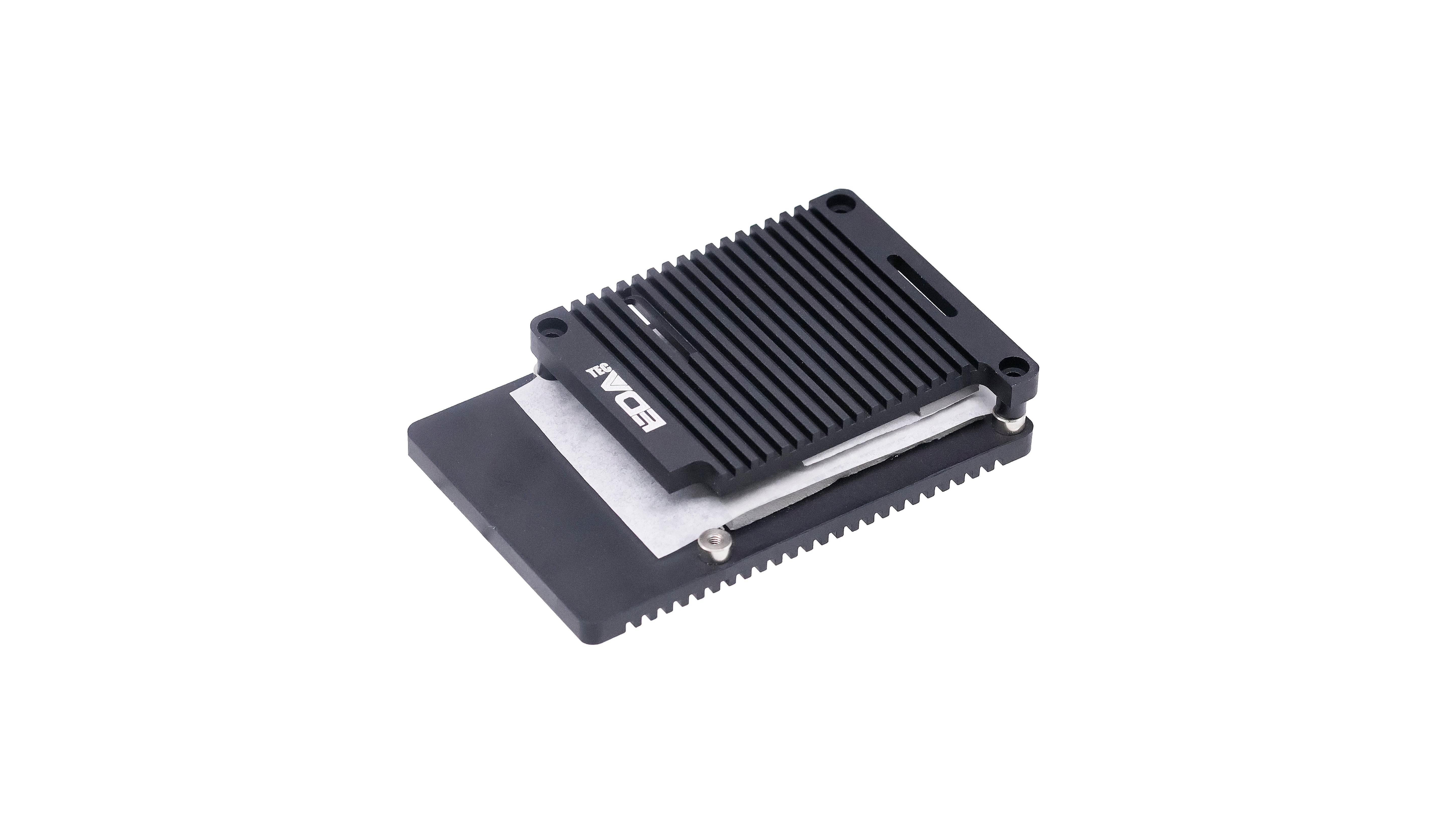

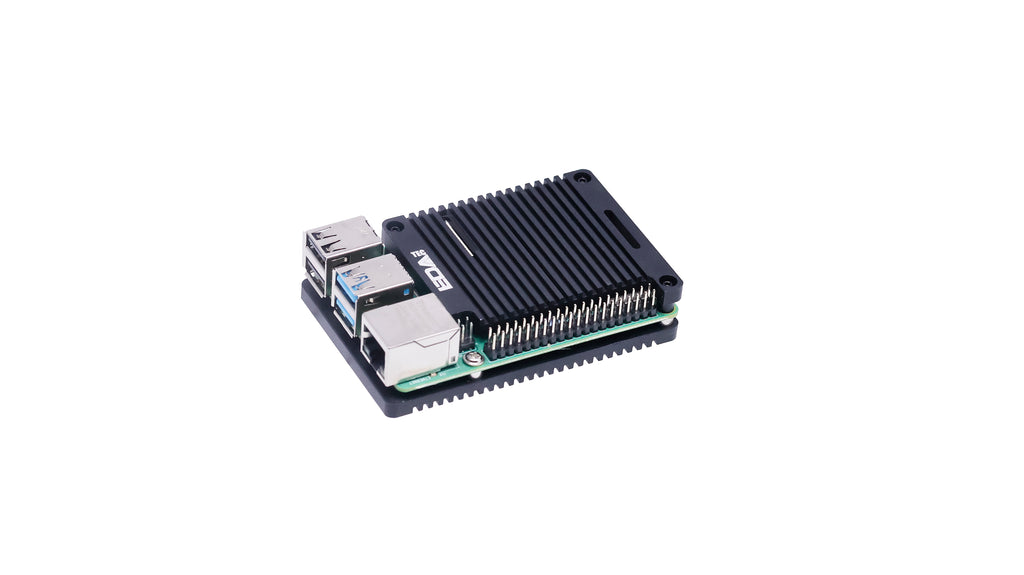

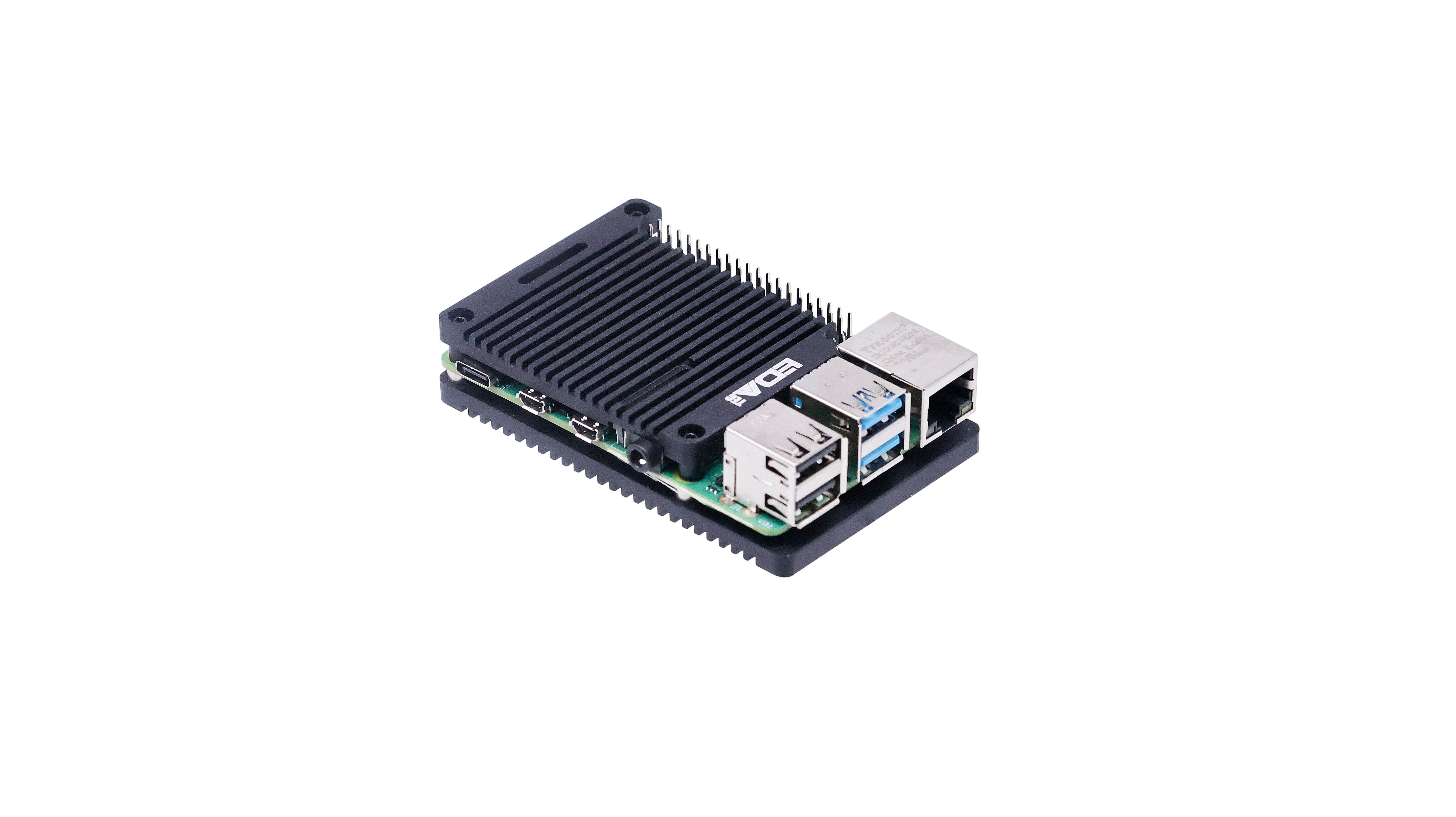

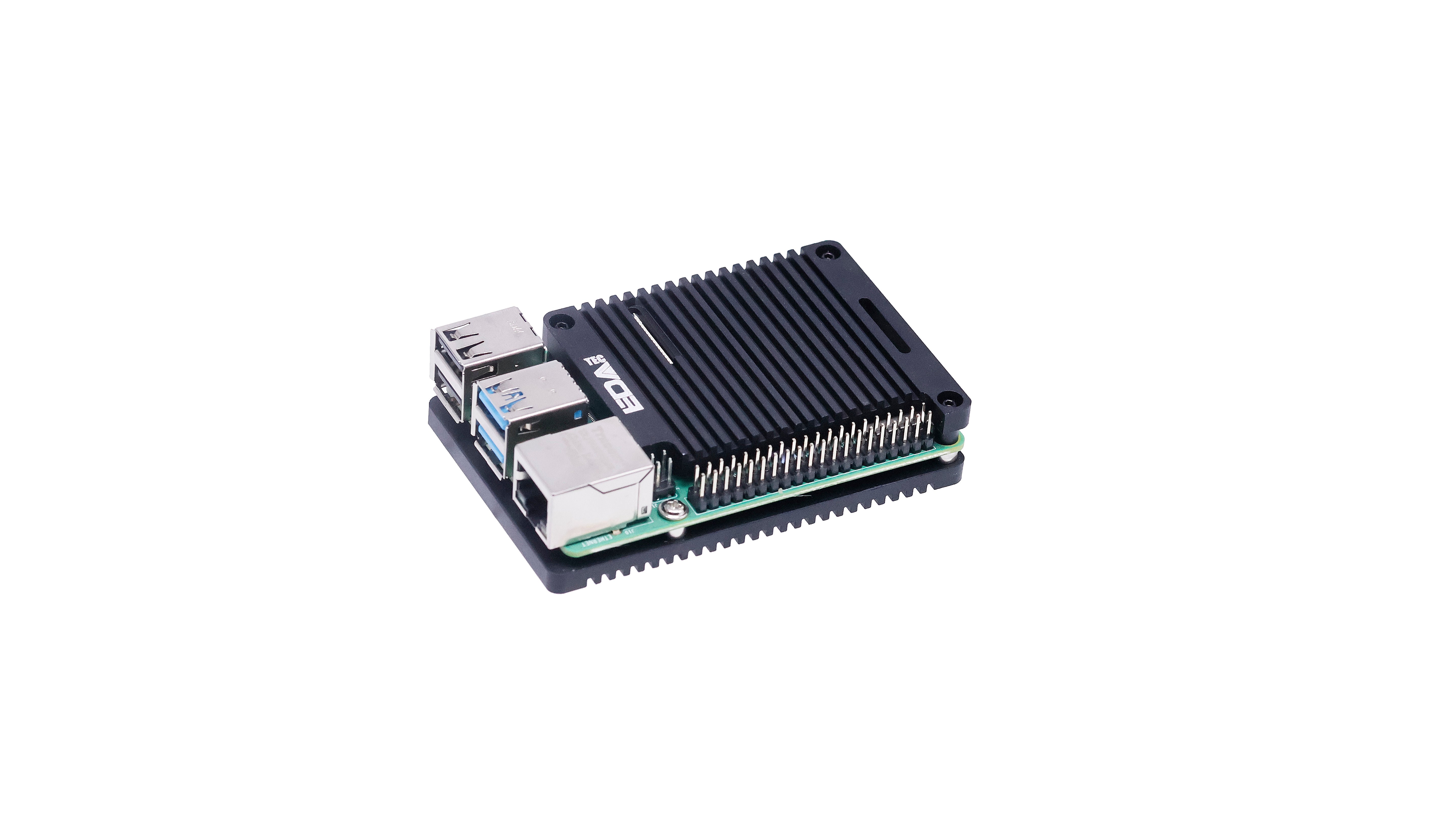

EDATEC Pi4Case-OB – High-quality aluminum case with passive cooling for the Raspberry Pi 4

The EDATEC Pi4Case-OB is a high-quality aluminum case for the Raspberry Pi 4 , offering maximum stability and efficient cooling without a fan. Crafted from CNC-machined aluminum with an anodized finish, it combines modern design with technical precision. The integrated thermal pads enable passive cooling, which reduced the CPU temperature by up to 25°C in testing. This ensures the Raspberry Pi remains reliably stable even under continuous load at a clock speed of 1.8 GHz.

Thanks to the precise housing design, all connections are easily accessible. Installation is straightforward and can be completed quickly with the included mounting kit. With its low weight of just 120 g and compact design, the housing is perfectly suited for industrial applications, IoT projects, or continuous operation.

The Pi4Case-OB not only reliably protects the Raspberry Pi 4 from mechanical influences, but also ensures a long service life and optimal heat dissipation thanks to its high-quality materials. This makes it the ideal choice for users seeking a robust, durable, and powerful case for their Raspberry Pi.

    Technical data

    Characteristic specification
    material CNC-machined aluminum, anodized
    Color matte black
    cooling Passive via aluminum housing + thermal pads
    compatibility Raspberry Pi 4
    Dimensions Top: 65 × 56.5 × 5 mm / Bottom: 88.5 × 56.5 × 5 mm
    Total height (incl. Pi) approx. 19 mm
    Weight approx. 120 g

    Scope of delivery

    • 1× ED-Pi4Case-OB Top Cover (incl. 3 nylon posts)

    • 1× ED-Pi4Case-OB Bottom Cover (with pre-installed thermal pads)

    • 3× M2.5×11 screws

    • 1× M2.5×4 screw

    • 1× 1.5 mm Allen key

    Note: The Raspberry Pi 4 is not included.

    Areas of application

    • Industrial automation and control systems

    • IoT and edge computing solutions

    • Long-term operation in data centers or test environments

    • Applications with high continuous load without active cooling

    • Projects that require a durable, robust enclosure


    FAQ

    Ask:Does the case also fit the Raspberry Pi 3 or 5?
    Answer:No, it is designed exclusively for the Raspberry Pi 4.

    Ask:Do I need to use additional cooling paste?
    Answer:No, the included thermal pads already ensure optimal heat transfer.

    ED-Pi4Case-OB-Datasheet-English

    Assembly instructions

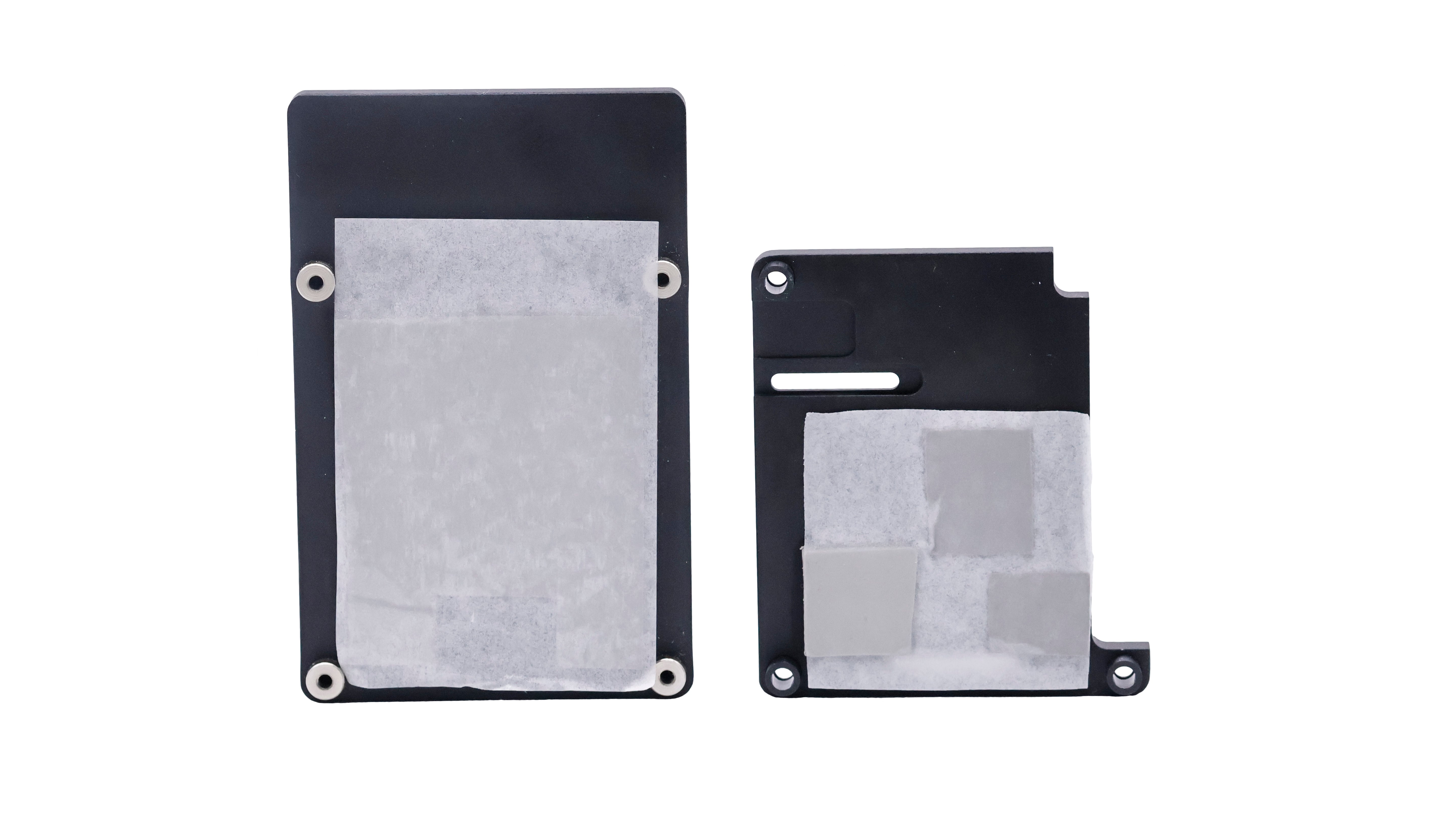

    1. Remove the white protective paper from the thermal pads in the case.
    2. Place the Raspberry Pi 4 on the base plate and align it with the holes.
    3. Put the top part on and secure everything with the enclosed screws.
    4. Make sure the three nylon posts in the upper section are at the same height. Gently adjust if necessary.

    Notes

    • Passive cooling does not replace an active fan in extreme conditions
    • Raspberry Pi 4 sold separately
    • Only compatible with Raspberry Pi 4
