Product features
CPU & GPU
- Processor: 1x NVIDIA Grace ™ 72-core Neoverse V2 CPU (ARM-based)
- GPU: 1x NVIDIA Blackwell Ultra GPU
- MIG: Multi-instance GPU for up to 7 MIGs
- optional: 1x dedicated NVIDIA Blackwell GPU for graphics rendering, e.g. RTX Pro 2000 Blackwell
RAM
- total coherent memory: 748GB, linked via NVLink ®-C2C, at 900 GB/s interconnect bandwidth
- CPU memory: 496GB ECC LPDDR5X, 396 GB/s memory bandwidth
- GPU memory: 252GB ECC HBM3e, 7.1 TB/s memory bandwidth
Networking
- Dual-port QSFP112 400GbE LAN via NVIDIA ConnectX-8 SuperNIC (= 800 Gbit/s bandwidth total)
- 1x RJ45 1GbE Dedicated BMC LAN port
- 1x RJ45 10GbE LAN port

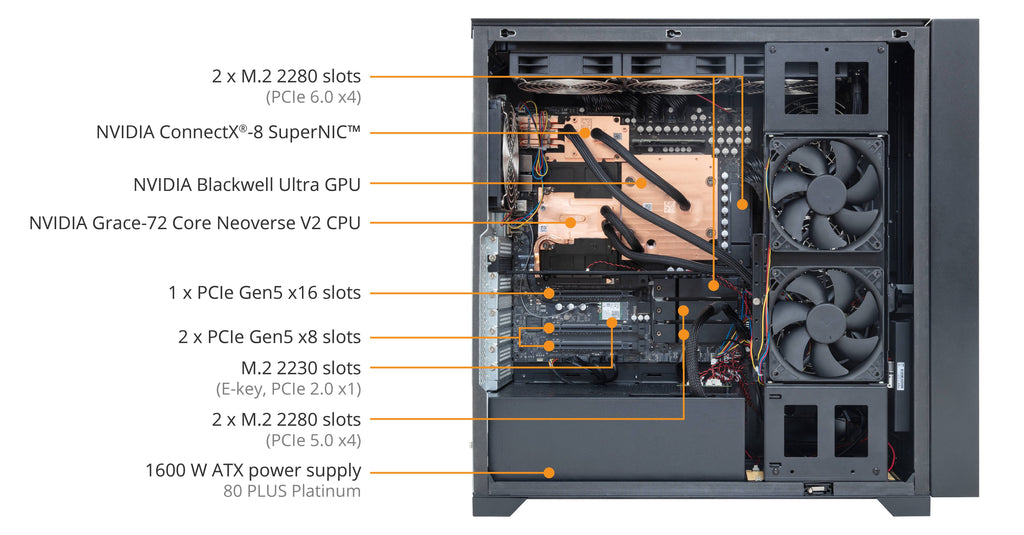

Storage
- 2x M.2 PCIe 5.0 x4 NVMe (M-key 2280), from CPU, with software RAID 1 support
- 2x M.2 PCIe 6.0 x4 NVMe (M-key 2280), from ConnectX-8
- populated with 4x 2TB SSDs - configurable
PCIe Slots
- 1x PCIe Gen 5 x16 FHFL double-width, for GPUs
- 2x PCIe Gen 5 x8 (in x16) FHHL
- 1x M.2 PCIe 2.0 x1 slot (E-Key 2230)), for WiFi, from ConnectX-8

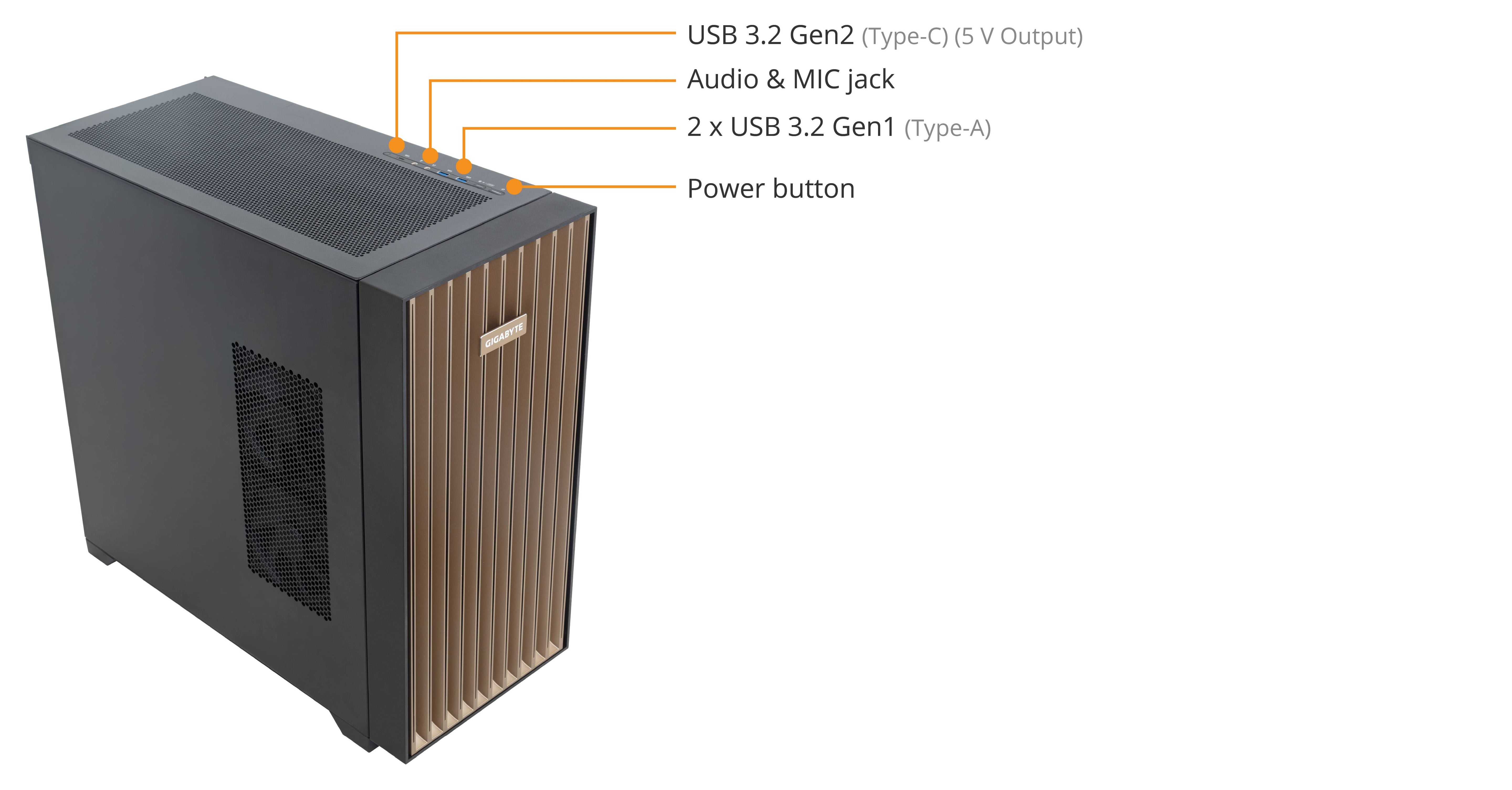

Front IO Ports and Connectors
- 1x USB 3.2 Gen2 port (Type-C) (5V Output)
- 2x USB 3.2 Gen1 ports (Type-A)
- 2x Audio jacks (Audio out/Mic)
- 1x power button with LED
- 1x reset button with storage activity LED

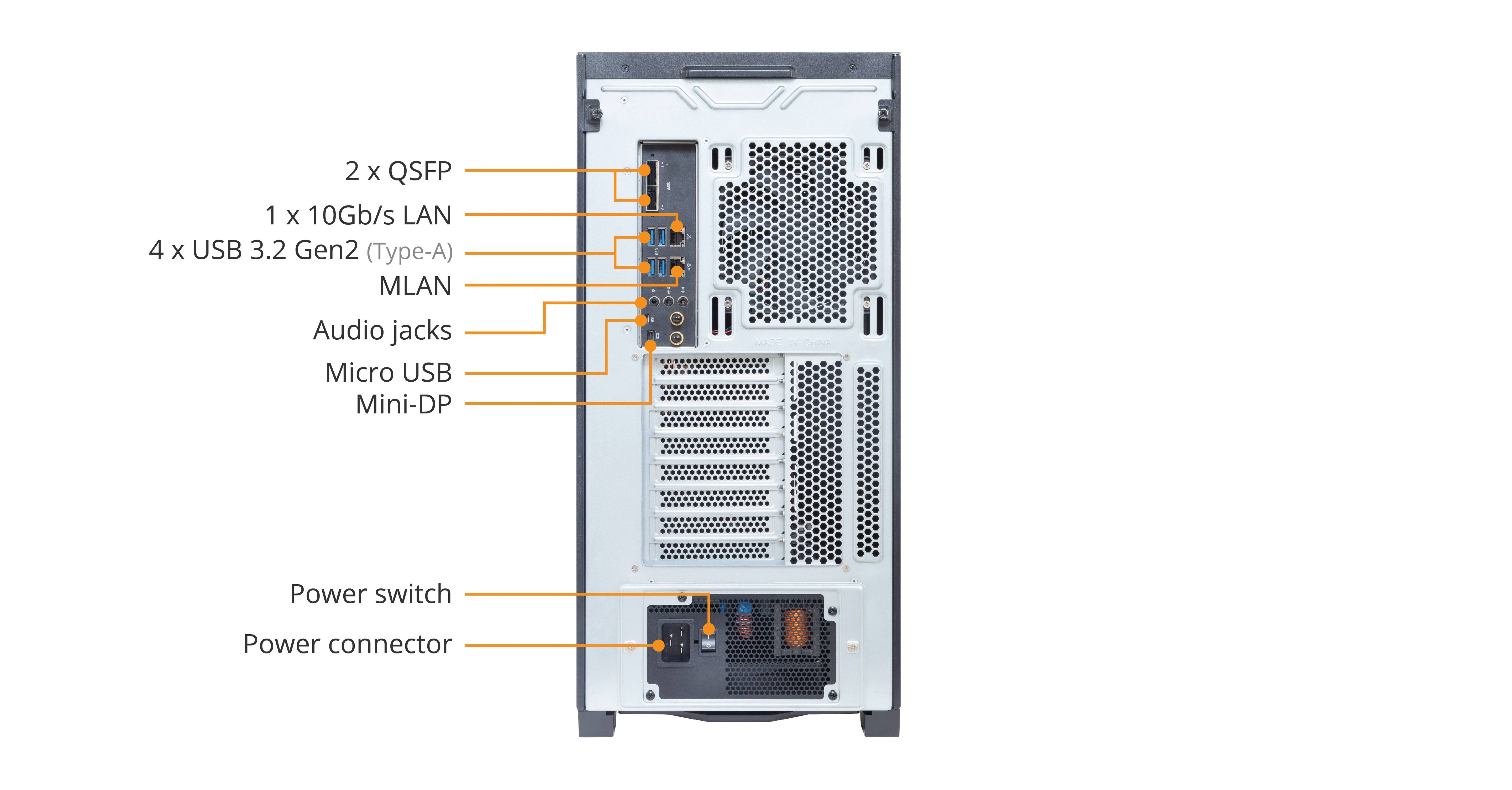

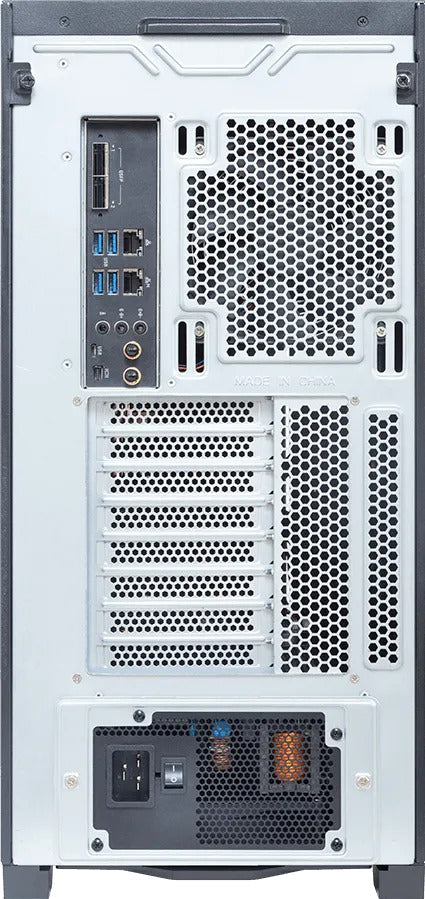

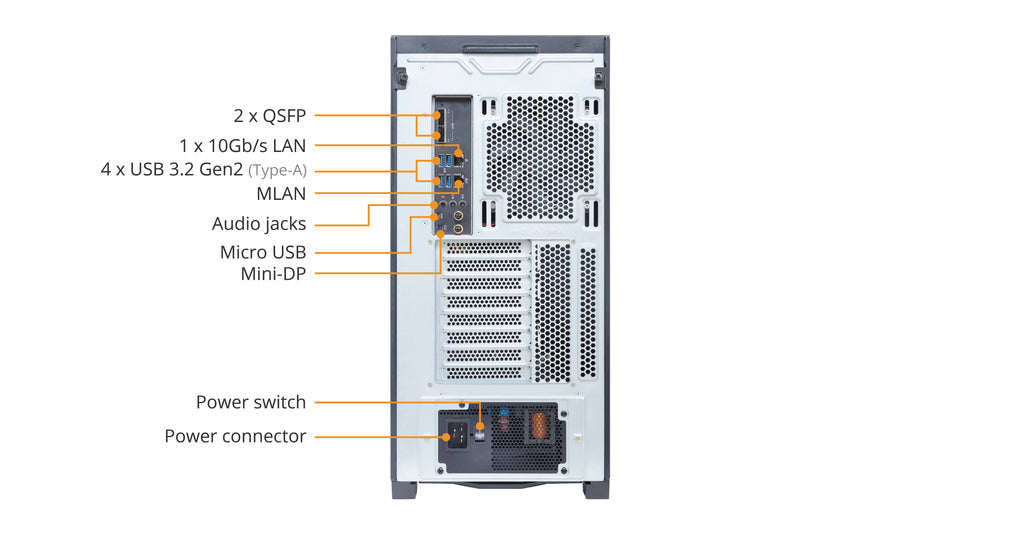

Rear IO Ports and Connectors
- 4x USB 3.2 Gen2 ports (Type-A, 10 Gbit/s)
- 1x microUSB port (USB-to-UART)
- 1x mini-DP (video port, 1920 x 1080 @ 60 Hz)
- 2x QSFP ports
- 1x RJ45 port 10 Gbit/s Ethernet
- 1x MLAN port 1 Gbit/s Ethernet
- 2x Wi-Fi antenna ports
- 3x Audio jacks (Audio in/Audio out/Mic)
OS & security
- security hardware: Silicon Root of Trust (RoT) – NIST 800-193 Compliant
- BIOS type: AMI 64MB SPI Flash EEPROM
- OS: Ubuntu 24.04 LTS with NVIDIA AI Developer Tools
- pre-installed with essential CUDA-X™ libraries
IT manageability and enterprise features
- out-of-band telemetry via BMC
- Redfish API support
- NVIDIA Data Center GPU Manager
- visibility, monitoring, remote management capabilities
- hardware root of trust
- enterprise secure boot
Dimensions, weight, form factor
- Form factor: desktop tower
- height: 500.4 mm
- width: 245 mm
- depth: 531 mm
- packaging dimensions: 732 x 400 x 775 mm
- net weight: 29,2 kg
- gross weight: 34,4 kg

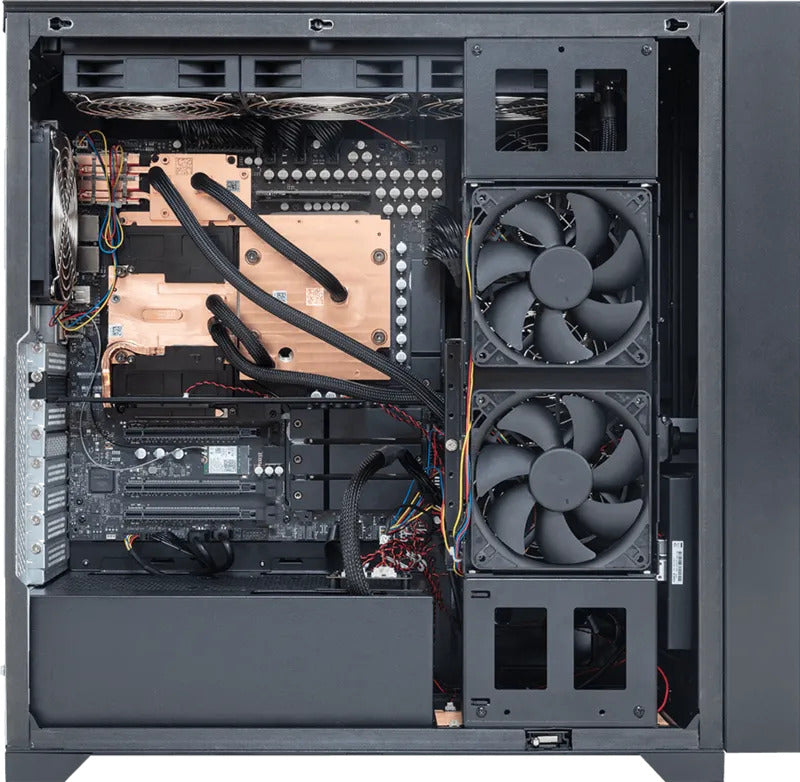

System cooling
- cooling system: closed-loop liquid cooling (suitable for office use)
- liquid cooling: Direct to Chip (D2C) Cold Plate
- 3x 120x120x25mm System Fans
Power supply
- power supply: 1x 1600W ATX 80 PLUS Platinum power supply, 100 - 240V
- compatible with C19 power cord
- power input @ 1300W: 100-114Vac 15-8A / 47-63Hz
- power input @ 1600W: 115-240Vac 15-8A / 43-63Hz
Misc
- Audio: Realtek® ALC4080 Audio Codec
- operating temperature: 10°C to 35°C
- storage temperature: -40°C to 60°C (-40°F to 140°F)
- operating relative humidity: 8% to 80% (non-condensing)
- storage relative humidity: 20% to 95% (non-condensing)
To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
packing content:
- 1 x W775-V10-L01 Gigabyte AI Supercomputer (NVIDIA DGX Station GB300)
- 1x Superchip liquid cooling kit
AI performance
- FP4 Tensor core: 20 PFLOPS / 15 PFLOPS without sparsity
- FP8 / FP6 Tensor core: 10 PFLOPS
- Int8 Tensor Core: 330 TOPS
- FP16/BF16 Tensor Core: 5 PFLOPS
- TF32 Tensor Core: 2.5 PFLOPS
- FP32: 80 TFLOPS
- FP64 / FP64 Tensor Core: 1.3 TFLOPS
Product description

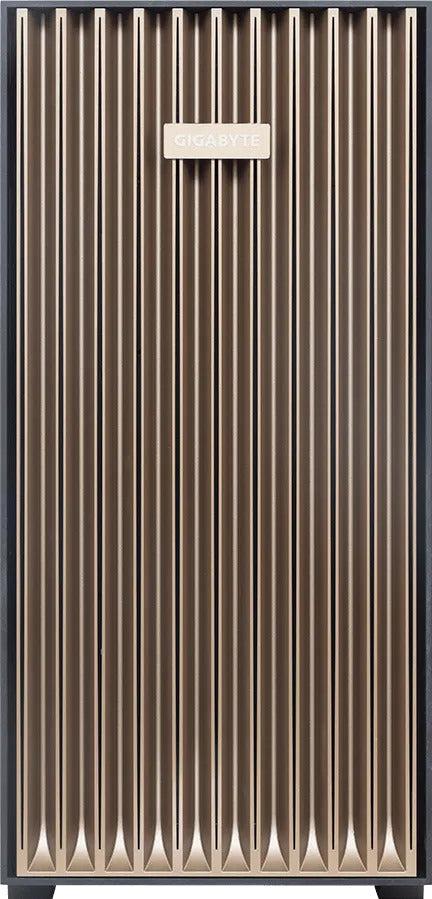

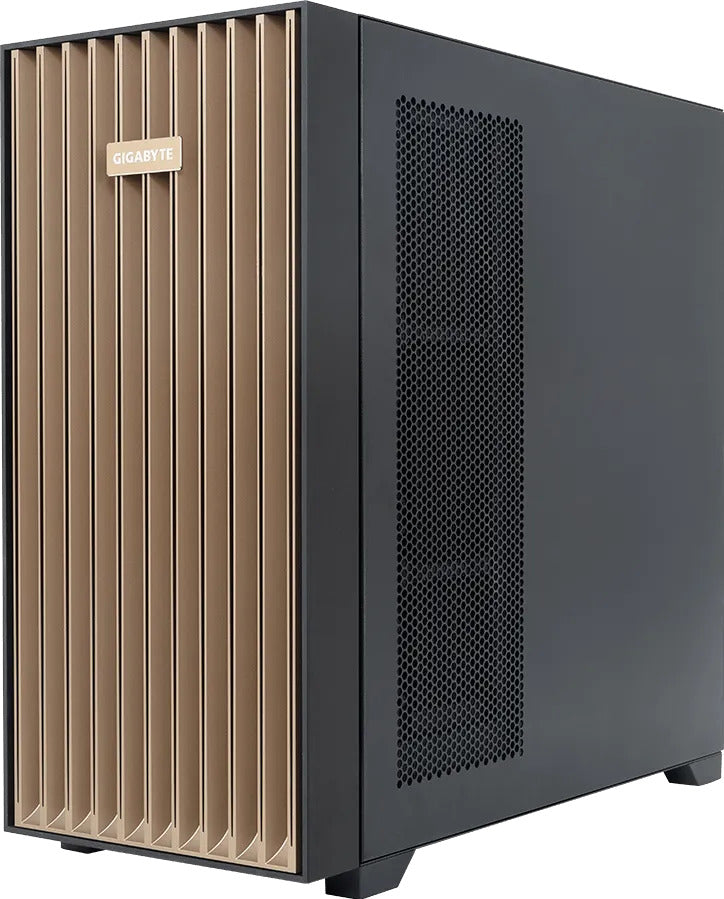

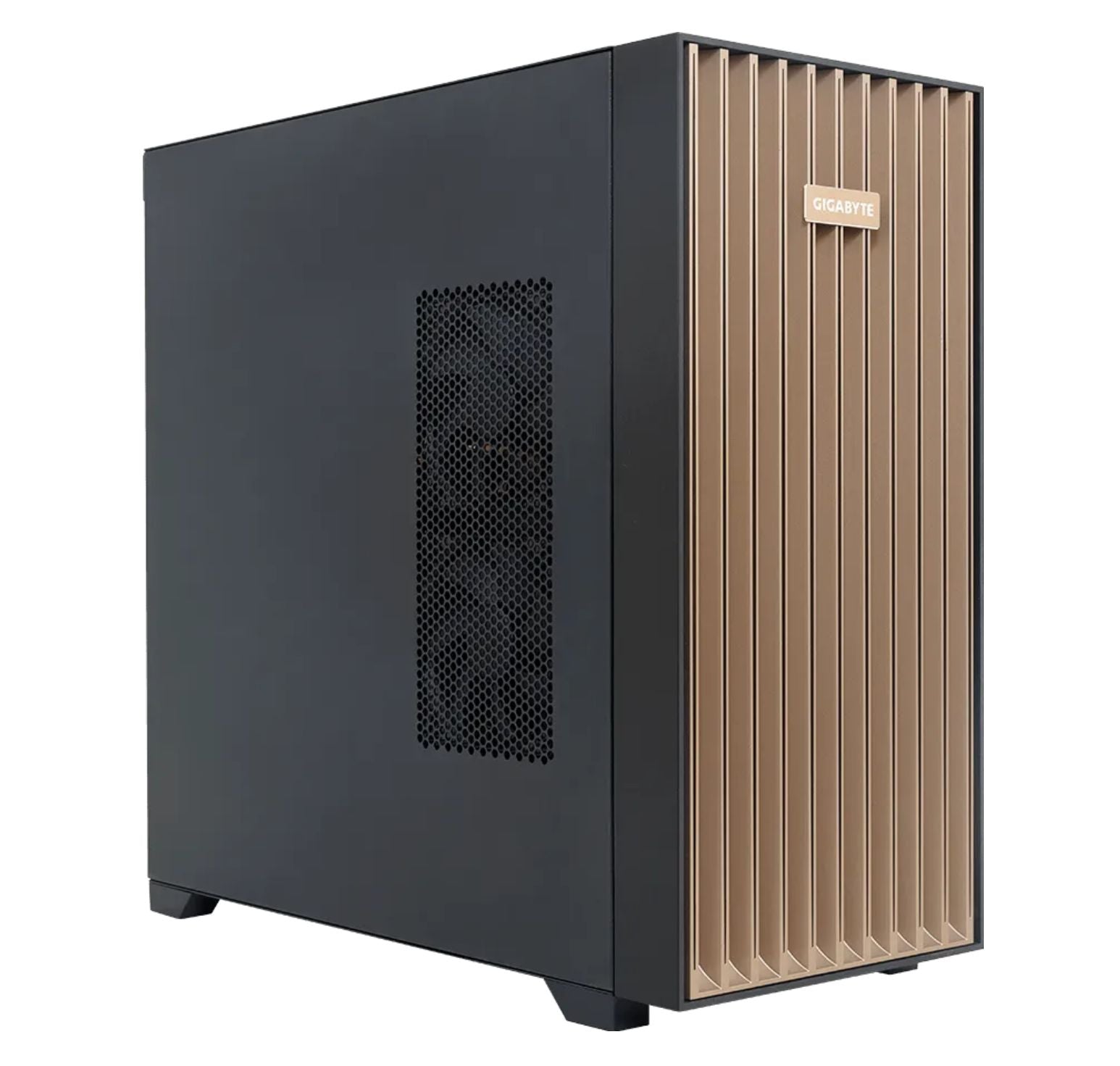

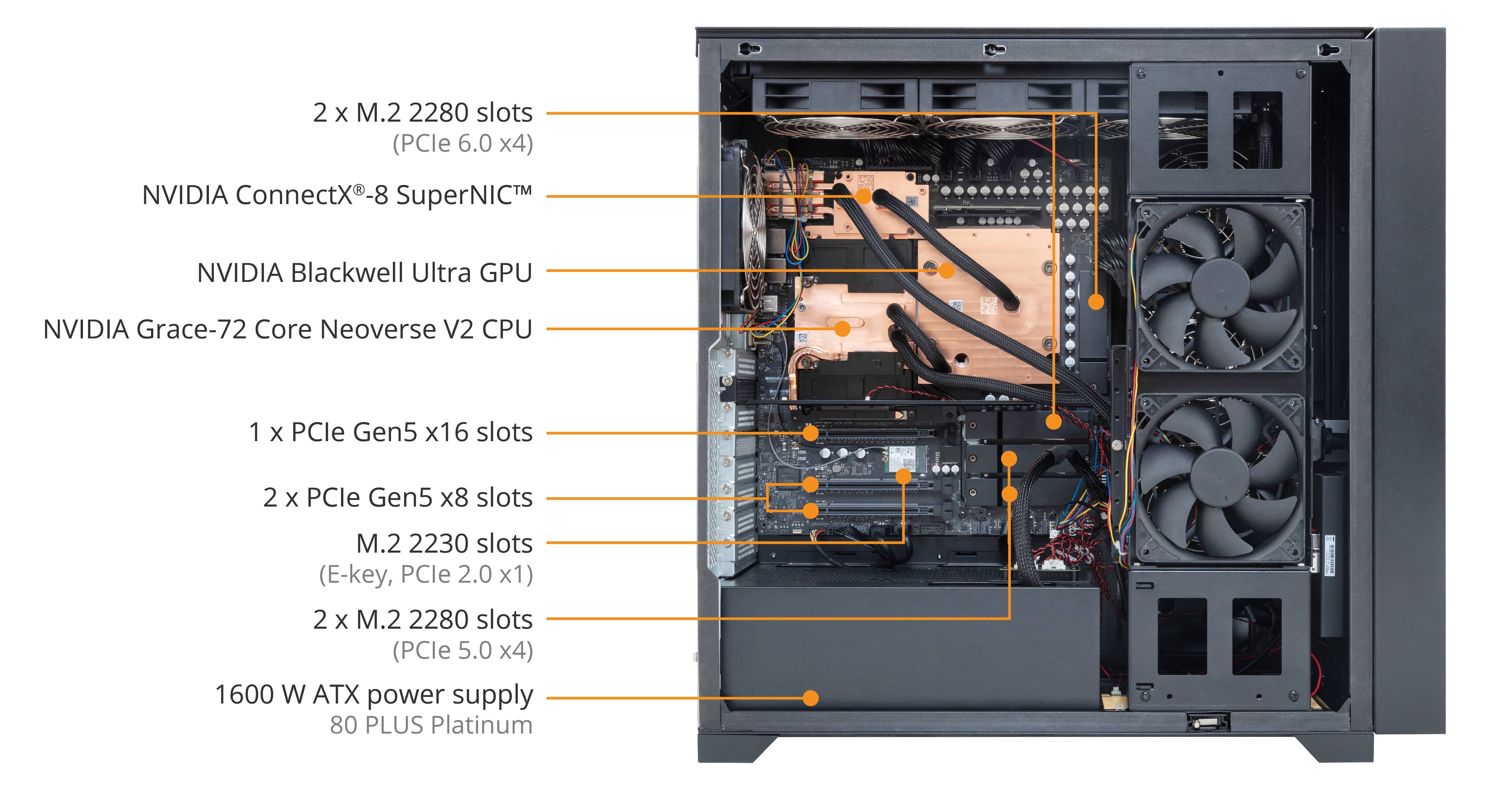

The Gigabyte W775-V10-L01 Deskside AI Supercomputer is an NVIDIA DGX Station based on the GB300 Grace™ Blackwell superchip. It can be used for running local AI applications for development and production purposes.
Example AI applications include LLM inference for frontier models of up to 1 Trillion parameters, scientific workloads (e.g. BioNeMo), finetuning models, hosting AI agents, and running RAGs for AI-enhanced document workflows. In particular it is well-suited to run MoE (mixture of experts) models.
Thanks to its MIG feature and its massive memory throughput it can be run headless to support several colleagues in a local workgroup.
Compared to server systems, or heavy multi-GPU systems, it runs cooler and quieter, and is uniquely suited for office use. Its server-grade management features, such as the integrated BMC, the Redfish API support, and enterprise secure boot allow to integrate it into a corporate IT management landscape.
Two W775-V10-L01 DGX Stations can be joined using the Dual-port QSFP112 400GbE LAN to serve even bigger models, increase precision, or general model performance.
A separately obtainable NVIDIA AI Enterprise software license provides a suite of software tools, libraries, and frameworks to fast-track your AI deployment on the Gigabyte DGX Station GB300.
Optional GPUs
One of the following optional GPUs can be added into the system to add graphics output options, and for scientific simulation and rendering workloads:
- NVIDIA RTX PRO 6000 Blackwell Workstation Edition
- NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition
- NVIDIA RTX PRO 4000 Blackwell SFF Edition
- NVIDIA RTX PRO 2000 Blackwell
Datasheets, manuals and additional downloads
- Gigabyte W775-V10-L01 Deskside AI Supercomputer - NVIDIA DGX Station GB300 datasheet (PDF)
- Gigabyte W775-V10-L01 user manual (PDF)
- Gigabyte W775-V10 BMC user guide (PDF)
Lead time & purchase
This product is available on pre-order with a current lead time of about 4-6 weeks. Contact us to purchase it.
Additional SKUs and codes
-
model number: W775-V10-L01
- Gigabyte ordering number / part number barebone package: 6NW775V10MR000L01
