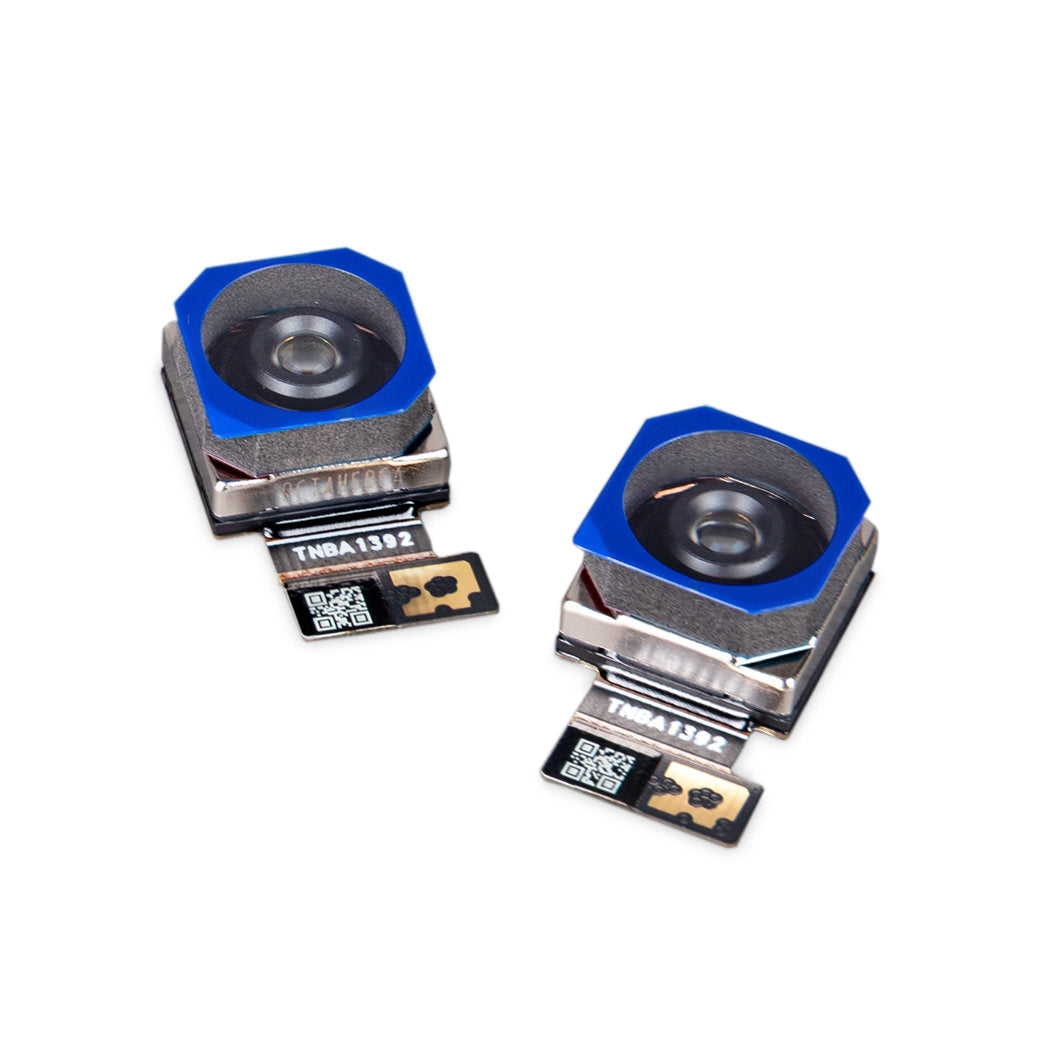

Raspberry Pi Camera Module 3 Sensor Assembly – 12MP, PDAF, HDR

Raspberry PiSKU: RP-SC0893-Cam3Sen | EAN / Barcode: 5056561805900
Delivery time: Currently not in stock, will be reordered for you
No reviews

Price:
Sale price17,90 €

Shipping calculated at checkout

High-resolution Raspberry Pi Camera Module 3 Sensor Assembly with 12 MP & HDR

The Raspberry Pi Camera Module 3 Sensor Assembly offers developers and industry partners a compact and powerful camera solution. Equipped with the Sony IMX708 sensor, it delivers 12 megapixels , High Dynamic Range (HDR) , and Phase Detection Autofocus (PDAF) for clear images in a wide range of lighting conditions.

The modular, housing-less design is ideal for integration into OEM devices and saves space in the system setup. Thanks to full support for libcamera , Picamera2 , and the well-known rpicam apps, software integration is particularly easy.

The camera is available in four versions : standard or wide with 75° or 120° angles of view, respectively, each optionally available as a NoIR version for infrared applications. With a focus range of 5 cm to infinity (Wide) or 10 cm to infinity (Standard), it is versatile in applications ranging from quality control and automation to surveillance and embedded systems .

Important for long-term projects: The module is available at least until January 2030 , thus guaranteeing a high degree of planning security.

Product variants

The Raspberry Pi Camera Module 3 Sensor Assembly is available in four versions, each as a standard or wide version with or without an infrared filter (NoIR):

variant

Focus area

Viewing angle (diag.)

aperture

Infrared filter

standard

10 cm – ∞

75°

F1.8

Integrated

Standard NoIR

10 cm – ∞

75°

F1.8

not applicable

Wide

5 cm – ∞

120 °

F2.2

Integrated

Wide NoIR

5 cm – ∞

120 °

F2.2

not applicable

Technical data

Technical feature

specification

sensor

Sony IMX708, 11.9 MP (4608 × 2592 pixels)

Sensor diagonal

7.4 mm

Pixel size

1.4 µm × 1.4 µm

HDR support

Yes (High Dynamic Range)

PDAF (autofocus)

Phase detection autofocus

Output format

RAW10

Video modes

1080p50, 720p100, 480p120

Operating temperature

0 °C to 50 °C

Interfaces

CSI-2, FPC cable

Software support

libcamera, Picamera2, rpicam-apps

Production runtime

Until at least January 2030

Scope of delivery

Included in delivery are:

  • Raspberry Pi Camera Module 3 Sensor Assembly (depending on the variant selected: Standard, Standard NoIR, Wide or Wide NoIR)

  • Note: Ribbon cable and mounting accessories are not included in delivery, as the product is designed as a sensor assembly (for integration into your own hardware)

Areas of application

Thanks to its compact design, solid image quality and long-term availability, the Camera Module 3 Sensor Assembly is particularly suitable for:

  • Industrial image processing (e.g. quality control, object measurement)

  • Machine control & automation (proximity focus in confined spaces)

  • Surveillance & security systems – Wide versions for comprehensive scene capture, NoIR versions for low-light/IR applications

  • Embedded systems & in-house developed OEM devices – saves installation space, enables individual integration

  • Research & Prototyping – get started quickly thanks to software support from libcamera/Picamera2

FAQ

Q: Is this assembly compatible with Raspberry Pi boards?
A: Yes – it uses the same software base (libcamera, Picamera2) as the regular Camera Module 3 and is compatible with Raspberry Pi computers.

Q: What does NoIR mean?
A: NoIR variants do not have an infrared cut filter and are therefore sensitive to infrared light – ideal for night vision or IR illumination scenarios.

Q: How long will the product be available?
A: The Raspberry Pi Camera Module 3 Sensor Assembly will be produced at least until January 2030, which provides planning security for B2B projects.

Raspberry Pi Camera Module 3 Sensor Product Description

Reference circuit diagram for the Raspberry Pi Camera Module 3

Assembly instructions

  • Mount the sensor assembly on a stable, non-conductive surface
  • Maintain ambient temperature 0–50 °C
  • Ensure adequate ventilation of the housing and cover to prevent overheating
  • Ensure protection against moisture and rapid temperature changes
  • Handle contacts and circuit board carefully to avoid mechanical or electrical damage

Notes

  • Operate only in dry environments (0–50 °C), no direct contact with conductive surfaces
  • Device should be secured or placed flat on a non-conductive surface during operation
  • In case of housing use, sufficient ventilation must be ensured
  • Avoiding rapid temperature changes is recommended to prevent condensation
  • Safe long-term operation through guaranteed production duration until at least January 2030
