Product features
CPU & GPU
- Processor: 1x NVIDIA Grace 72-core Neoverse V2 CPU (ARM-based)
- GPU: 1x NVIDIA Blackwell Ultra GPU
- MIG: Multi-instance GPU for up to 7 MIGs
- optional: 1x dedicated NVIDIA Blackwell GPU for graphics rendering, e.g. RTX Pro 2000 Blackwell
RAM
- total coherent memory: 748GB, linked via NVLink ®-C2C, at 900 GB/s interconnect bandwidth
- CPU memory: 496GB ECC LPDDR5X, 396 GB/s memory bandwidth
- GPU memory: 252GB ECC HBM3e, 7.1 TB/s memory bandwidth
Networking
- Dual-port QSFP112 400GbE LAN via NVIDIA ConnectX-8 SuperNIC (= 800 Gbit/s bandwidth total)
- 1x RJ45 1GbE Dedicated BMC LAN port
- 1x RJ45 10GbE LAN port
Storage
- 4x M.2 PCIe 5.0 x4 NVMe (M-key 2280)
- populated with 3x 2TB Phison SSDs - configurable
PCIe Slots
- 1x PCIe Gen 5 x16 FHFL double-width
- 2x PCIe Gen 5 x8 (in x16) FHHL
- 1x M.2 PCIe 5.0 x4 slot (E-Key 2230))

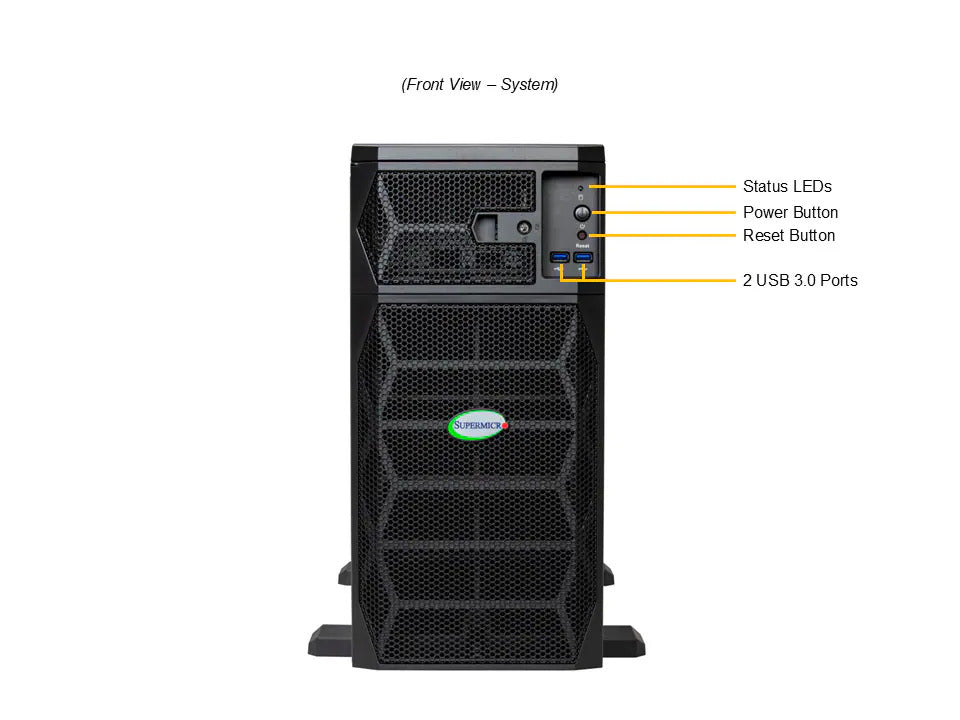

Front IO Ports and Connectors
- 2x USB 3.1 Type A
- power on/off button
- reset button
- HDD activity LED
- Power status LED

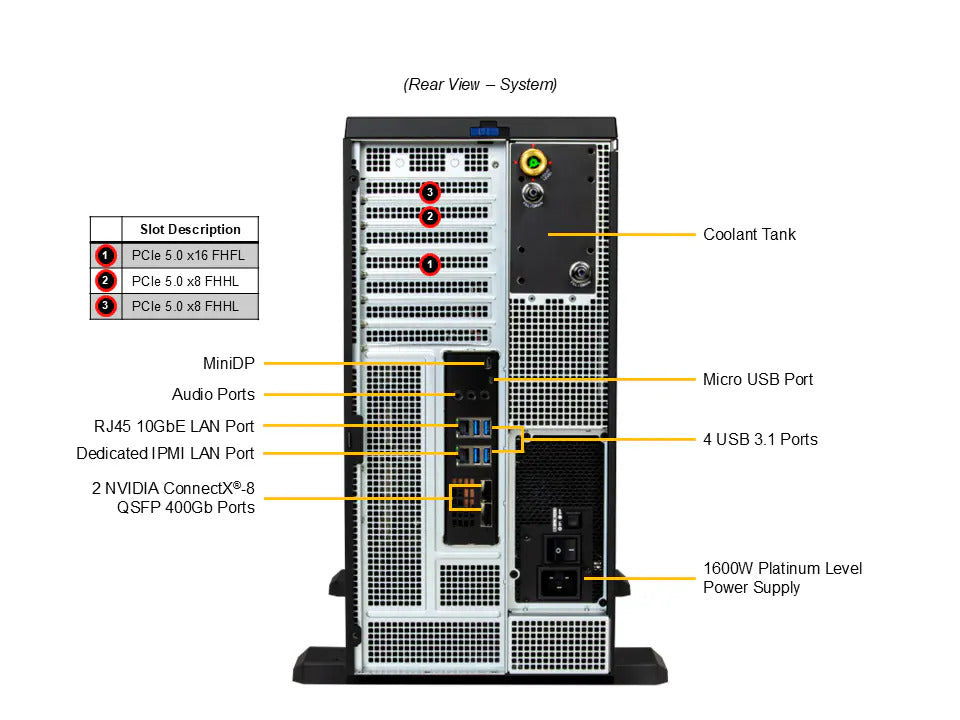

Rear IO Ports and Connectors
- 4x USB 3.1 Gen2 Type A (10 Gbit/s)
- 1x mini-DP (video port)
- audio ports (3 audio jacks)
OS & security
- security hardware: Silicon Root of Trust (RoT) – NIST 800-193 Compliant
- BIOS type: AMI 64MB SPI Flash EEPROM
- OS: Ubuntu 24.04 LTS with NVIDIA AI Developer Tools
Dimensions, weight, form factor
- Form factor: 5U rack-mountable desktop tower
- height: 8.6" (218.4 mm)
- width: 17.9" (454.7 mm)
- depth: 27.6" (701 mm)
- package: 25.8" (H) x 15.3" (W) x 37.6" (D)
- gross weight: 112.4 lbs (51 kg)
- net weight: 88 lbs (40 kg)
System cooling
- cooling system: closed-loop liquid cooling (suitable for office use)
- liquid cooling: Direct to Chip (D2C) Cold Plate
- 2 x 120mm Fans
- 1x 80mm Fan
- 1x 60mm Fan
- 1x 40mm Fan
Power supply
- power supply: 1x 1600W Titanium Level (94%) power supply, 100 - 240V
- power input @ 1300W: 100-114Vac / 50-60Hz
- power input @ 1600W: 115-240Vac / 50-60Hz
Misc
- color: black front + black body
- operating temperature: 10°C to 25°C (50°F to 77°F)
- storage temperature: -40°C to 60°C (-40°F to 140°F)
- operating relative humidity: 8% to 90% (non-condensing)
- storage relative humidity: 5% to 95% (non-condensing)
AI performance
- FP4 Tensor core: 20 PFLOPS / 15 PFLOPS without sparsity
- FP8 / FP6 Tensor core: 10 PFLOPS
- Int8 Tensor Core: 330 TOPS
- FP16/BF16 Tensor Core: 5 PFLOPS
- TF32 Tensor Core: 2.5 PFLOPS
- FP32: 80 TFLOPS
- FP64 / FP64 Tensor Core: 1.3 TFLOPS
Product description
Supermicro offers a special feature: You can use their DGX Station version at your desk, or mount it into a rack with the optional Supermicro DGX Station rack mounting kit.
Datasheets, manuals and additional downloads
Additional SKUs and codes
- ARS-511GD-NB-LCC
- ARS-511GD-NB-LCC-01-G2 = Gold Series version with pre-configured components
- Chassis model: CSE-759TS-R0CNBP
- Motherboard: Super GPU-NVGB300-WSHPM
